Key Reminder: Notes

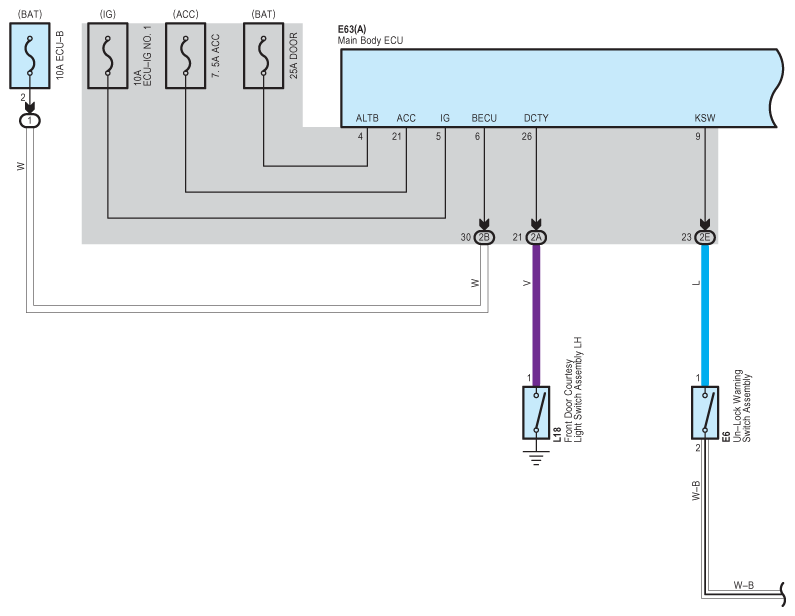

Fig 1: Key Reminder Wiring Diagram (1 Of 2)
G09105949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

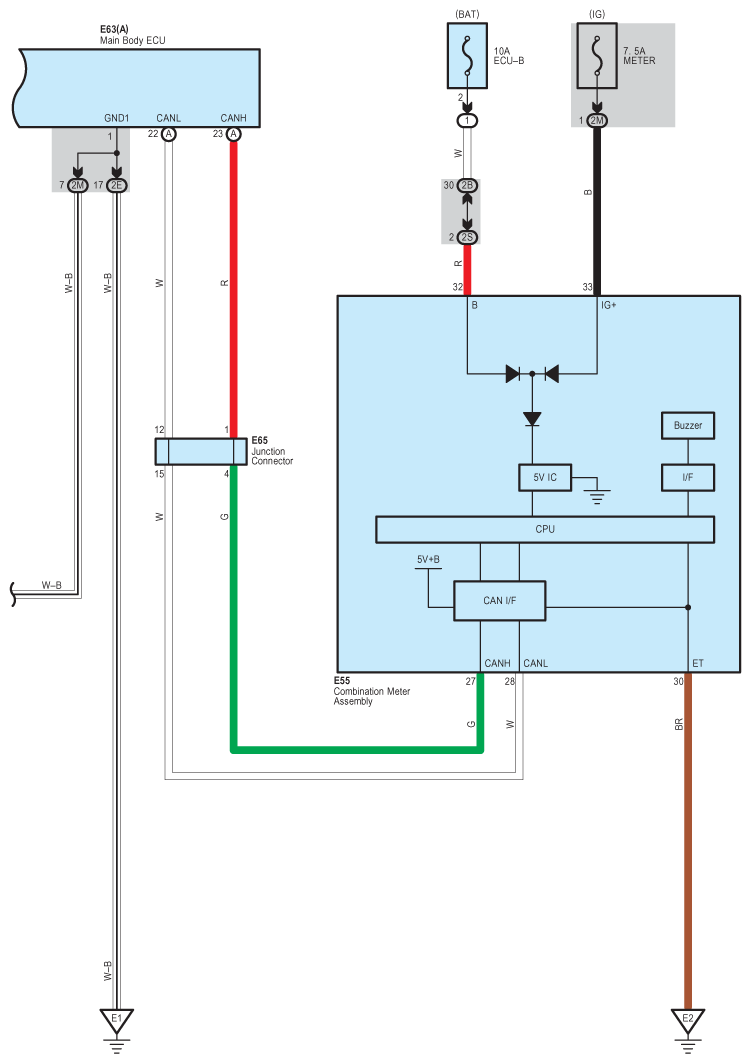

Fig 2: Key Reminder Wiring Diagram (2 Of 2)
G09105950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
