Light Reminder: Notes

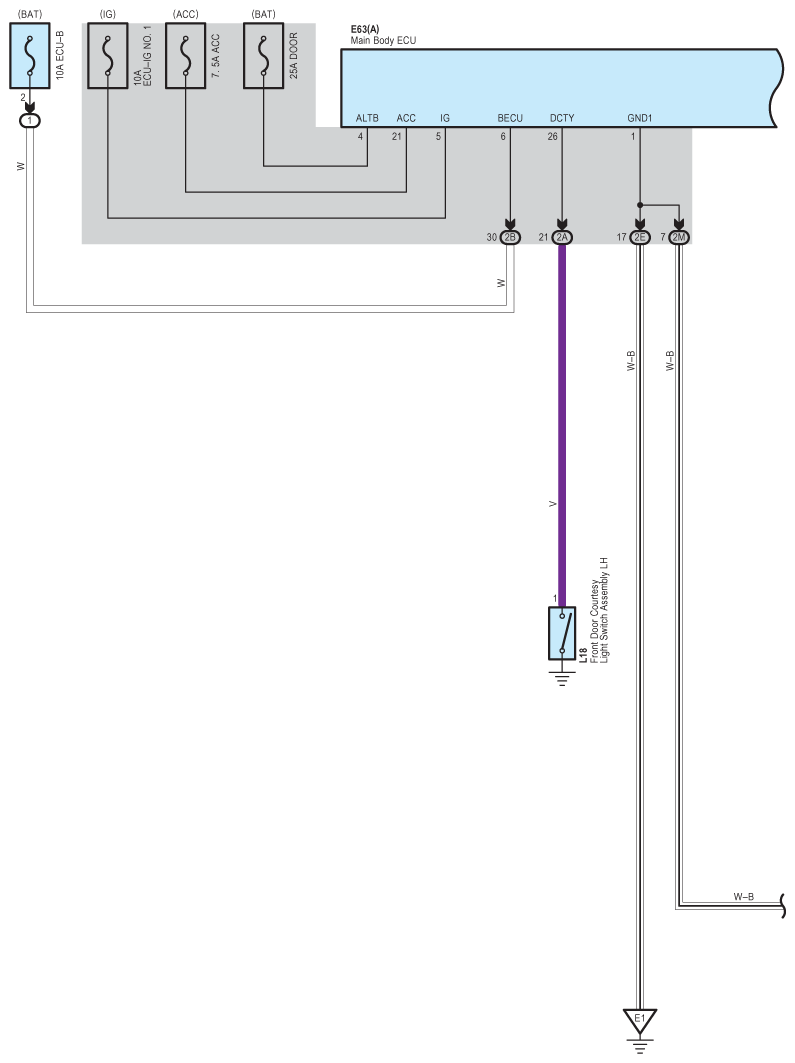

Fig 1: Light Reminder Wiring Diagram (1 Of 2)
G09105951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

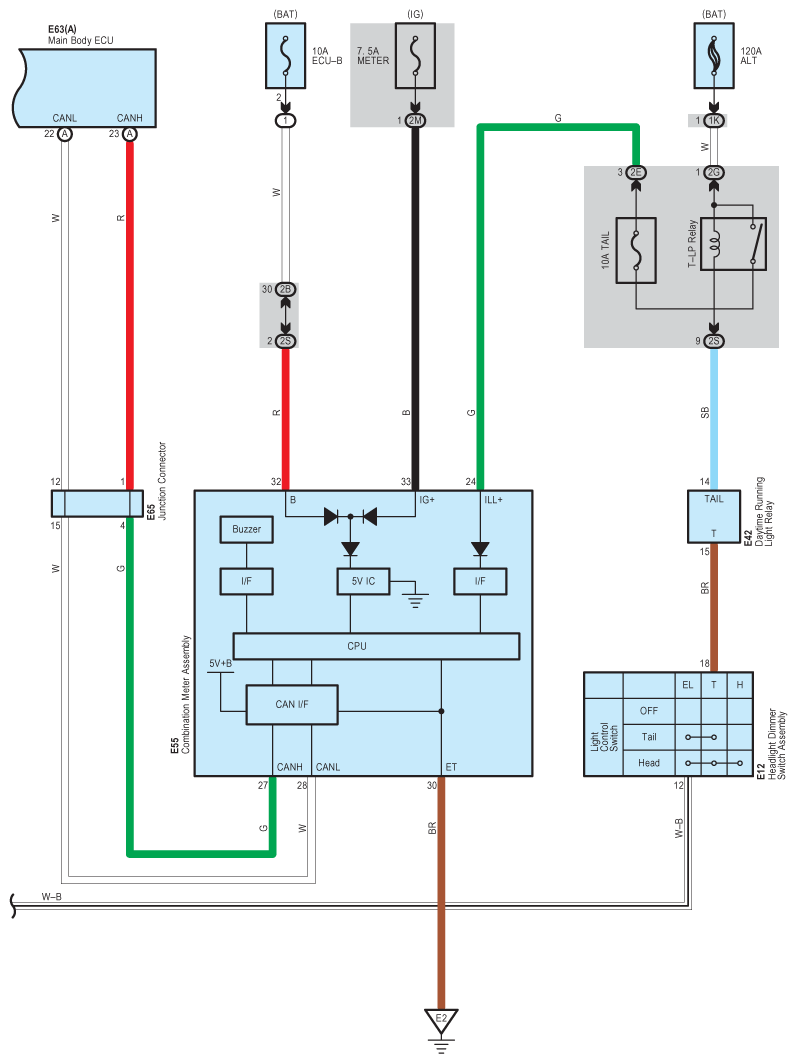

Fig 2: Light Reminder Wiring Diagram (2 Of 2)
G09105952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
