Air Fuel Ratio Sensor: Components: Illustration

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components And Torque Specifications
GTY244689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

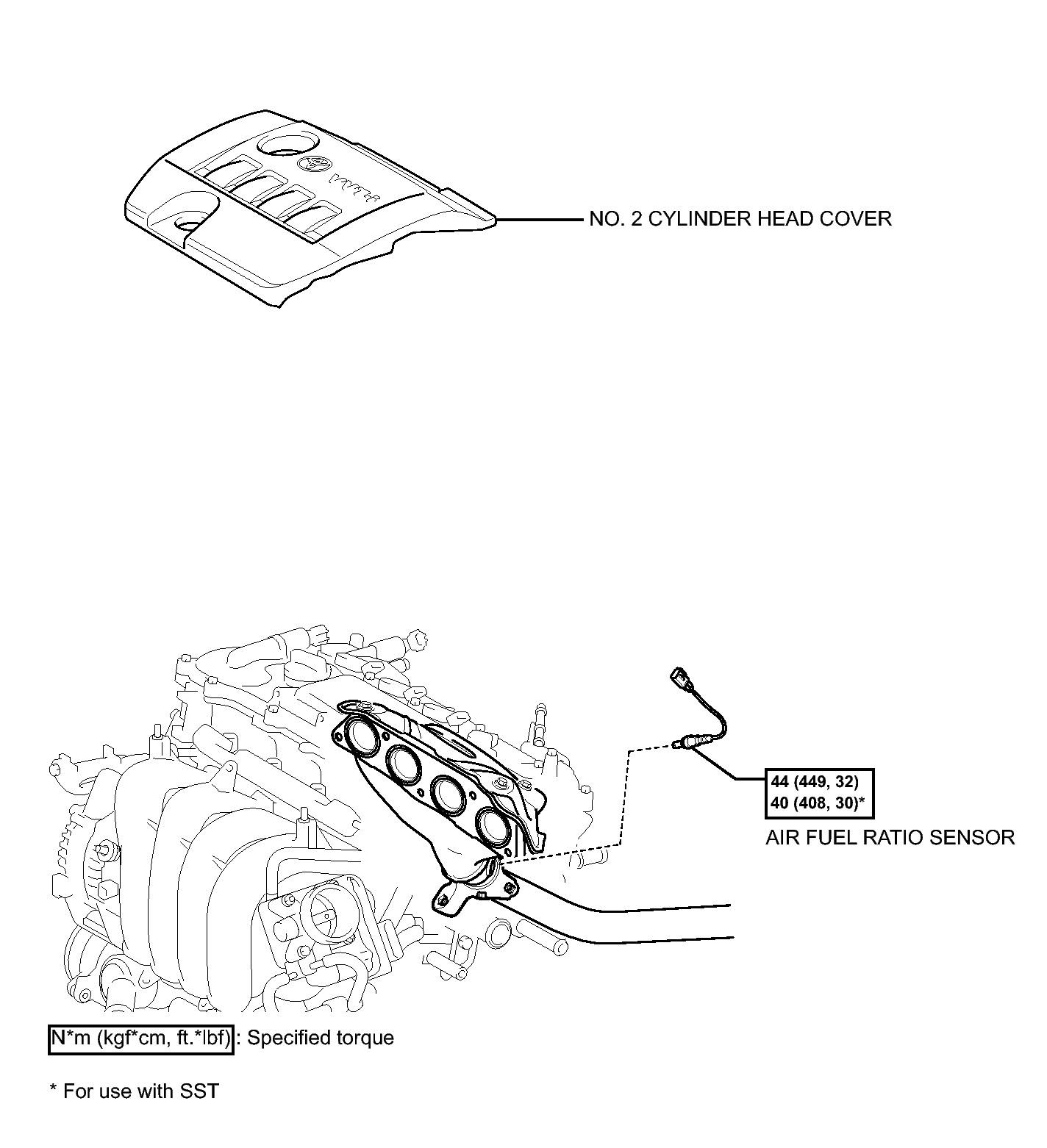

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY294089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
