Engine Control System (2ZR-FE) (Service Information): ECM: Installation: Installation

1. Install the 2 ECM brackets onto the ECM with the 4 screws.

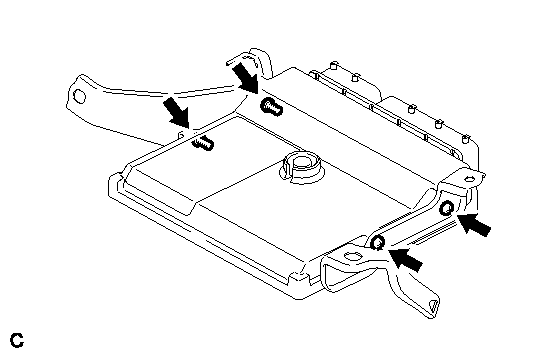

   Fig 1: Locating Screws And ECM Brackets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)

2. Install the ECM with the 3 bolts.

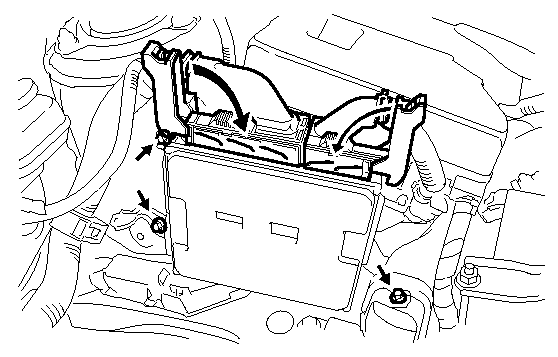

   Fig 2: Locating Bolts And ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect the 2 ECM connectors.
   1. Connect the 2 ECM connectors and lower the 2 levers.
      NOTE:

      • When connecting the connectors, make sure that dirt, water or other foreign matter does not get caught between the connectors and other parts.
      • Make sure that the 2 levers are securely locked.
4. Install the wire harness clamp.

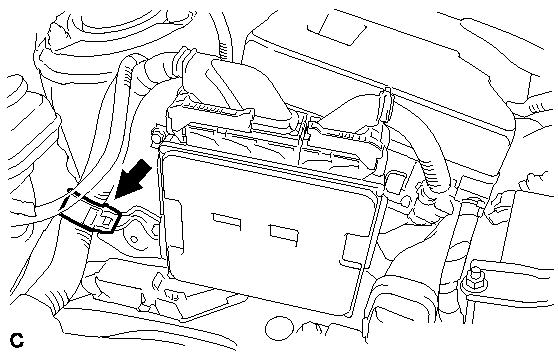

   Fig 3: Locating Wire Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INITIALIZATION .
