Integration Relay: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE INTEGRATION NO. 1 RELAY
    1. Remove the No. 1 relay block cover.
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and then pull the integration relay out of the No. 1 relay block.
      Fig 1: Removing Integration Relay
      GTY194576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors and remove the integration relay.

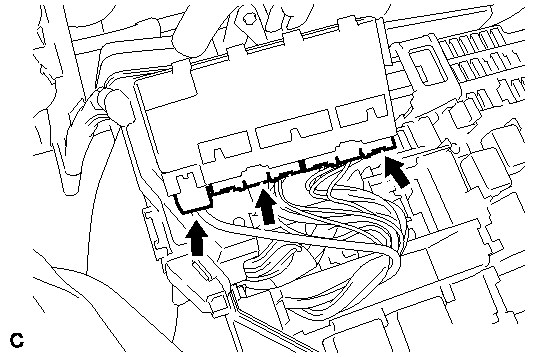

      Fig 2: Locating Connectors
      GTY183321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
