Knock Sensor: Components: Illustration

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications
GTY238348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

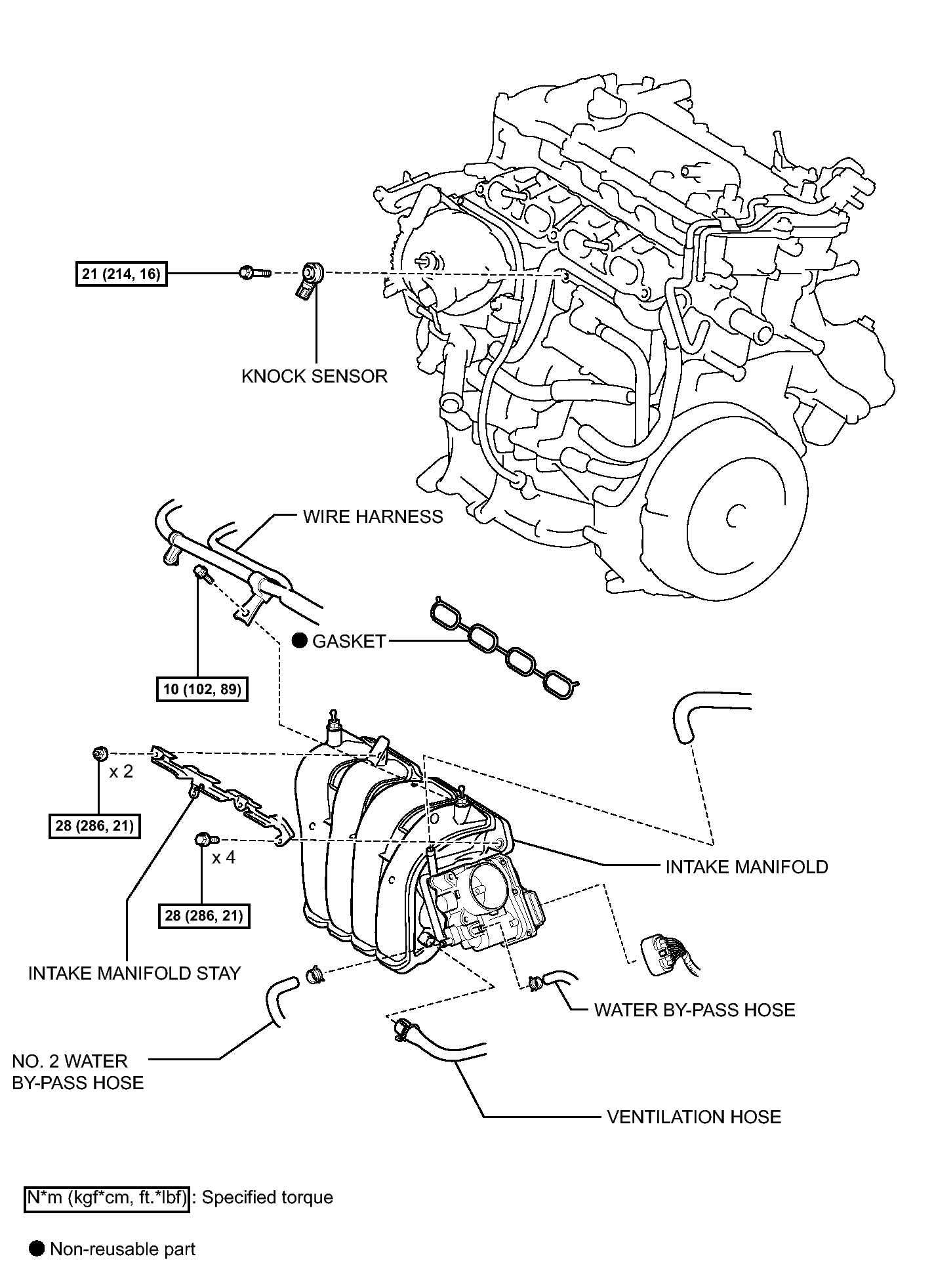

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications
GTY238400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
