Crankshaft Position Sensor: Inspection: Inspection

INSPECT CRANKSHAFT POSITION SENSOR

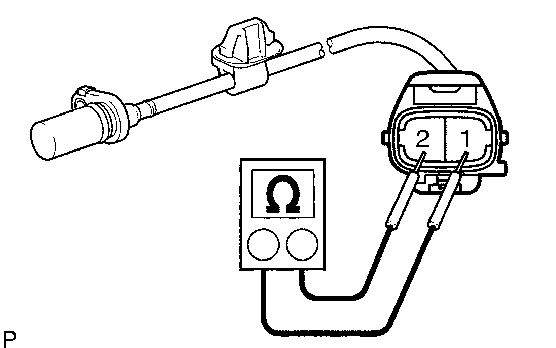

Fig 1: Inspecting Crankshaft Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance.

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 2	Cold	985 to 1600 Ω
1 - 2	Hot	1265 to 1890 Ω

HINT:

In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).

If the resistance is not as specified, replace the crankshaft position sensor.
