Engine Control System (2AZ-FE) (Service Information): ECM: Components: Illustration

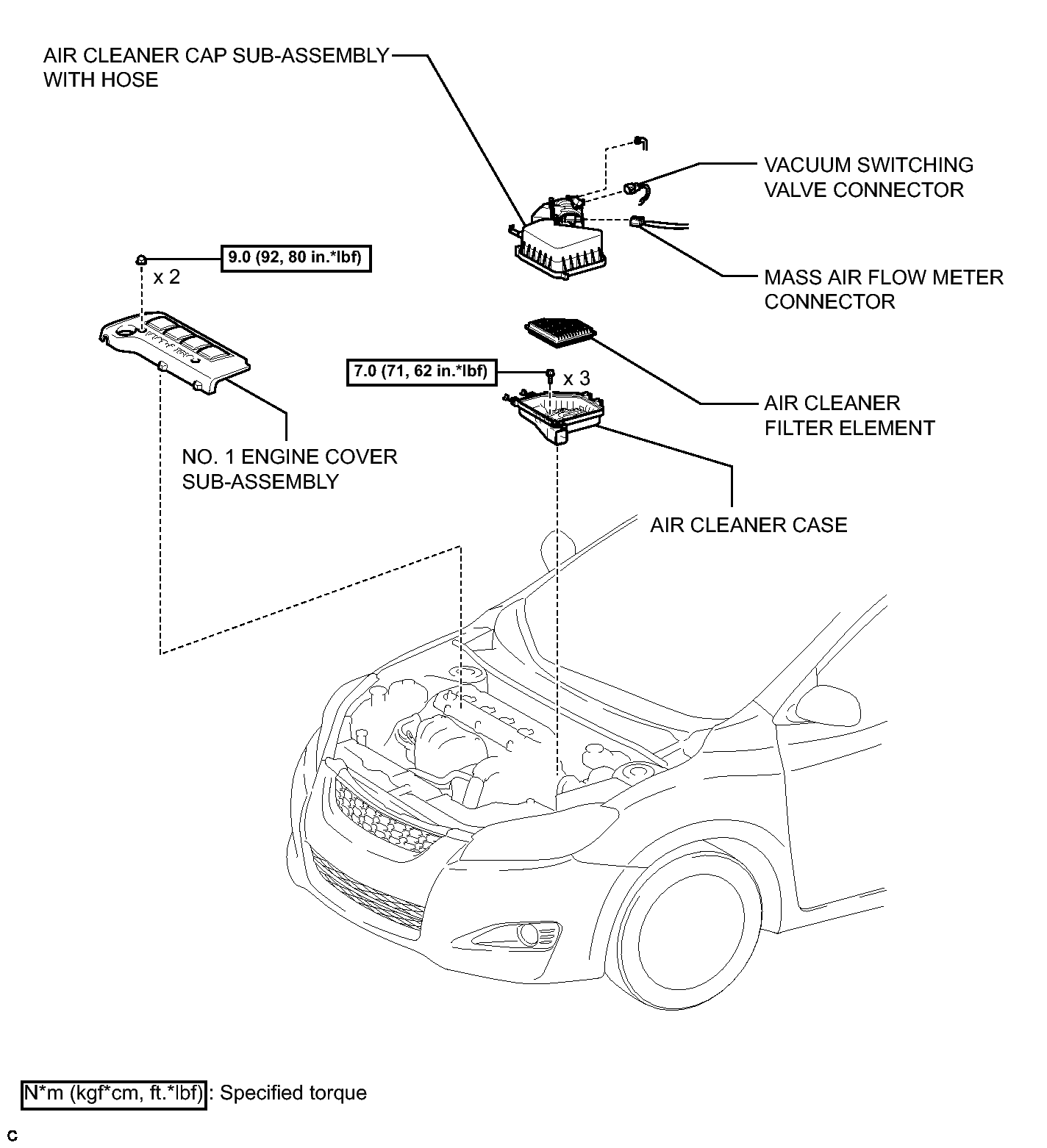

Fig 1: Identifying ECM Replacement Components With Torque Specifications (1 Of 2)
GTY238350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

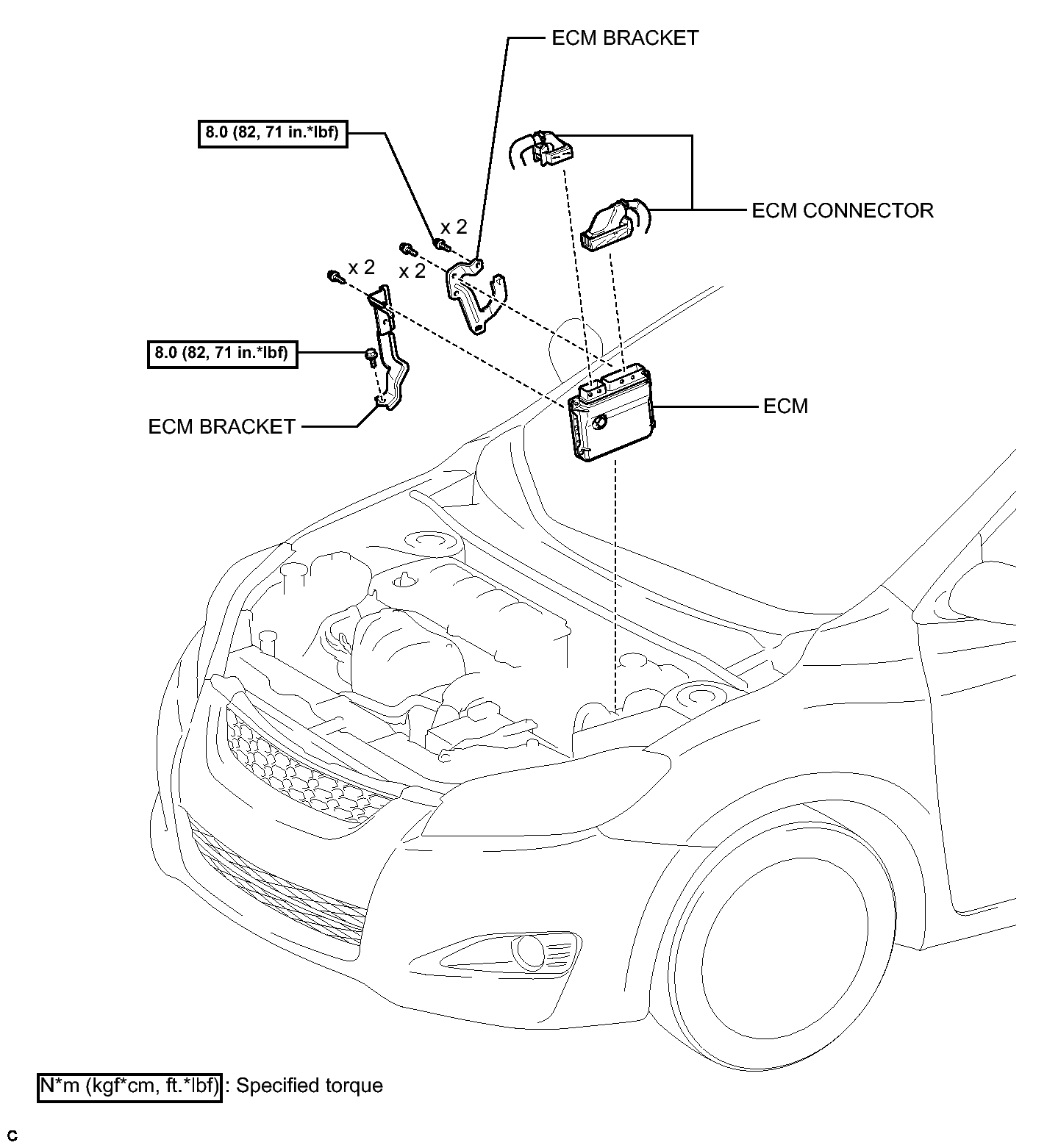

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 Of 2)
GTY238354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
