Ignition Coil And Spark Plug: Installation: Installation

INSTALL SPARK PLUG
1. Install the 4 spark plugs.

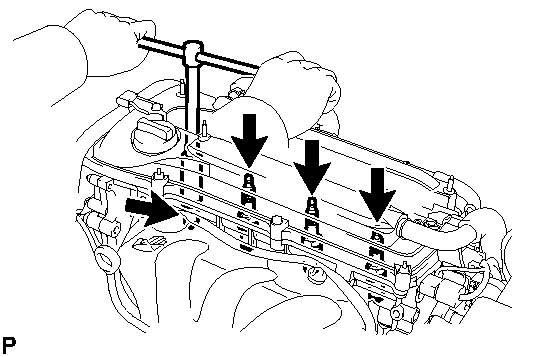

  Fig 1: Remove/Install Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.

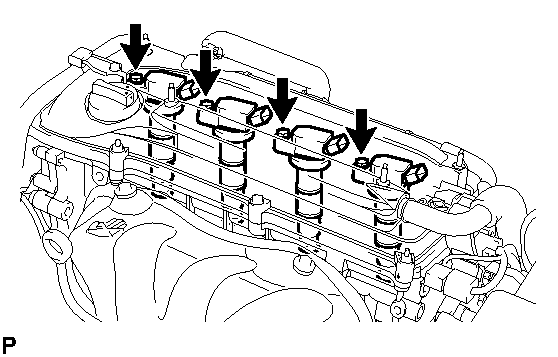

  Fig 2: Locating Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
2. Connect the 4 ignition coil connectors.

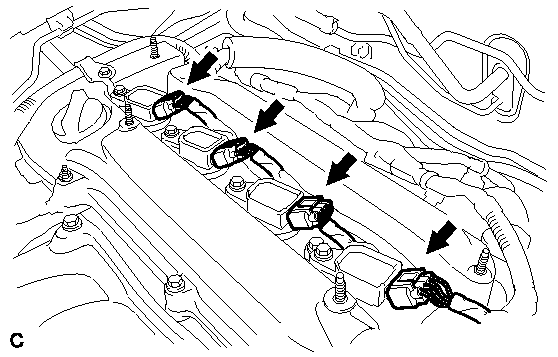

  Fig 3: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 93
