Mass Air Flow Meter: Removal: Removal

  1. REMOVE MASS AIR FLOW METER
    1. Disconnect the mass air flow meter connector.

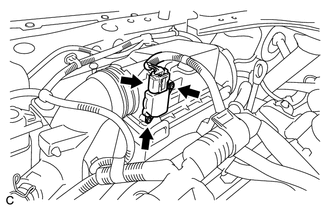

      Fig 1: Mass Air Flow Meter Connector
      GTY338376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and the mass air flow meter.
