Throttle Body: Inspection: Inspection

INSPECT THROTTLE BODY ASSEMBLY

Measure the resistance according to the value(s) in the table below.

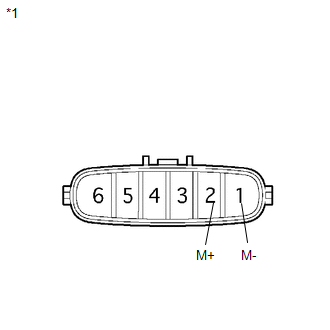

Fig 1: Identifying Throttle Body Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Component without harness connected (Throttle Body)

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω

If the result is not as specified, replace the throttle body assembly.
