Engine Control System (Service Information) (Plug-In): ECM: Installation: Installation

  1. INSTALL ECM
    1. Install the ECM with the 2 bolts.
      Fig 1: Identifying ECM Brackets & Bolts
      GTY216016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    2. Install the 3 wire harness clamps.

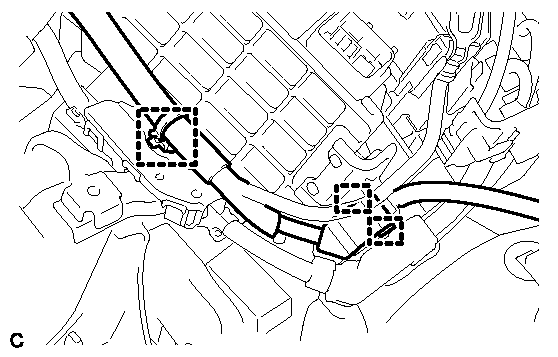

      Fig 2: Identifying Wire Harness Clamps
      GTY229016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 2 ECM connectors.
      1. Connect the 2 ECM connectors and lower the 2 levers.

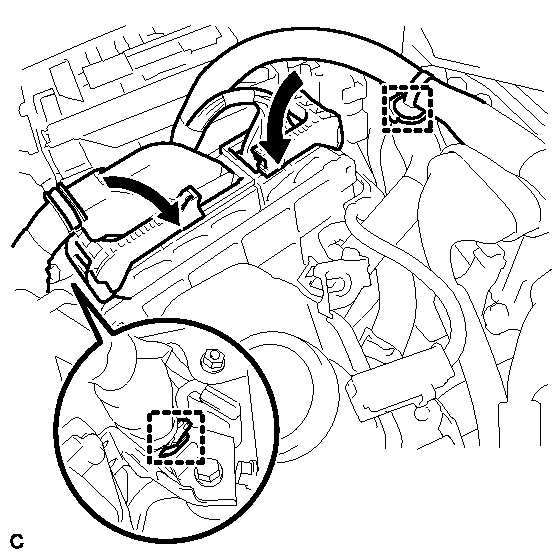

        Fig 3: Identifying ECM Connectors & Lower Levers
        GTY227210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • When connecting the connectors, make sure that dirt, water or other foreign matter does not get caught between the connectors and other parts.
        • Make sure that the 2 levers are securely locked.
      2. Install the 2 wire harness clamps.
    4. Install the No. 2 engine room wire with the bolt.
      Fig 4: Identifying No. 2 Engine Room Wire & Bolt
      GTY217858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    5. Slide the side cover down and engage the 2 claws to install it.

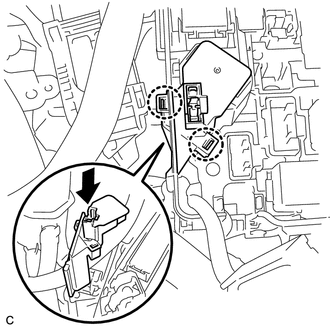

      Fig 5: Identifying Side Cover & Claws
      GTY220815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Slide the engine room wire harness down and engage the 2 claws to install it.

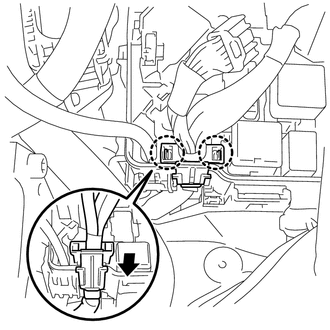

      Fig 6: Identifying Engine Room Wire Harness & Claws
      GTY234113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the 3 wire harness connectors.
      Fig 7: Identifying ECM No. 1 Relay Block Cover & Wire Harness Connectors
      GTY218278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the No. 1 relay block cover.
  2. INSTALL INVERTER RESERVE TANK ASSEMBLY
    1. Install the inverter reserve tank assembly with the 2 bolts.
      Fig 8: Identifying Radiator Reservoir Tank Assembly & Bolts
      GTY216300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  3. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  4. INSTALL DECK FLOOR BOX RH  . Refer to INSTALLATION - Step 54
  5. INSTALL REAR NO. 3 FLOOR BOARD  . Refer to INSTALLATION - Step 55
