Ignition Coil And Spark Plug: Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK
1. Remove the windshield wiper motor and link. Refer to REMOVAL .
REMOVE COWL BODY MOUNTING REINFORCEMENT LH . Refer to REMOVAL - Step 5
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 6
REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 29
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 4 ignition coil connectors.

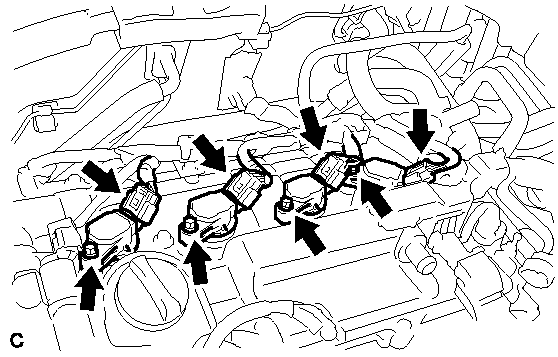

  Fig 1: Identifying Ignition Coil Connectors & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and 4 ignition coils.
  NOTE:
  When removing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.
REMOVE SPARK PLUG
1. Using a 14 mm spark plug wrench, remove the 4 spark plugs.

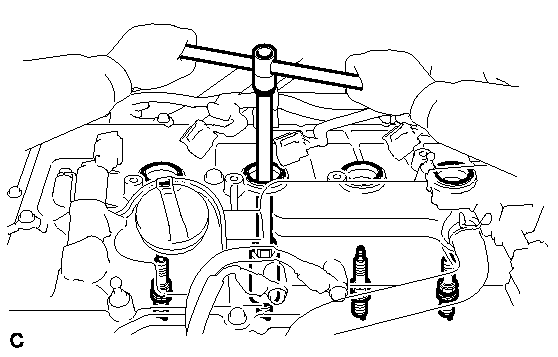

  Fig 2: Identifying Spark Plug Wrench & Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
