Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE EGR WITH COOLER PIPE SUB-ASSEMBLY
    1. Remove the EGR with cooler pipe sub-assembly. Refer to REMOVAL .
  2. REMOVE INVERTER RESERVE TANK ASSEMBLY  See step  5
  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.
    2. Remove the engine coolant temperature sensor.

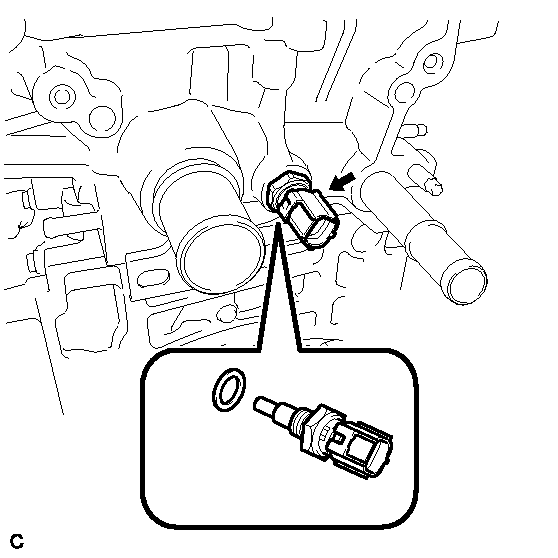

      Fig 1: Identifying E.F.I. Engine Coolant Temperature Sensor, Connector & O-Ring
      GTY212950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
