Skid Control Buzzer: Installation: Installation

  1. INSTALL SKID CONTROL BUZZER ASSEMBLY
    1. Connect the skid control buzzer connector.

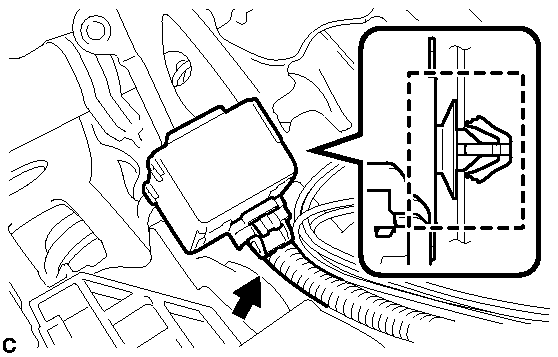

      Fig 1: Identifying Skid Control Buzzer Assembly & Connector
      GTY236263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the skid control buzzer assembly.
  2. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    HINT:

    Refer to the instructions for Installation of the Upper Instrument Panel Sub-assembly. Refer to INSTALLATION .
