OEM System Circuits (Except Plug-In): DLC3: Notes

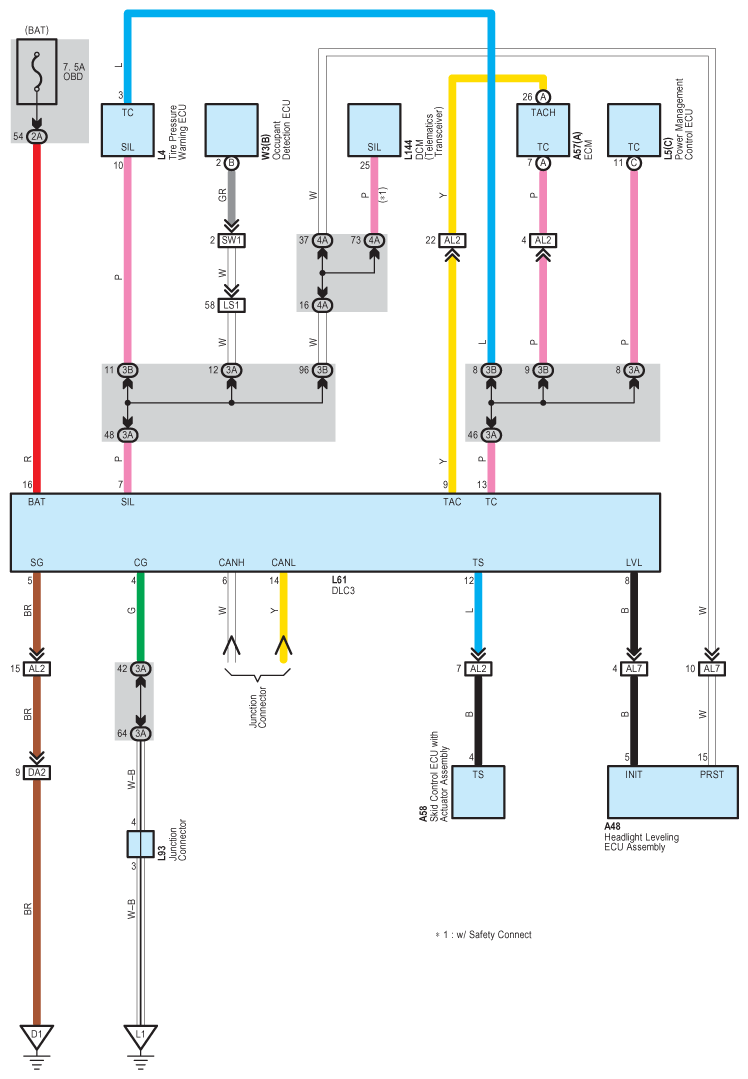

Fig 1: DLC3 Wiring Diagram
G09099386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
