OEM System Circuits (Except Plug-In): Horn: Notes

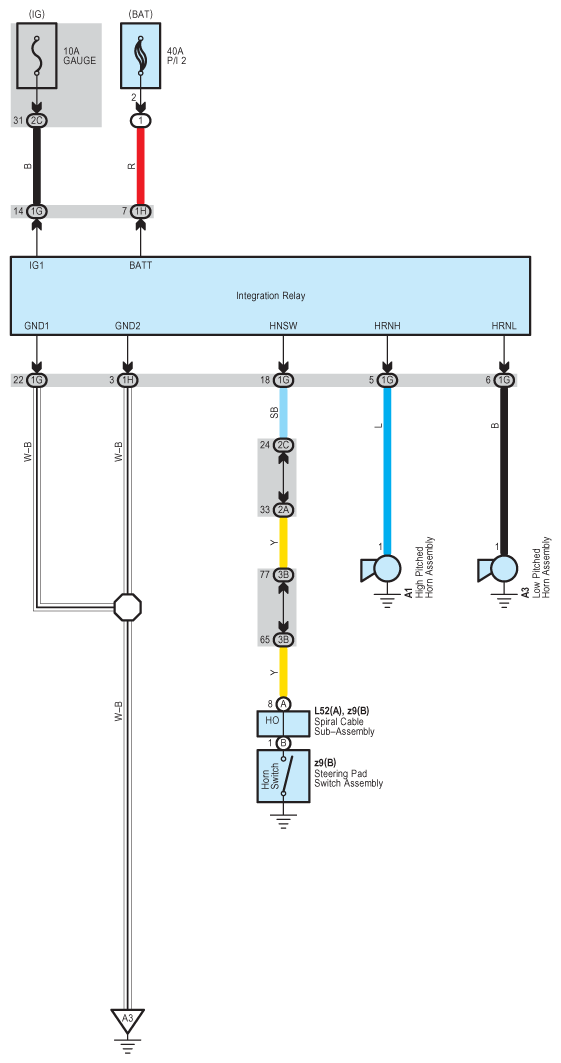

Fig 1: Horn System Wiring Diagram
G09099499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
