Hybrid System and Shift Control System: Notes

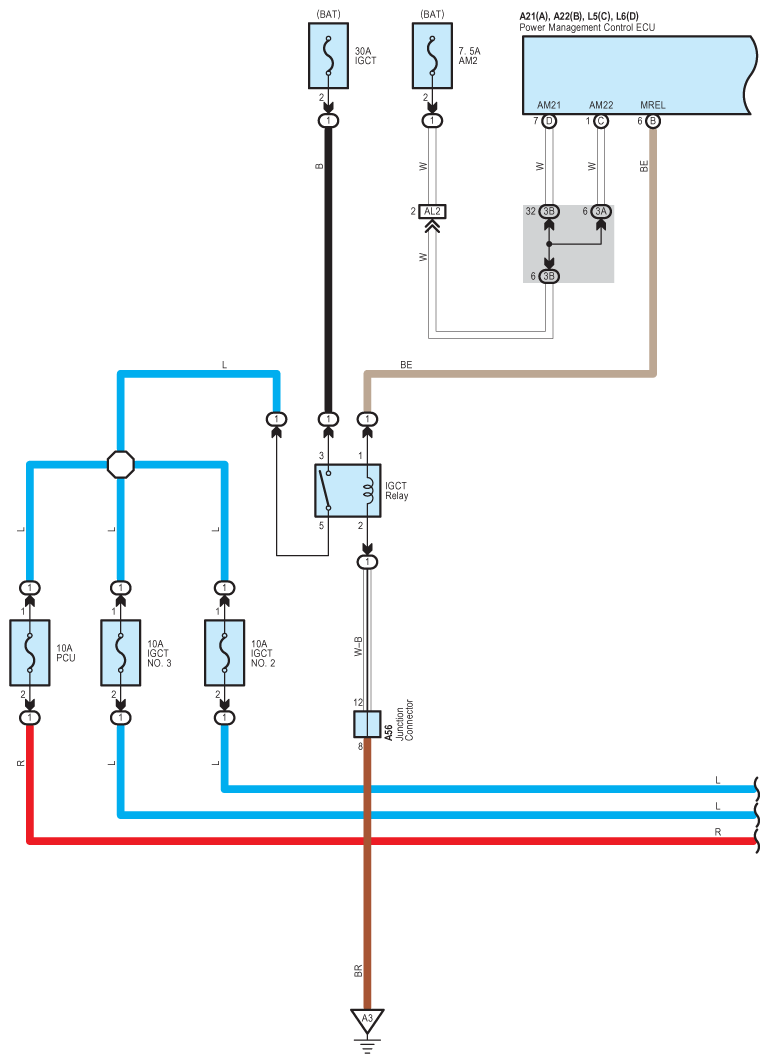

Fig 1: Hybrid System And Shift Control System Wiring Diagram (1 Of 28)

G09099305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

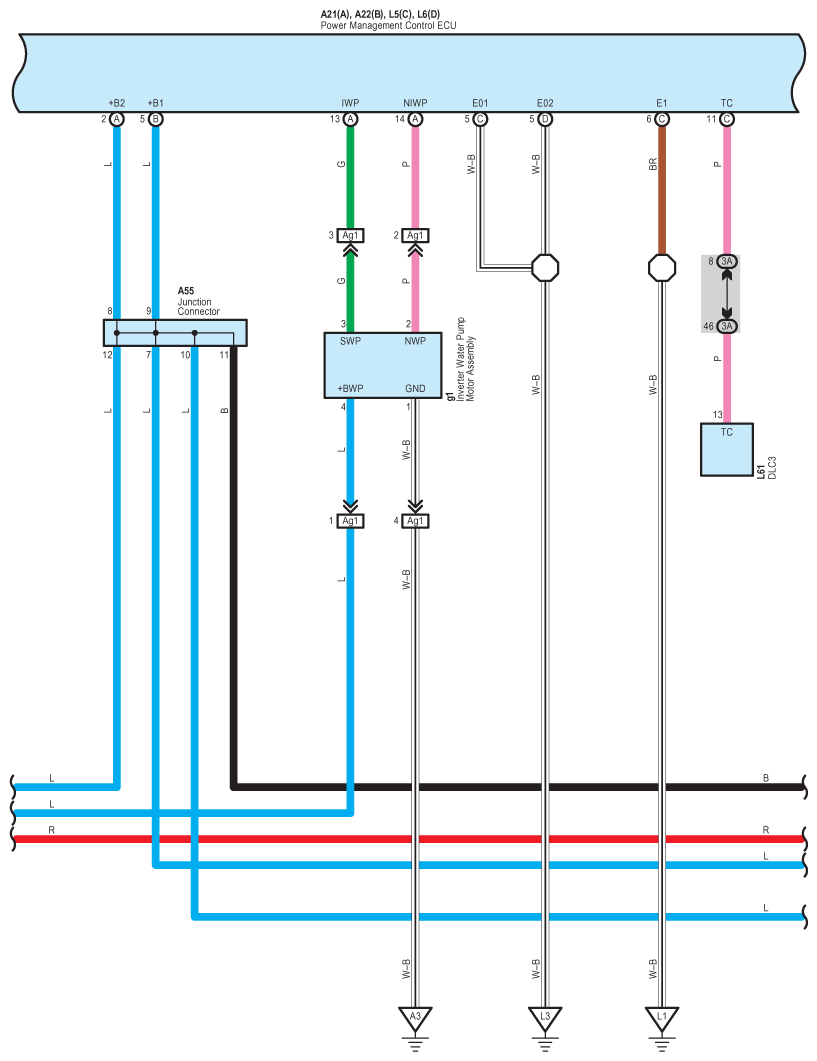

Fig 2: Hybrid System And Shift Control System Wiring Diagram (2 Of 28)

G09099306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

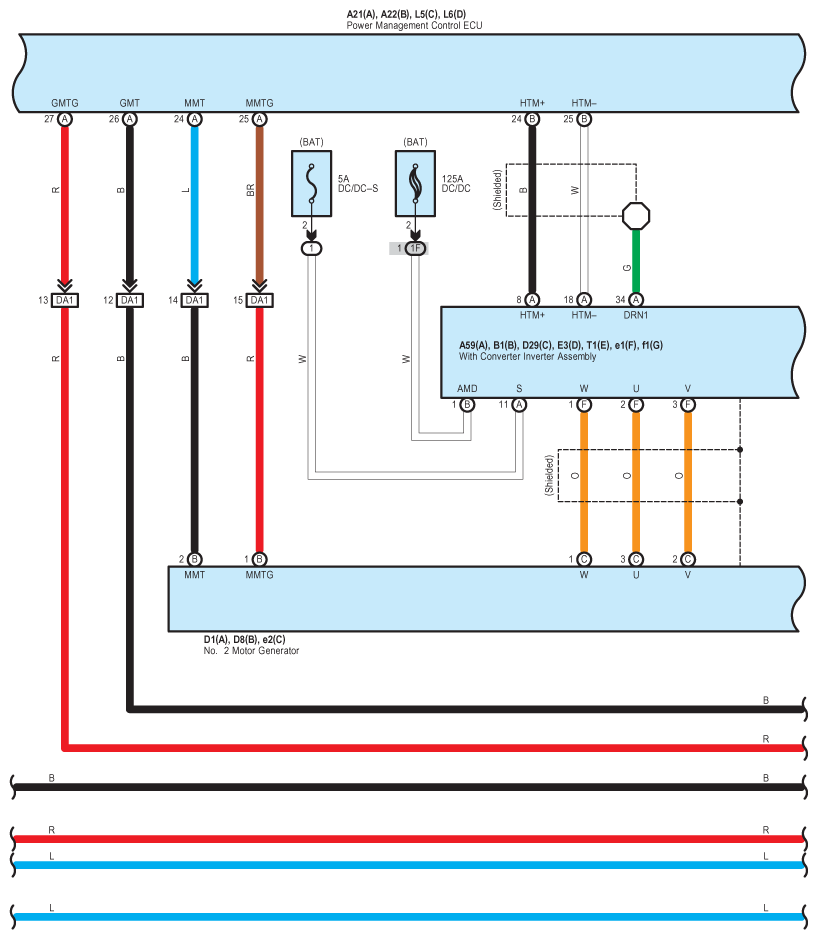

Fig 3: Hybrid System And Shift Control System Wiring Diagram (3 Of 28)

G09099307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

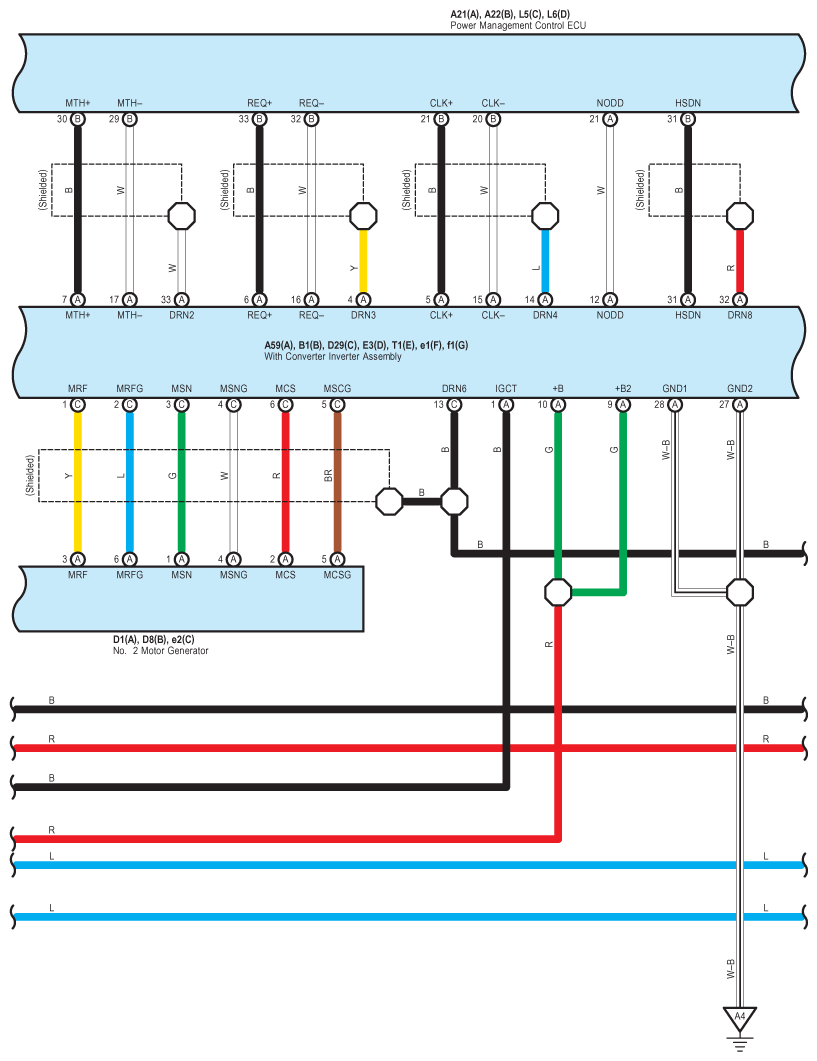

Fig 4: Hybrid System And Shift Control System Wiring Diagram (4 Of 28)

G09099308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

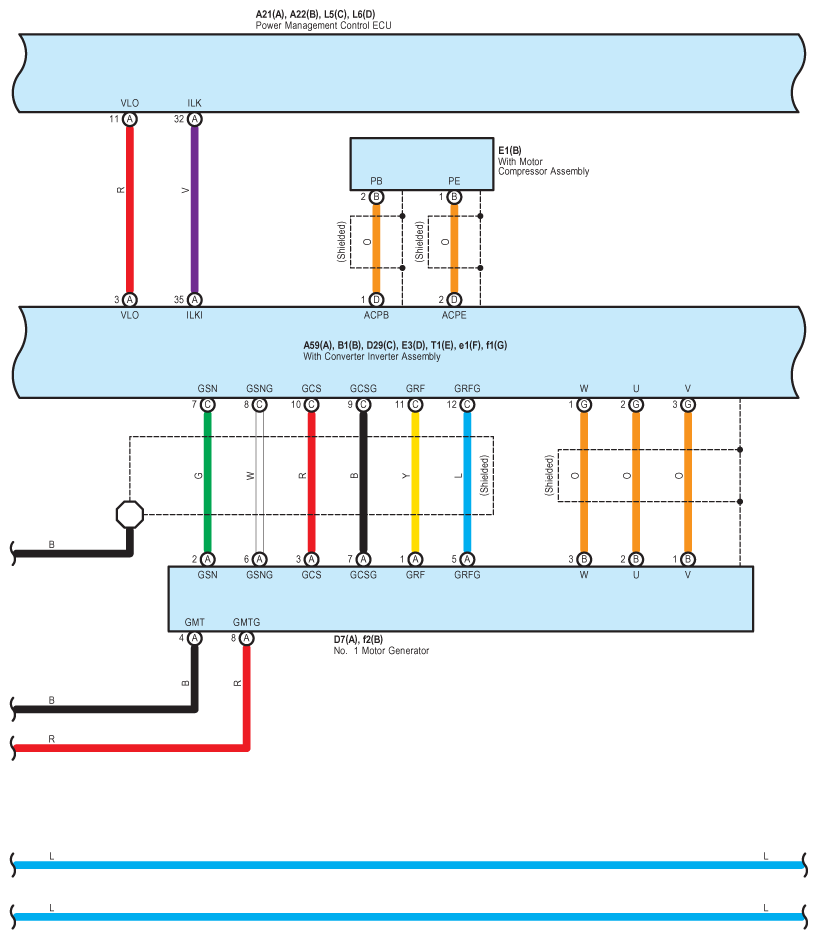

Fig 5: Hybrid System And Shift Control System Wiring Diagram (5 Of 28)

G09099309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

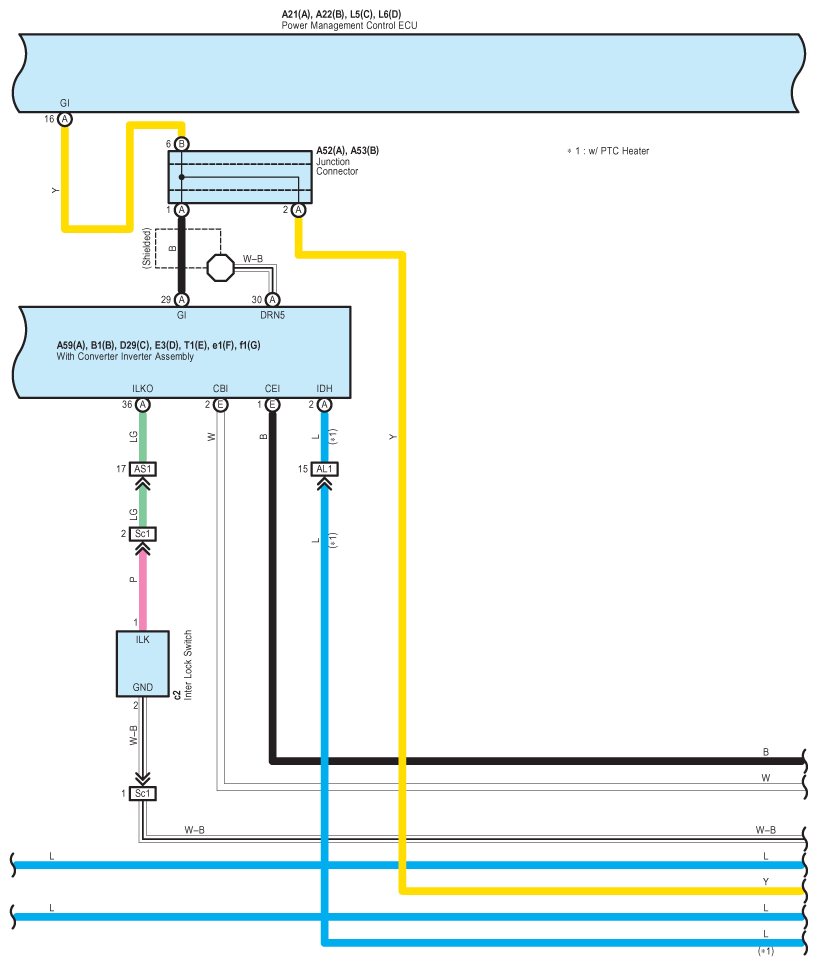

Fig 6: Hybrid System And Shift Control System Wiring Diagram (6 Of 28)

G09099310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

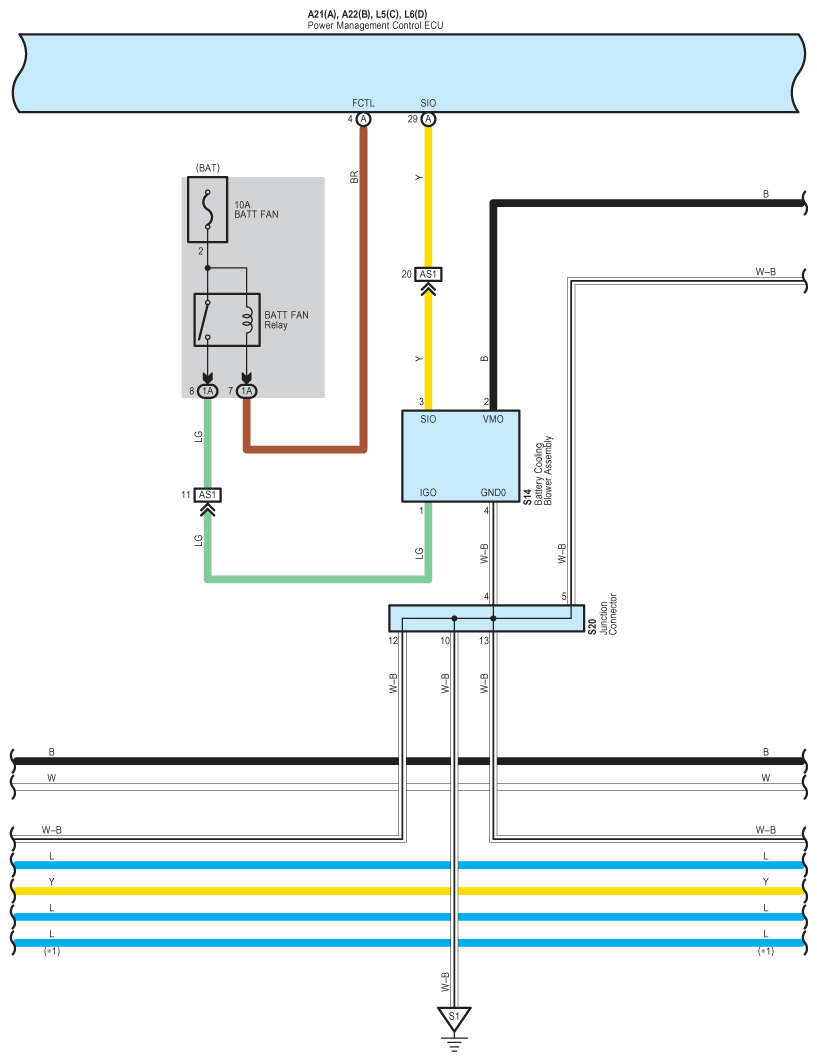

Fig 7: Hybrid System And Shift Control System Wiring Diagram (7 Of 28)

G09099311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

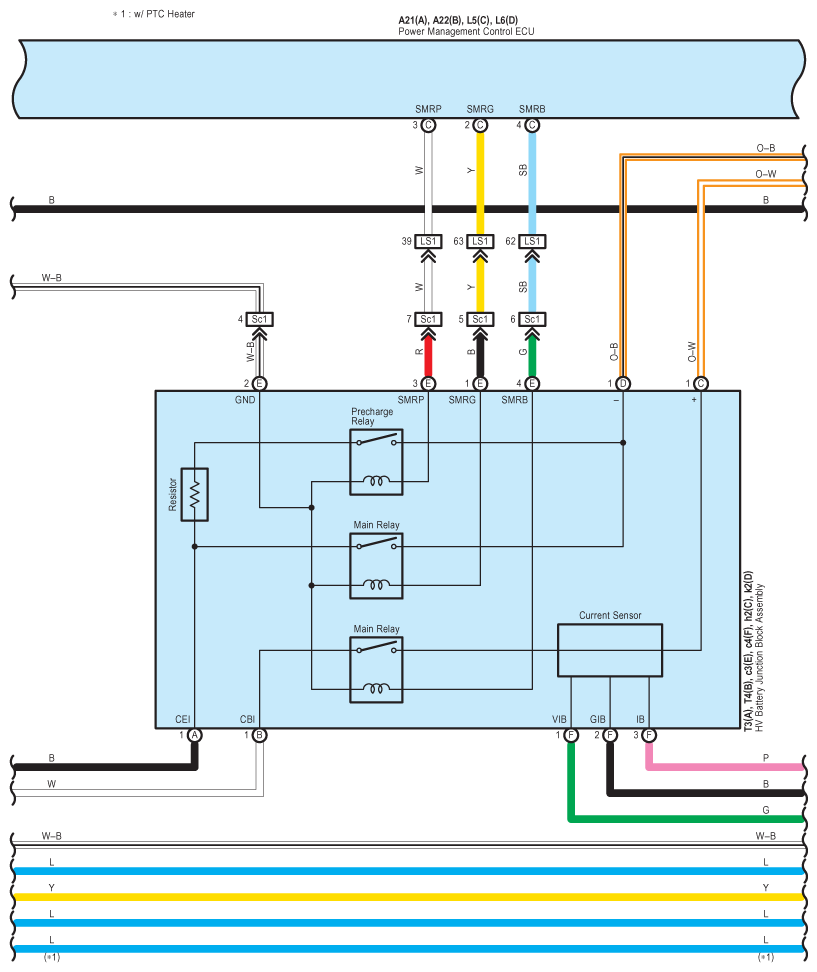

Fig 8: Hybrid System And Shift Control System Wiring Diagram (8 Of 28)

G09099312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

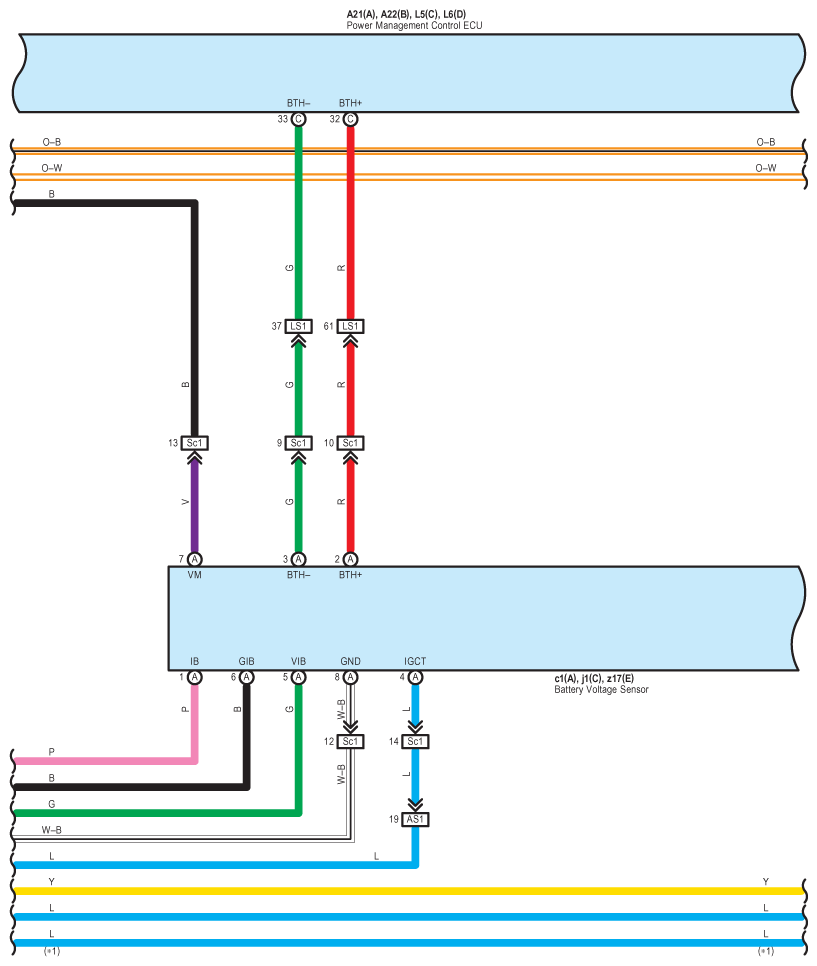

Fig 9: Hybrid System And Shift Control System Wiring Diagram (9 Of 28)

G09099313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

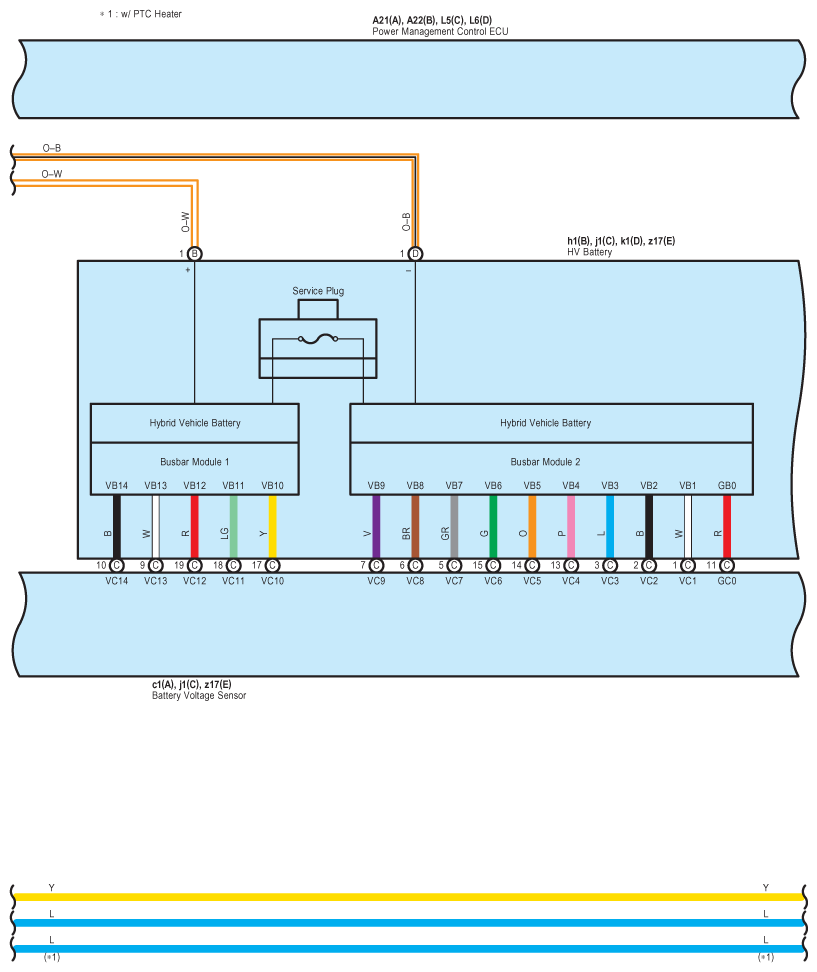

Fig 10: Hybrid System And Shift Control System Wiring Diagram (10 Of 28)

G09099314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

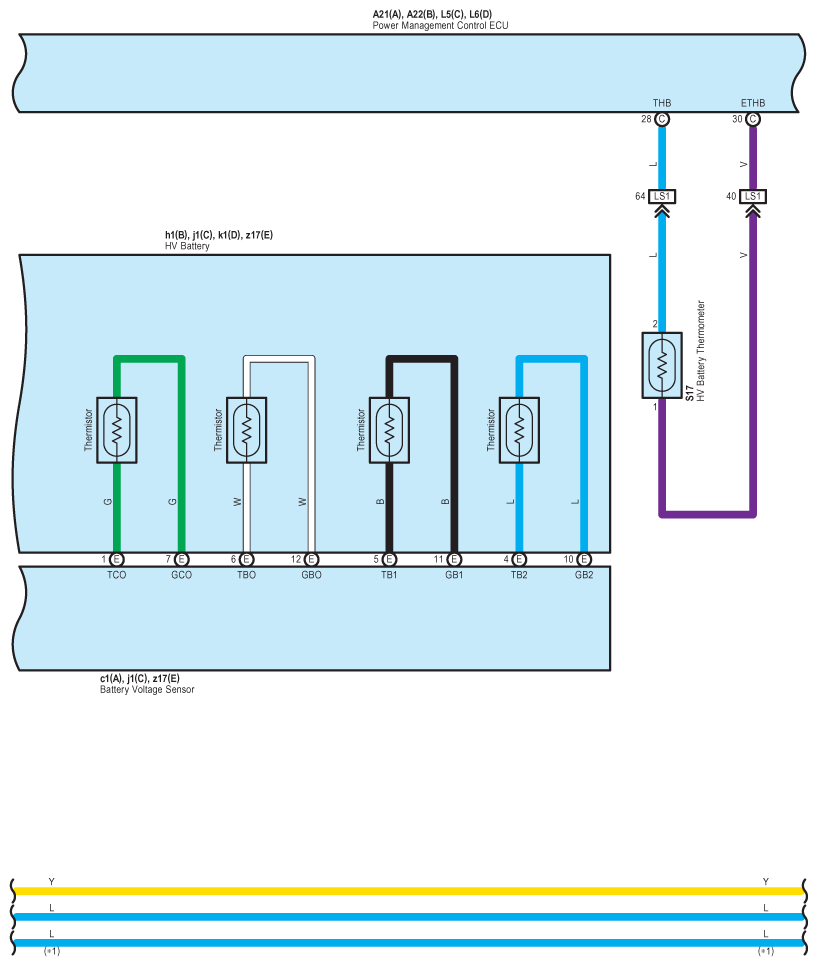

Fig 11: Hybrid System And Shift Control System Wiring Diagram (11 Of 28)

G09099315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

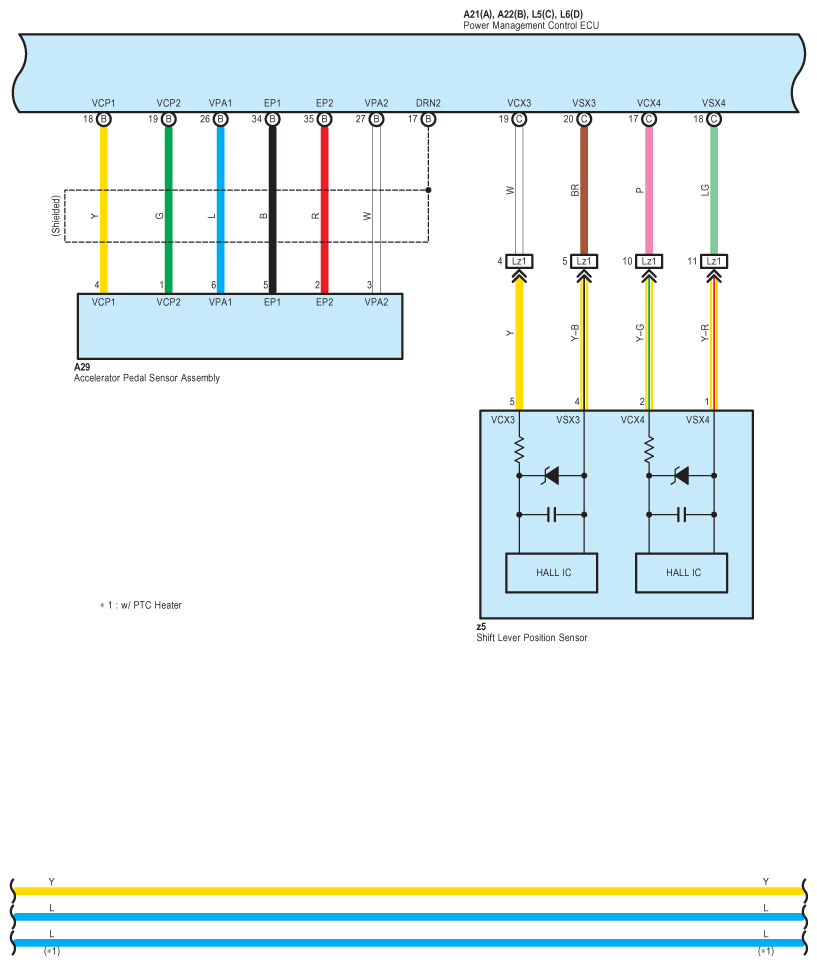

Fig 12: Hybrid System And Shift Control System Wiring Diagram (12 Of 28)

G09099316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

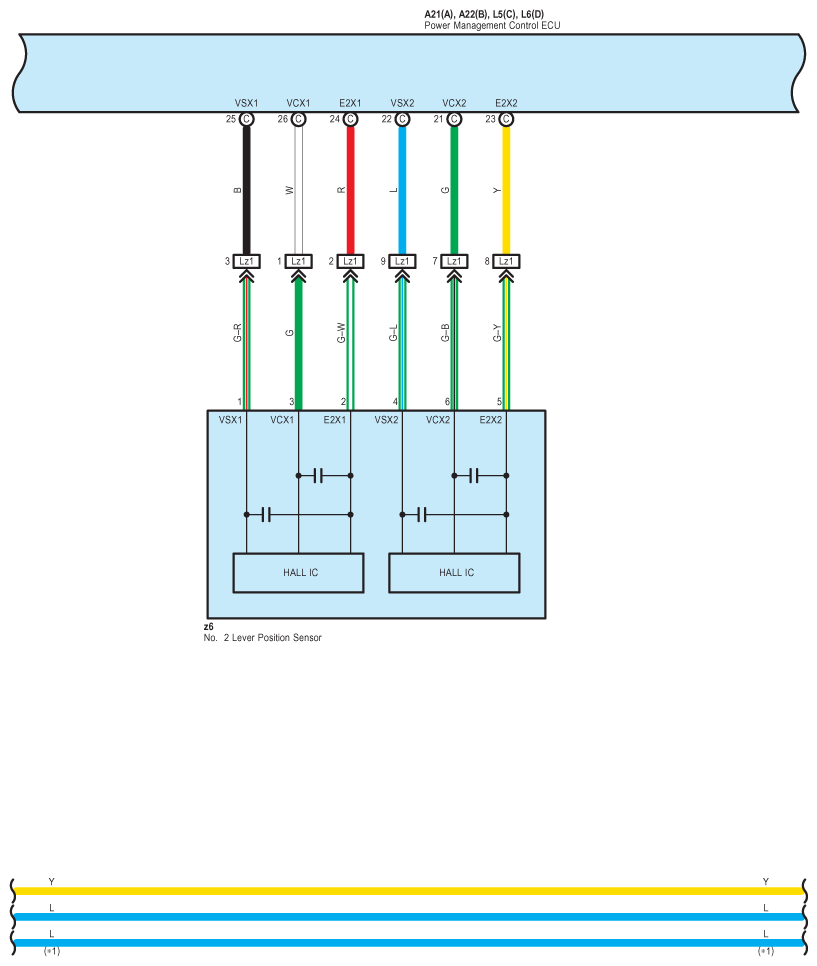

Fig 13: Hybrid System And Shift Control System Wiring Diagram (13 Of 28)

G09099317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

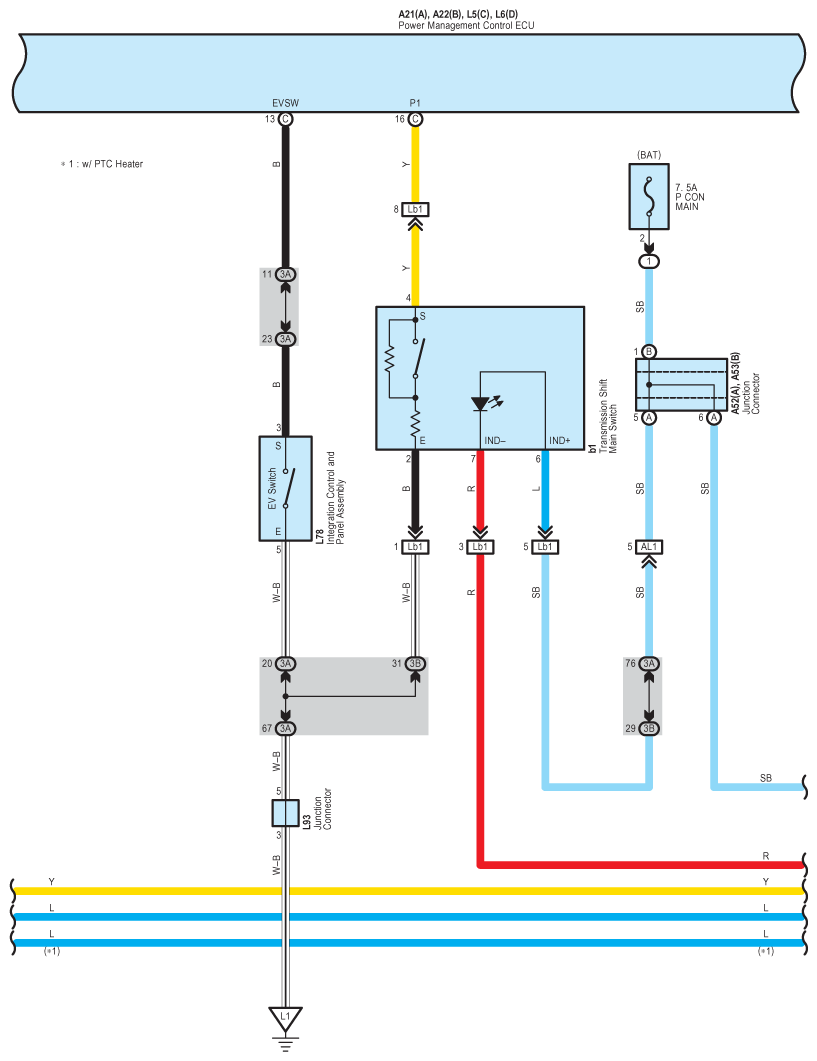

Fig 14: Hybrid System And Shift Control System Wiring Diagram (14 Of 28)

G09099318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

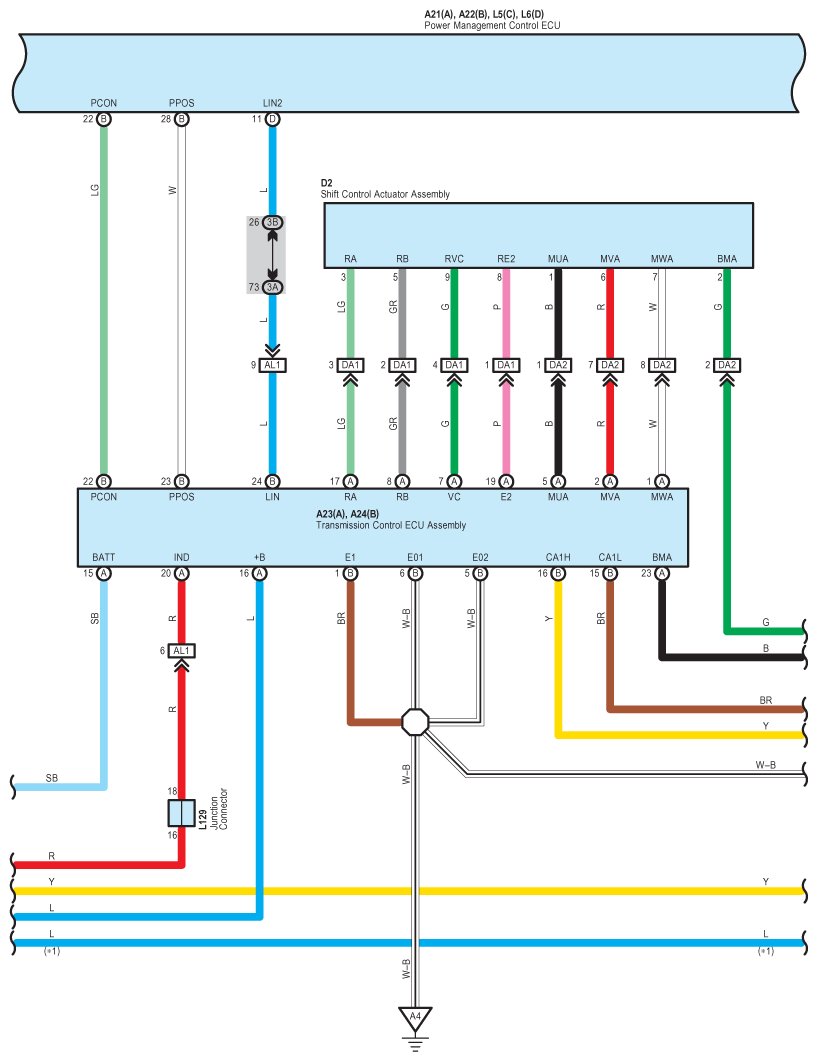

Fig 15: Hybrid System And Shift Control System Wiring Diagram (15 Of 28)

G09099319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

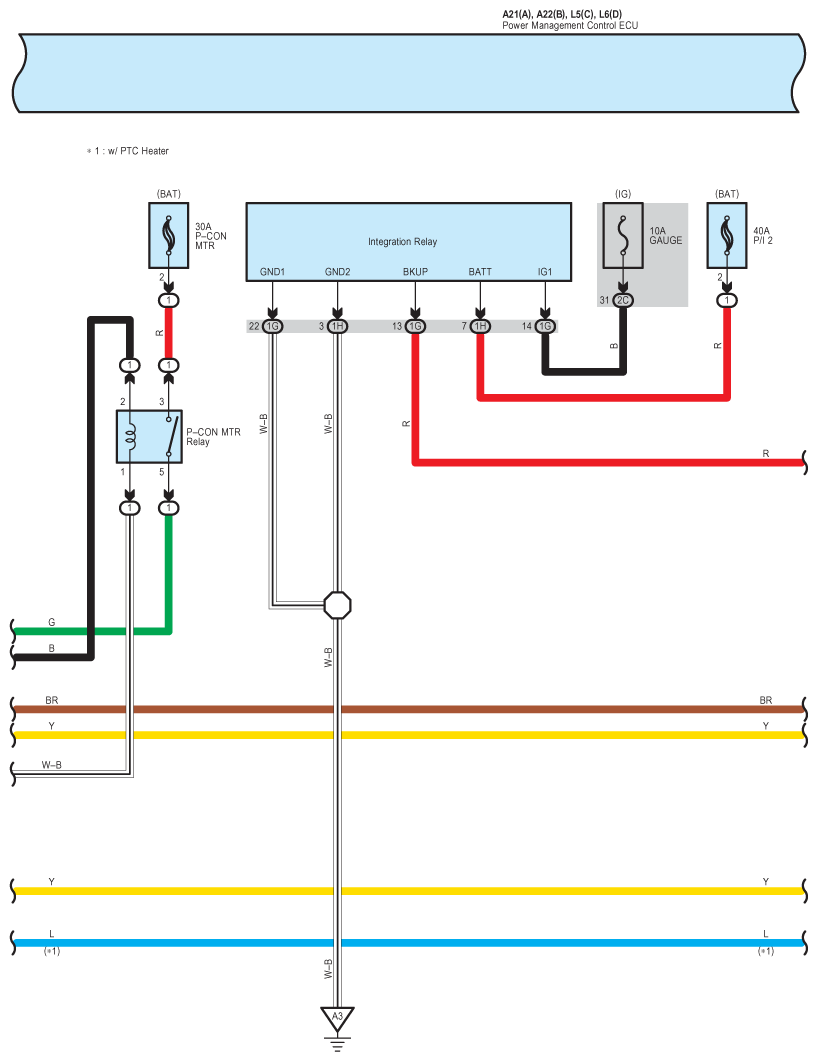

Fig 16: Hybrid System And Shift Control System Wiring Diagram (16 Of 28)

G09099320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

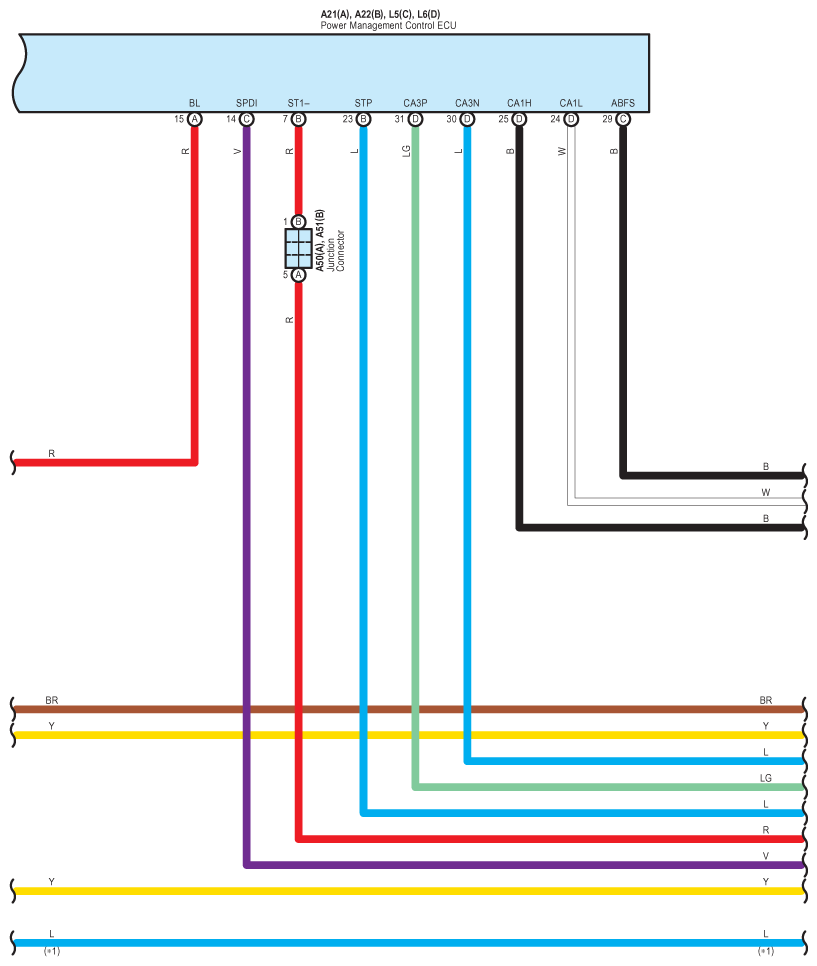

Fig 17: Hybrid System And Shift Control System Wiring Diagram (17 Of 28)

G09099321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

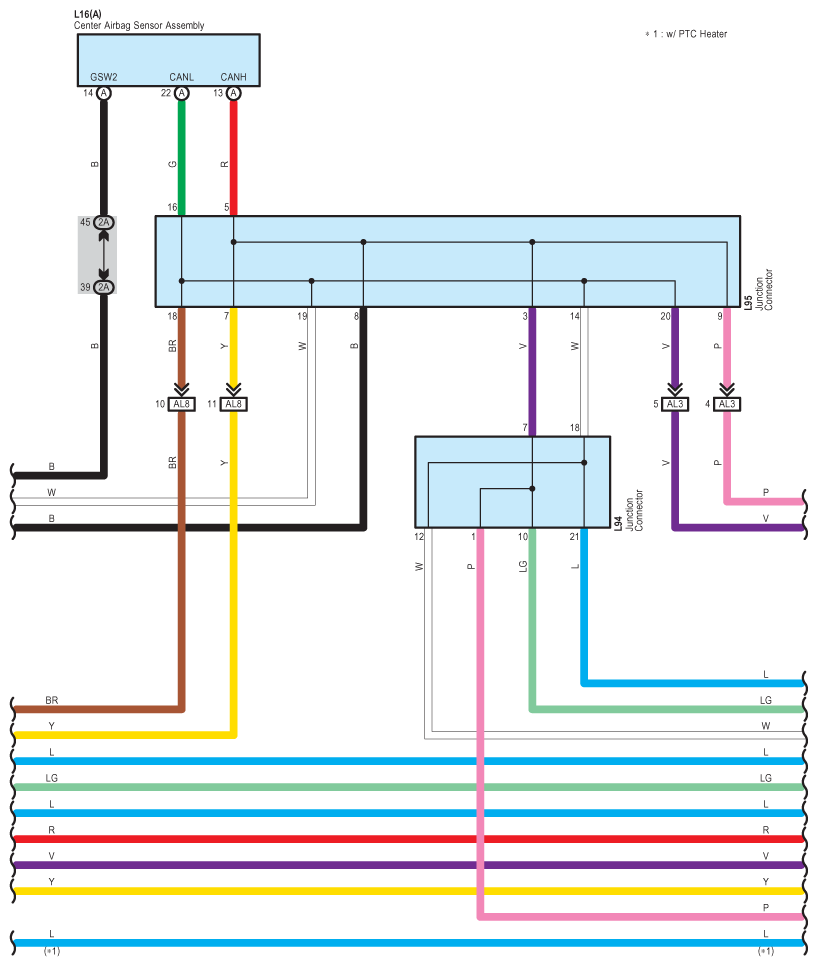

Fig 18: Hybrid System And Shift Control System Wiring Diagram (18 Of 28)

G09099322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

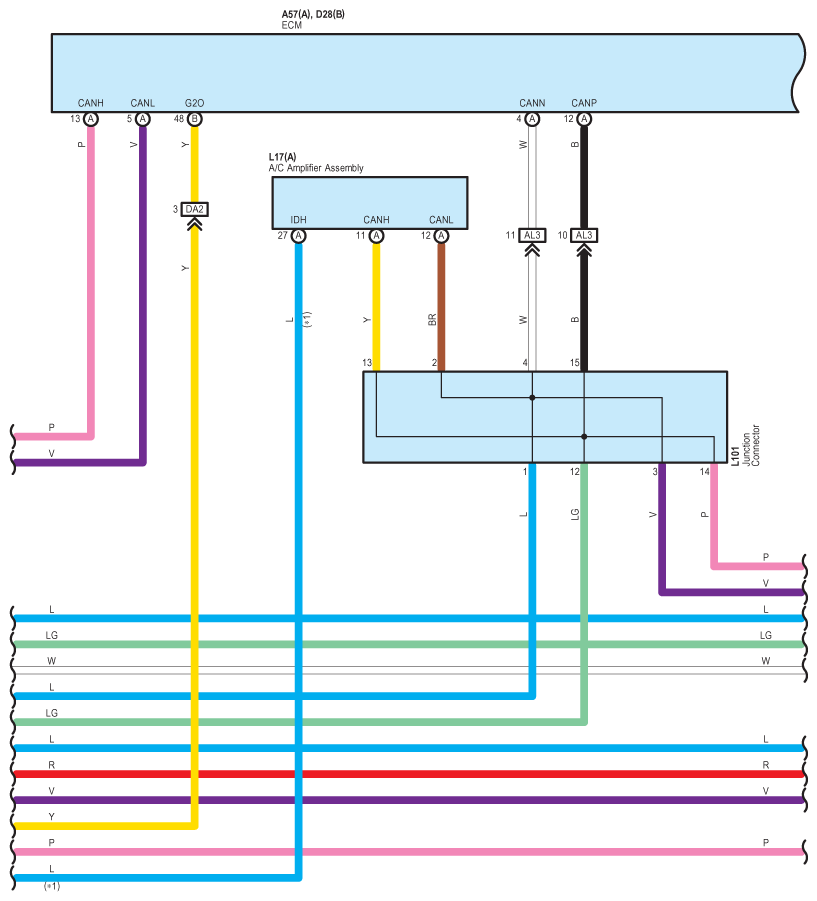

Fig 19: Hybrid System And Shift Control System Wiring Diagram (19 Of 28)

G09099323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

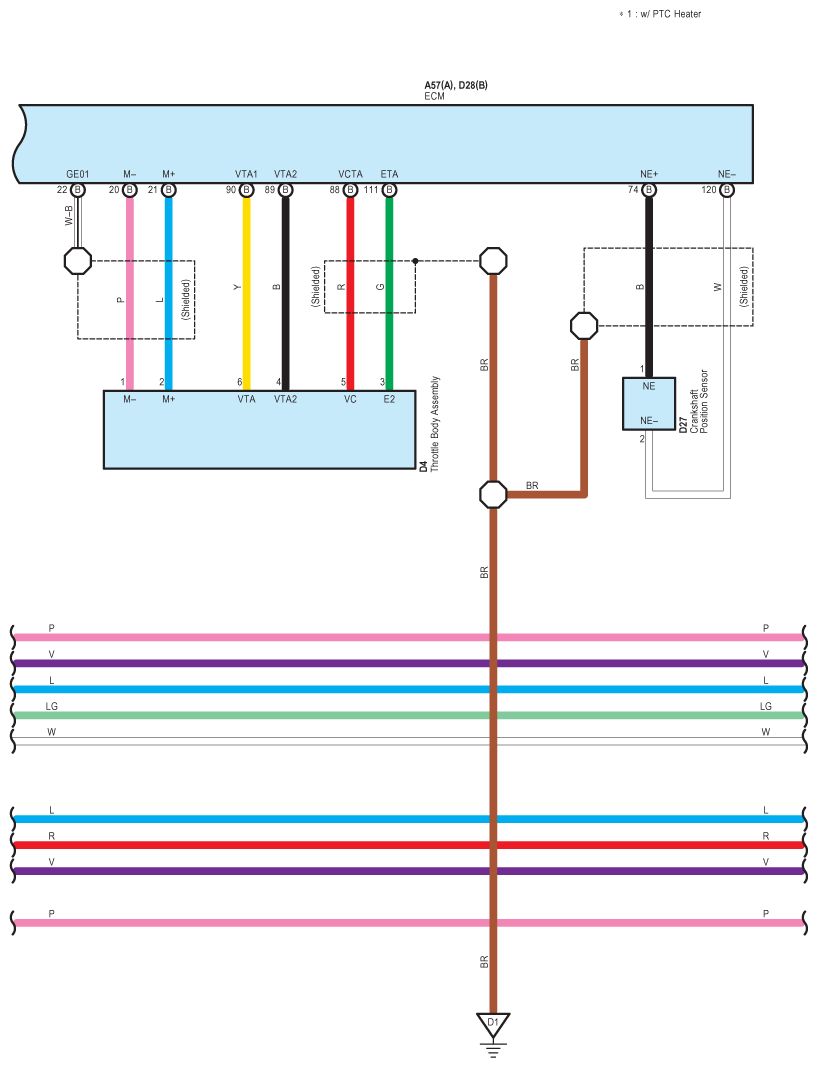

Fig 20: Hybrid System And Shift Control System Wiring Diagram (20 Of 28)

G09099324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

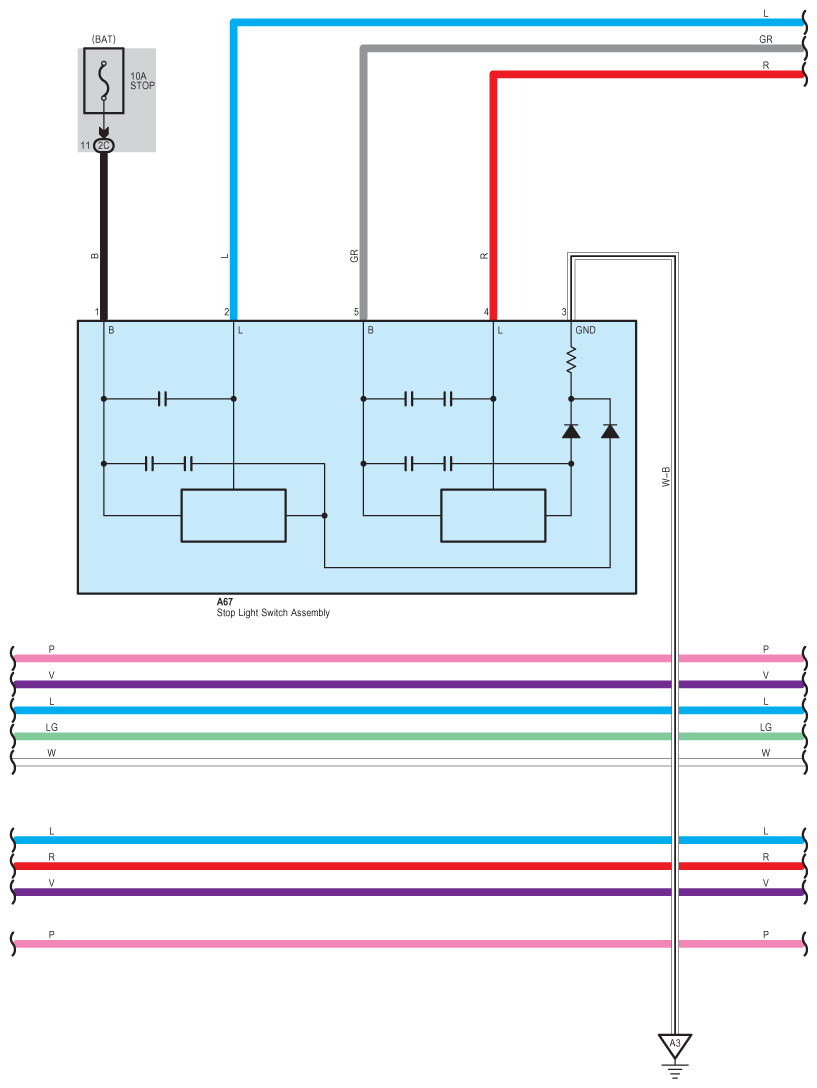

Fig 21: Hybrid System And Shift Control System Wiring Diagram (21 Of 28)

G09099325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

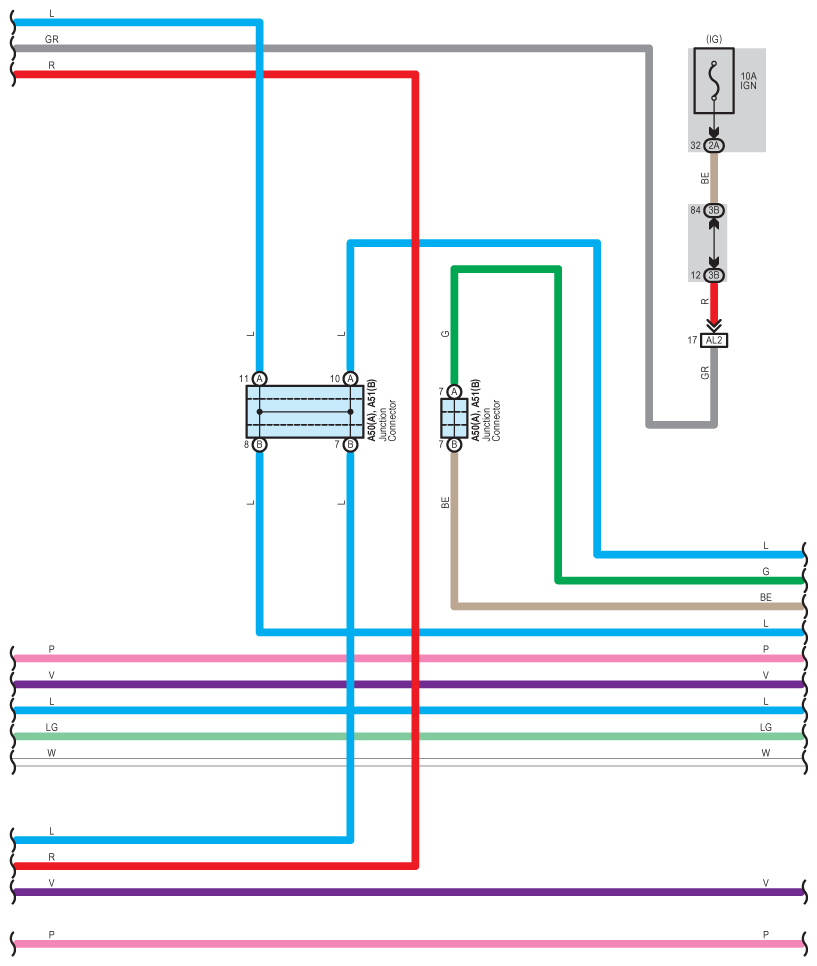

Fig 22: Hybrid System And Shift Control System Wiring Diagram (22 Of 28)

G09099326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

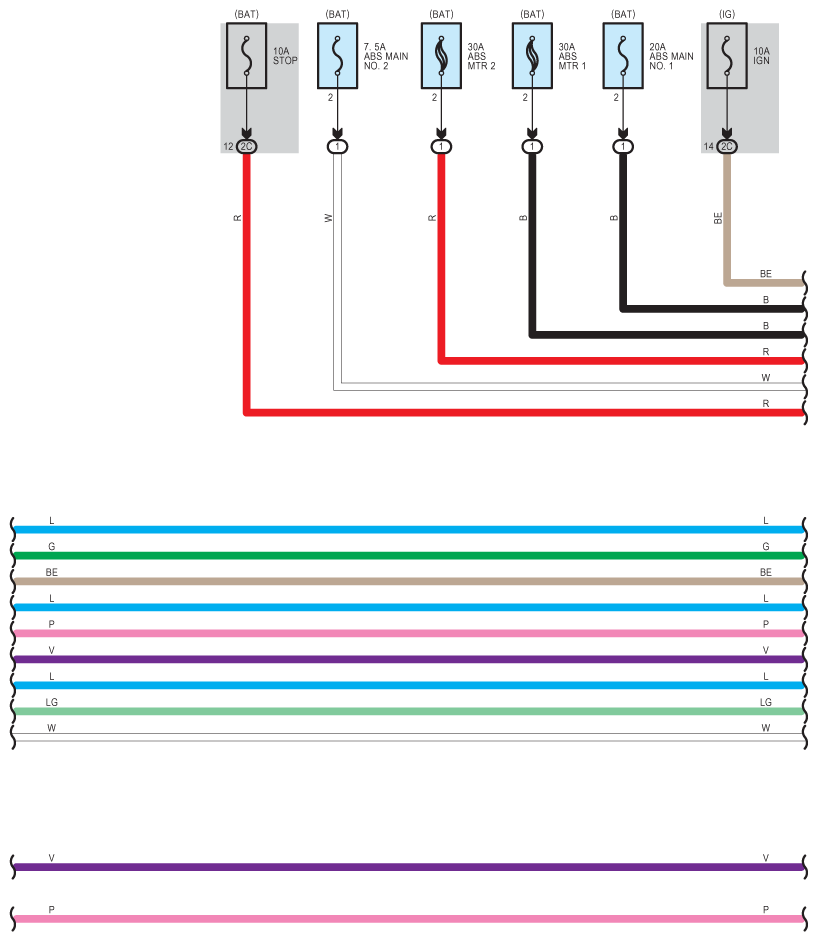

Fig 23: Hybrid System And Shift Control System Wiring Diagram (23 Of 28)

G09099327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

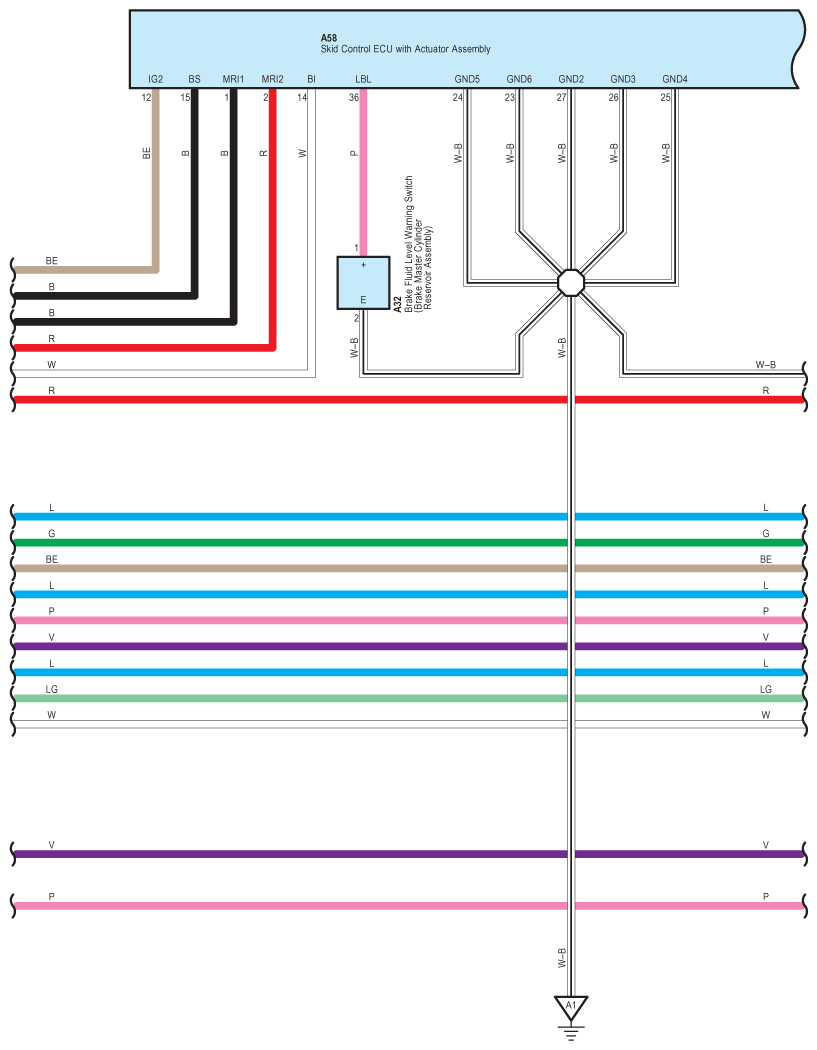

Fig 24: Hybrid System And Shift Control System Wiring Diagram (24 Of 28)

G09099328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

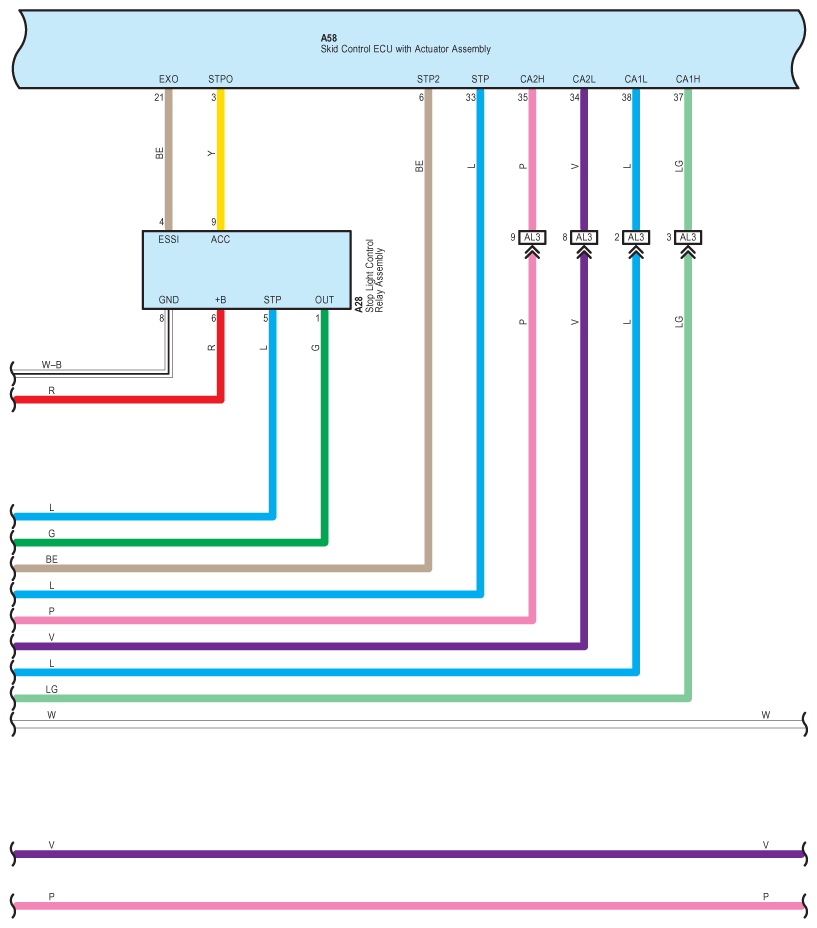

Fig 25: Hybrid System And Shift Control System Wiring Diagram (25 Of 28)

G09099329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

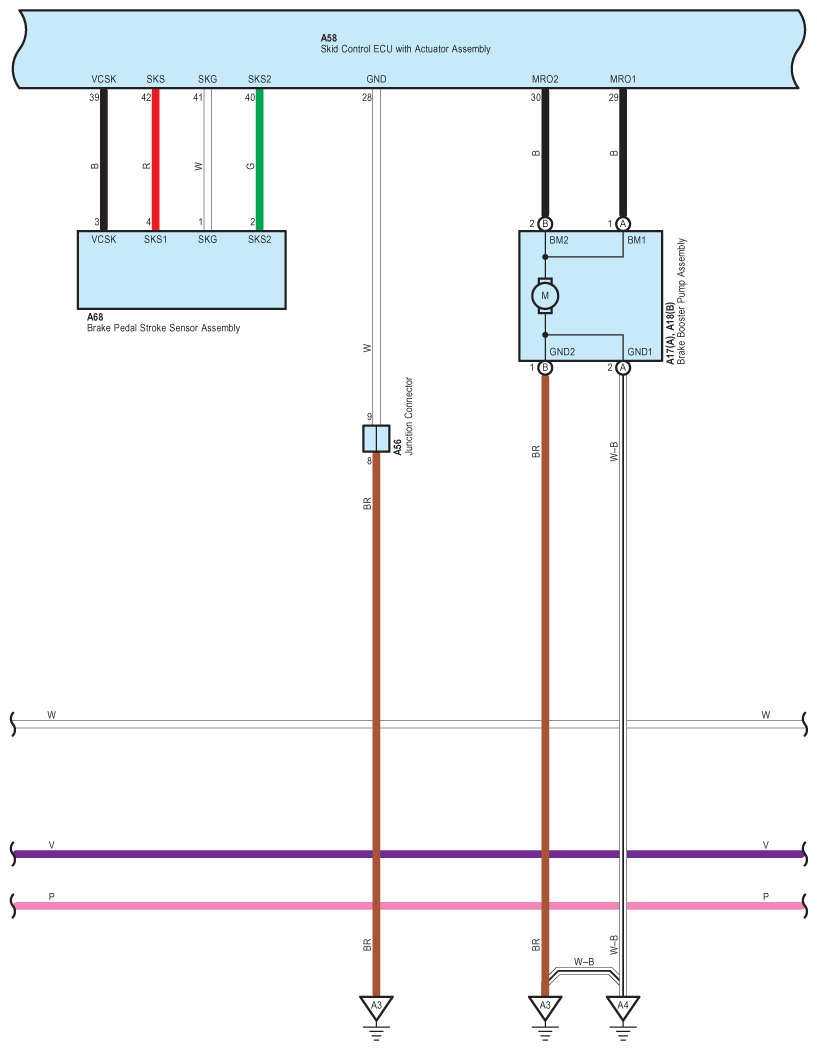

Fig 26: Hybrid System And Shift Control System Wiring Diagram (26 Of 28)

G09099330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

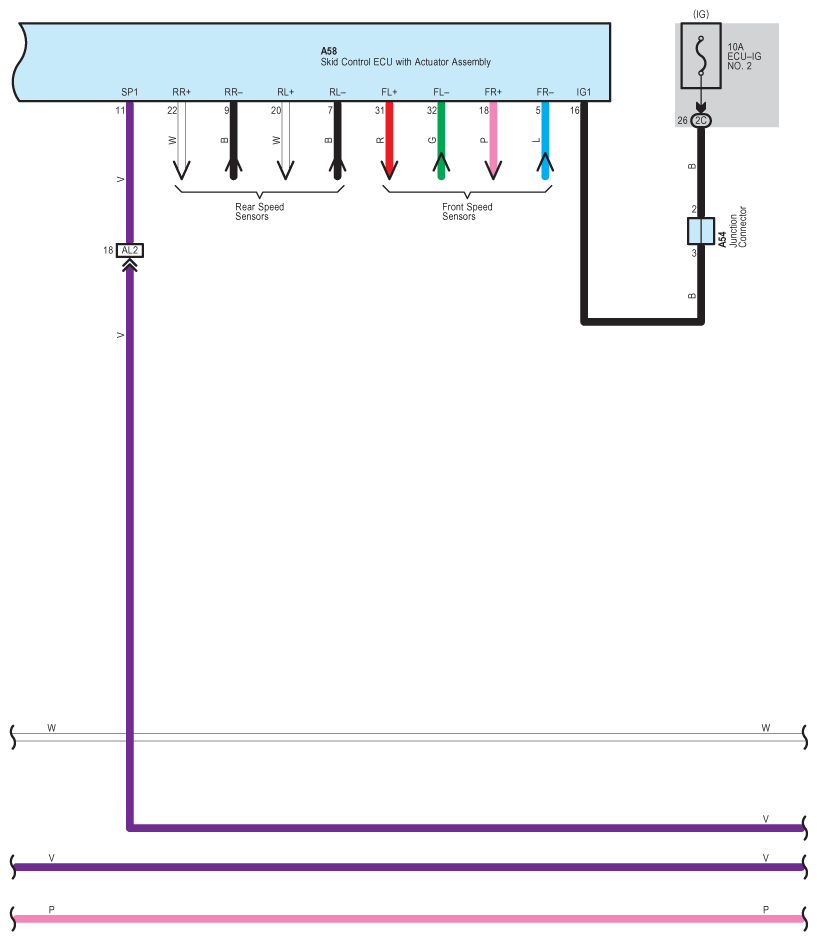

Fig 27: Hybrid System And Shift Control System Wiring Diagram (27 Of 28)

G09099331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

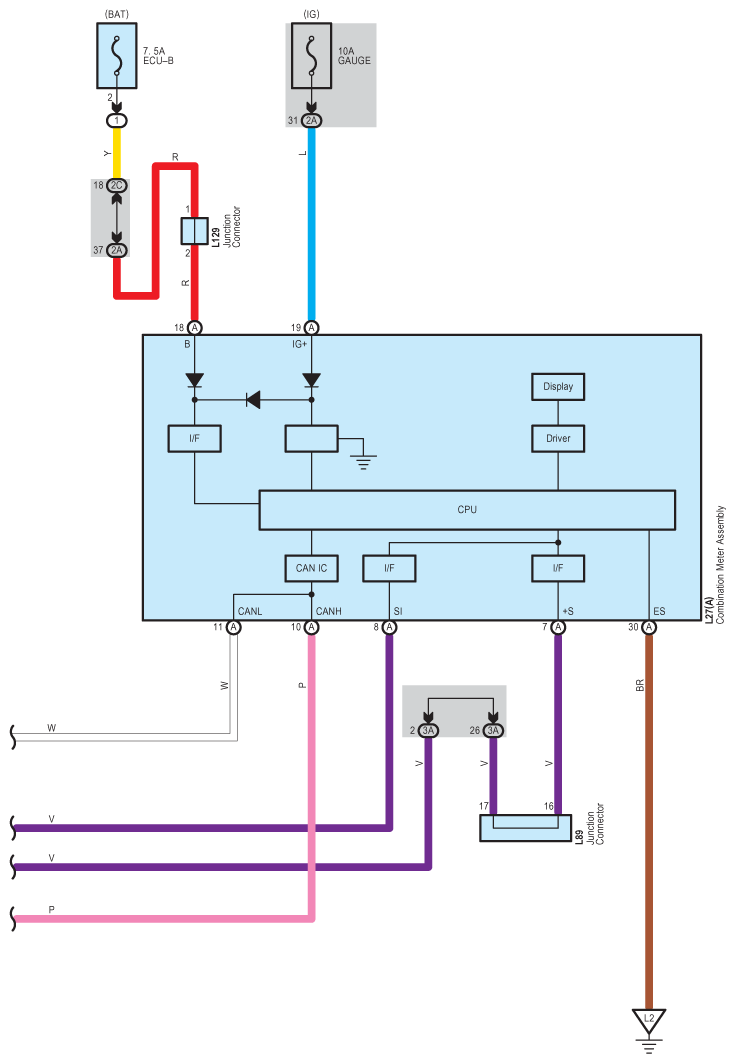

Fig 28: Hybrid System And Shift Control System Wiring Diagram (28 Of 28)

G09099332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
