Multiplex Communication System (CAN): Notes

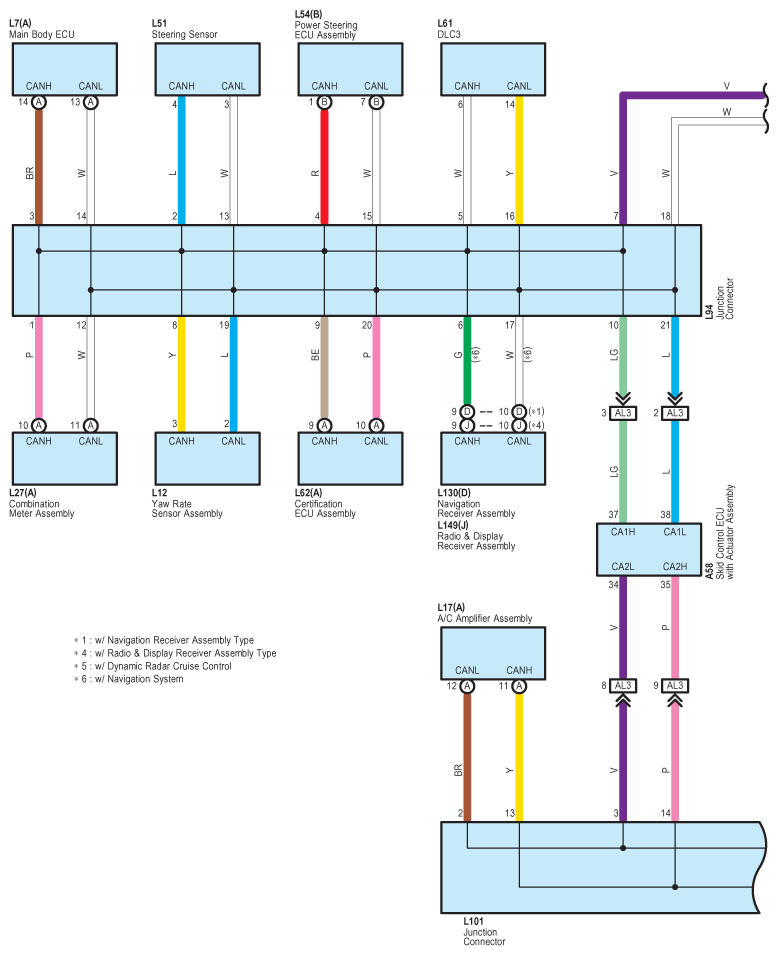

Fig 1: Multiplex Communication System (CAN) Wiring Diagram (1 Of 3)
G09099387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

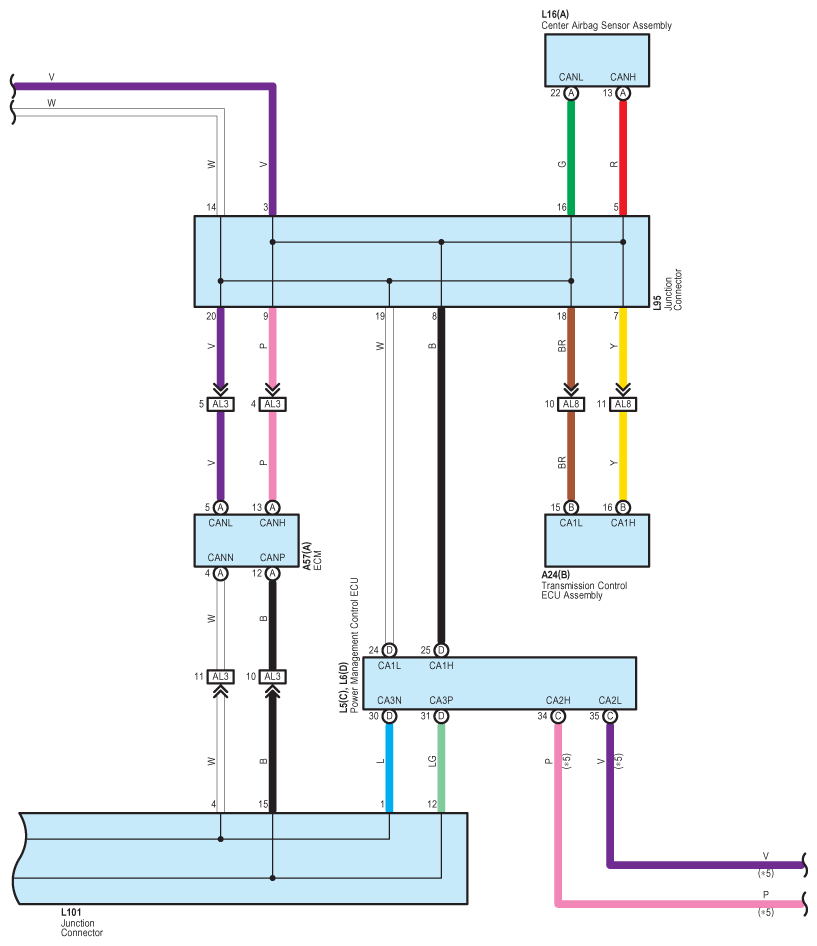

Fig 2: Multiplex Communication System (CAN) Wiring Diagram (2 Of 3)
G09099388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

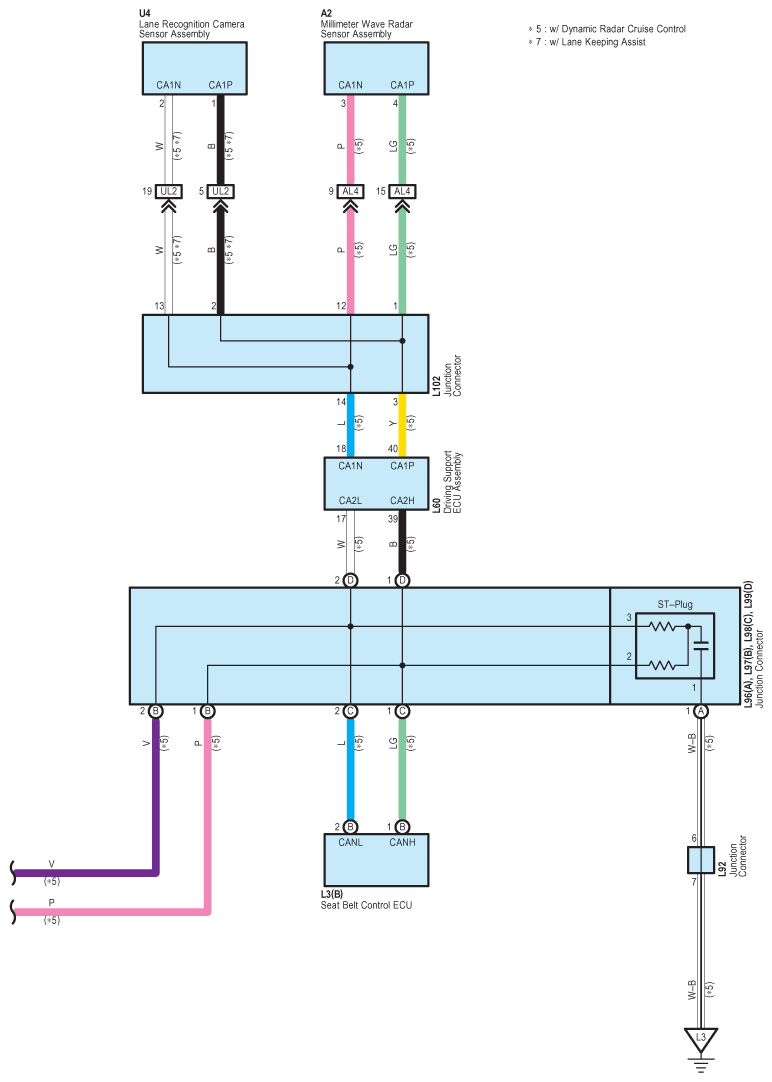

Fig 3: Multiplex Communication System (CAN) Wiring Diagram (3 Of 3)
G09099389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
