Sliding Roof: Notes

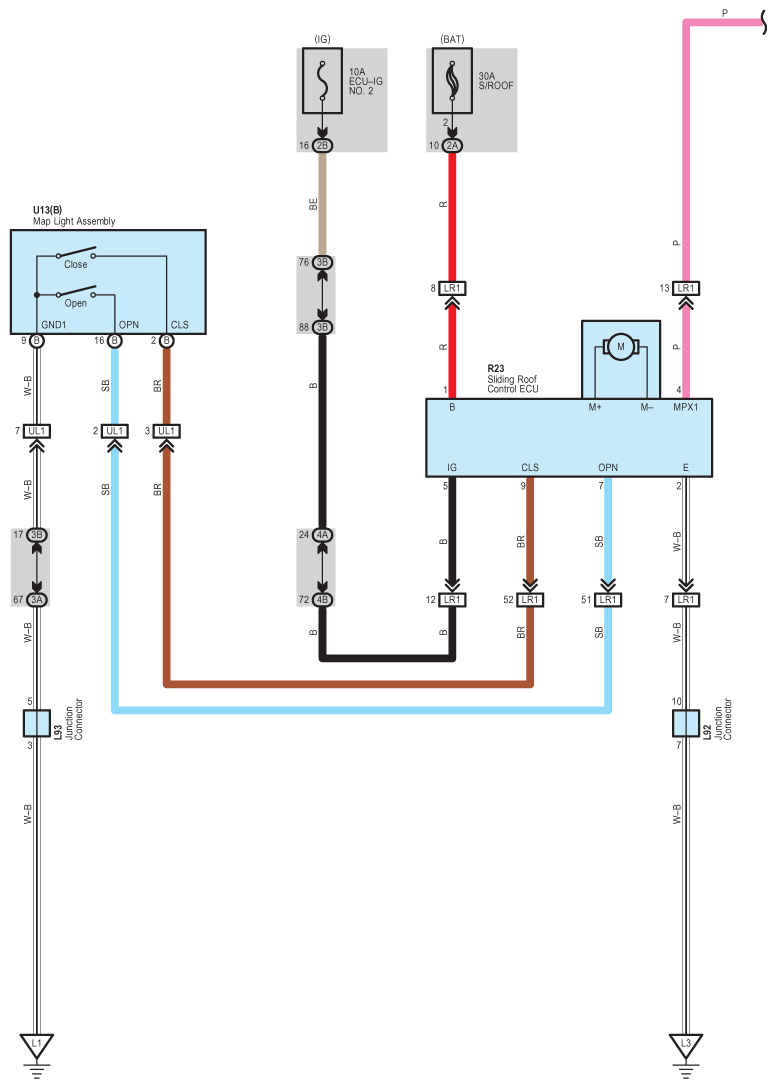

Fig 1: Sliding Roof System Wiring Diagram (1 Of 3)
G09099494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof System Wiring Diagram (2 Of 3)
G09099495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Sliding Roof System Wiring Diagram (3 Of 3)
G09099496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
