Camshaft Oil Control Valve: Installation: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.

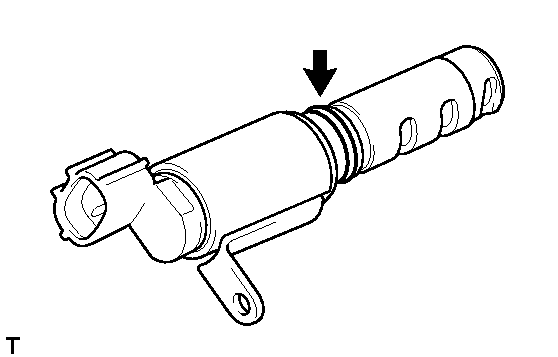

  Fig 1: Locating Camshaft Timing Oil Control Valve O-Ring (For Intake Camshaft Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not twist the O-ring.
2. Install the camshaft timing oil control valve assembly and wire harness bracket with the bolt.

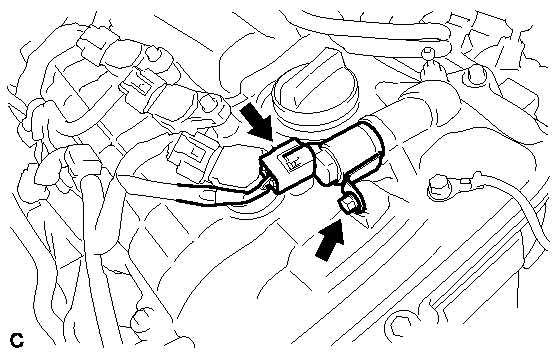

  Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the camshaft timing oil control valve assembly connector.
INSPECT FOR OIL LEAK
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 97
