Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components (1 Of 3)
GTY340324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 3)
GTY325137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

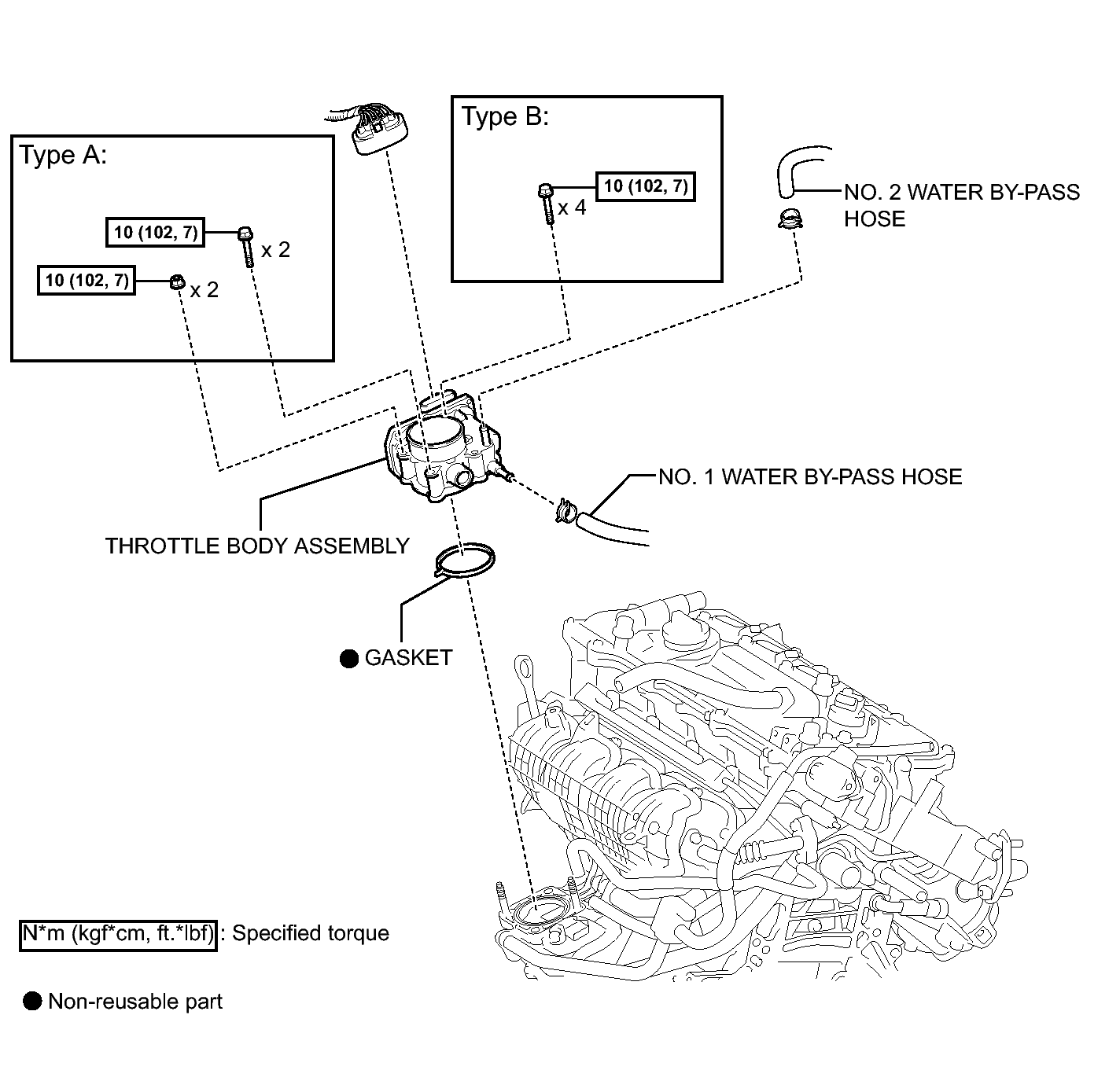

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (3 Of 3)
GTY375457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
