Control Pilot Signal Circuit [08/2014 - ]: Wiring Diagram

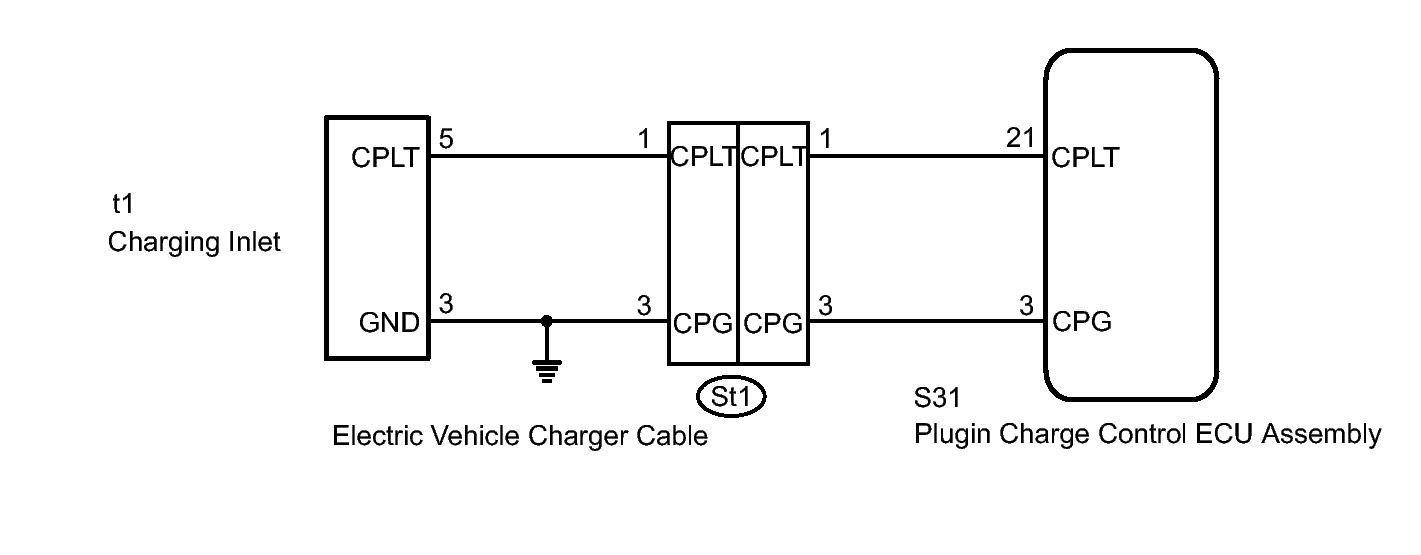

Fig 1: Identifying Control Pilot Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
