Open in AC Line [08/2014 - ]: Procedure

1. Visual inspection

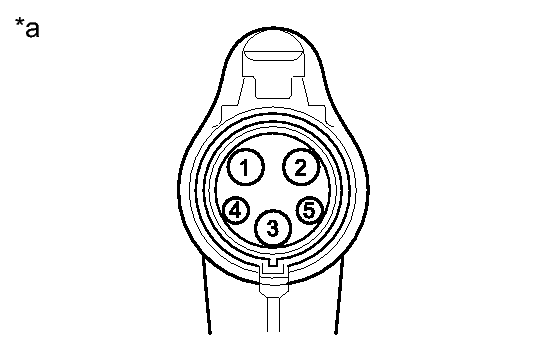

   1. Check if any foreign matter is attached to the connecting part of the electric vehicle charger cable assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Electric Vehicle Charger Cable Assembly (Charging Connector Side)

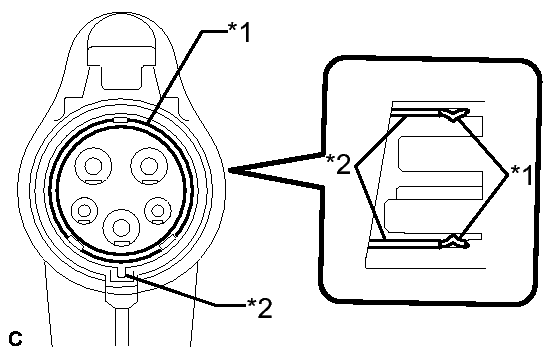

   2. Check the installation condition of the EV charge connector seal.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *1	EV Charge Connector Seal
      *2	EV Charge Connector Retainer

      NOTE:

      If the EV charge connector seal is loose, replace the EV charge connector seal and EV charge connector retainer.

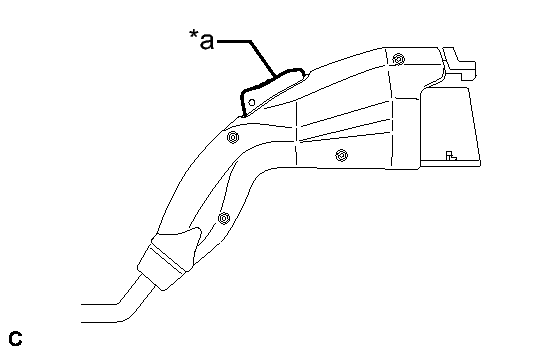

2. Check the latch release button (PISW)
   1. Check that the latch release button (PISW) can be pressed with no abnormal resistance.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Latch Release Button (PISW)

3. Check for connection
   1. Check that the electric vehicle charger cable assembly and electric vehicle charger cable (charging inlet side) can be connected smoothly.

      OK

      The electric vehicle charger cable assembly and electric vehicle charger cable (charging inlet side) connect smoothly.

      HINT:

      If the result is not as specified, perform the following checks.

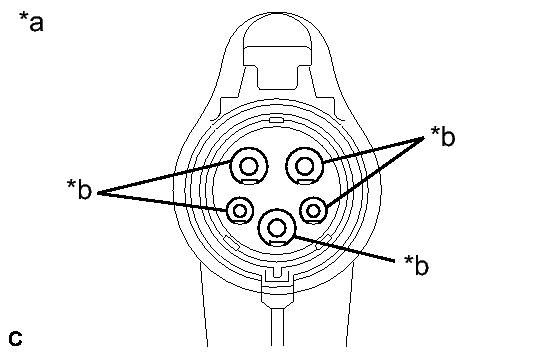

   2. Check that the terminals of the electric vehicle charger cable assembly (charging connector side) are not bent or deformed.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Electric Vehicle Charger Cable Assembly (Charging Connector Side)
      *b	Terminal

      OK

      The terminals are not bent or deformed.

      HINT:

      If the result is not as specified, replace the electric vehicle charger cable assembly.

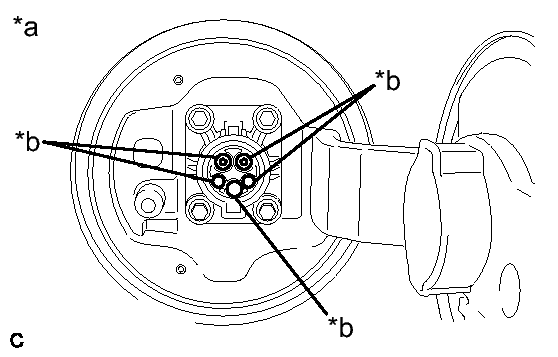

   3. Check that the terminals of the electric vehicle charger cable (charging inlet side) are not bent or deformed.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Electric Vehicle Charger Cable (Charging Connector Side)
      *b	Terminal

      OK

      The terminals are not bent or deformed.

      HINT:

      • If the electric vehicle charger cable assembly (charging connector side) is connected to the electric vehicle charger cable (charging inlet side) incorrectly, the terminals may be bent or deformed.
      • If the result is not as specified, replace the electric vehicle charger cable.

NG → REPLACE MALFUNCTIONING PARTS

OK: Go to next step

NG → See step   5

OK: Go to next step

NG → See step   6

OK: Go to next step

NG → See step   7

OK → See step   8
