DTC U0293-449: Lost Communication with Hybrid Powertrain Control Module [08/2014 - ]: Procedure
- CHECK DTC OUTPUT (HEALTH CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: System Select / Health Check.
- Check if DTCs are output.
Result
Result Proceed to Only U0293-449 is output. A Only U0293-439 and U0293-449 are also output. B U0293-449 and any CAN communication system DTC other than U0293-439 are output. C - Turn the power switch off.
B → See step 7
C → See step 8
A: Go to next step
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - PLUGIN CHARGE CONTROL ECU ASSEMBLY) See step 2
NG → See step 5
OK: Go to next step
- CHECK POWER MANAGEMENT CONTROL ECU (PIBM VOLTAGE)
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

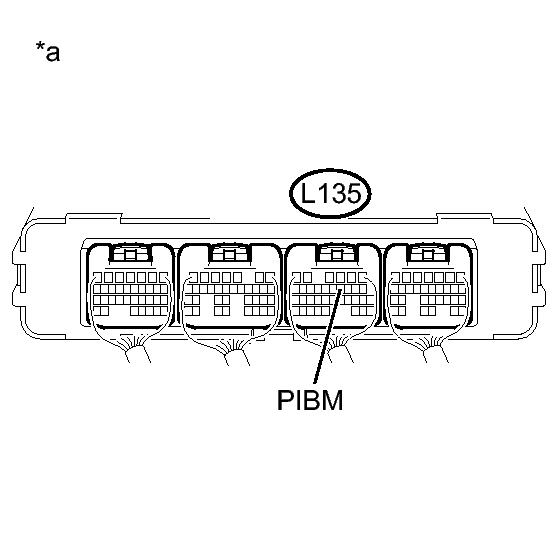

Tester Connection Switch Condition Specified Condition L135-10 (PIBM) - Body ground Power switch off 11 to 14 V TEXT IN ILLUSTRATION*a Component with harness connected
(Power Management Control ECU)
NG → See step 6
OK: Go to next step
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND). Refer to PROCEDURE - Step 2
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 9
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - PLUGIN CHARGE CONTROL ECU ASSEMBLY) See step 6
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 10
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - PIMR RELAY)
- Disconnect connector L135 from the power management control ECU.
- Remove the PIMR relay from the relay block assembly.

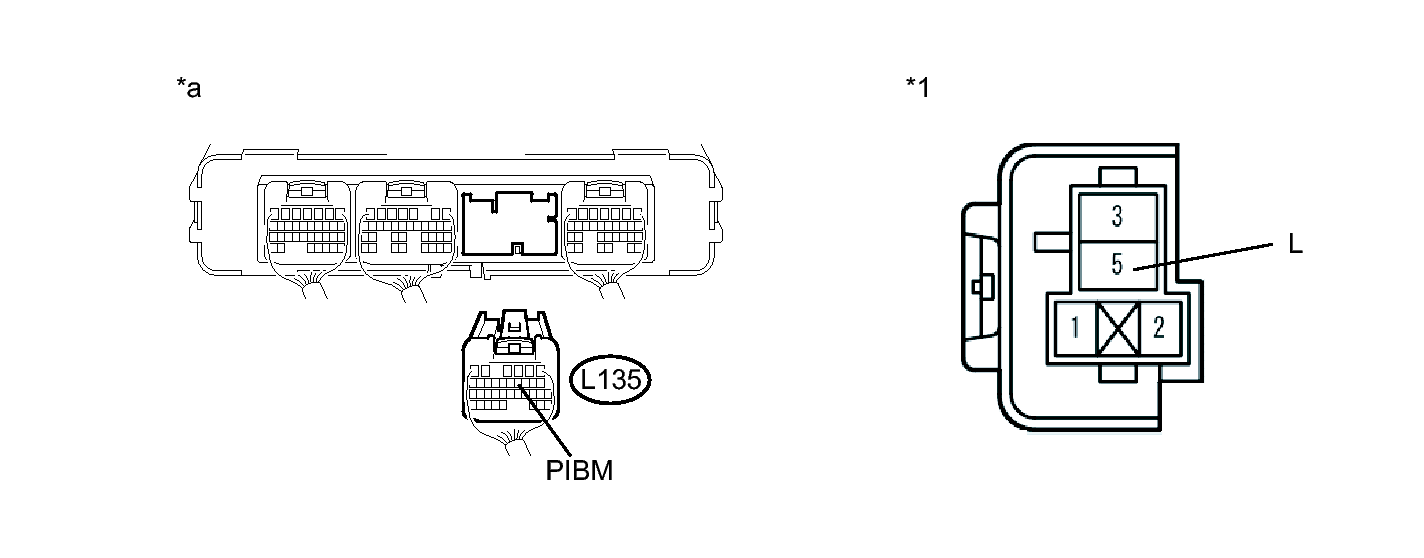

- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Relay Block Assembly (PIMR Relay) - - *a Rear view of wire harness connector
(to Power Management Control ECU)- - Standard Resistance (Check for Open)
Tester Connection Switch Condition Specified Condition L135-10 (PIBM) - 5 (L) Power switch off Below 1 Ω Standard Resistance (Check for Short)
Tester Connection Switch Condition Specified Condition L135-10 (PIBM) or 5 (L) - Body ground and other terminals Power switch off 10 kΩ or higher - Install the PIMR relay.
- Connect the power management control ECU connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 9
- GO TO DTC CHART (U0293-439). Refer to DTC U0293-439: Lost Communication with Hybrid Powertrain Control Module [08/2014 - ]
- GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2014 - ]
- REPLACE POWER MANAGEMENT CONTROL ECU. Refer to COMPONENTS [08/2014 - ]
- REPLACE PLUGIN CHARGE CONTROL ECU ASSEMBLY. Refer to COMPONENTS [08/2014 - ]
