System Diagrams

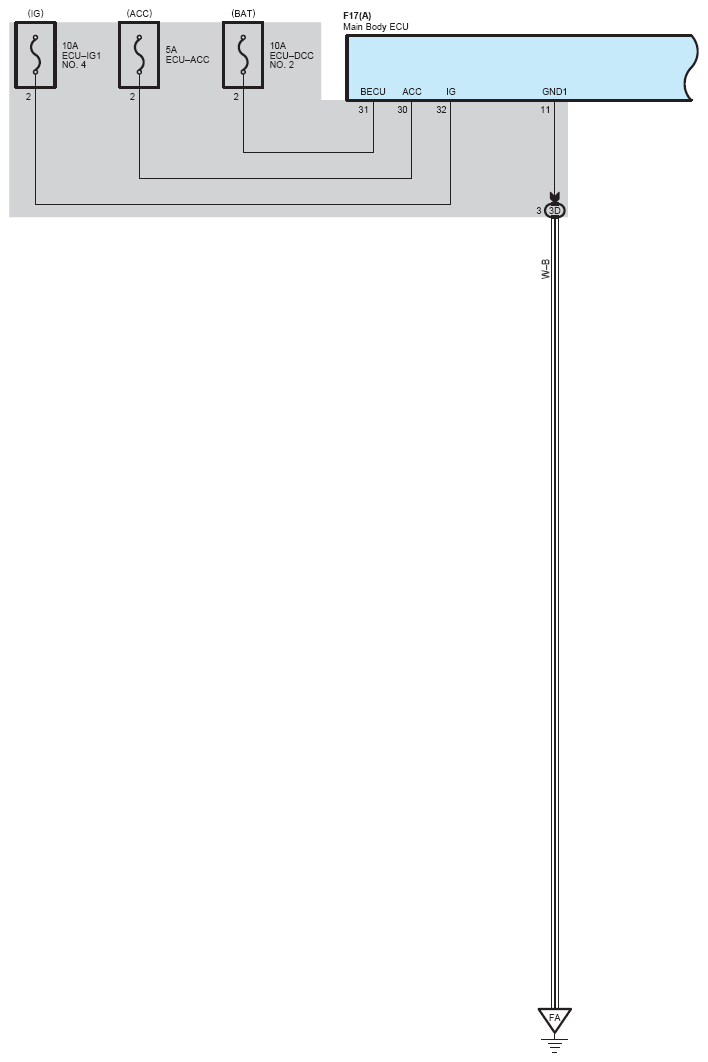

Fig 1: Front Fog Light (1 Of 4)
G12208184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

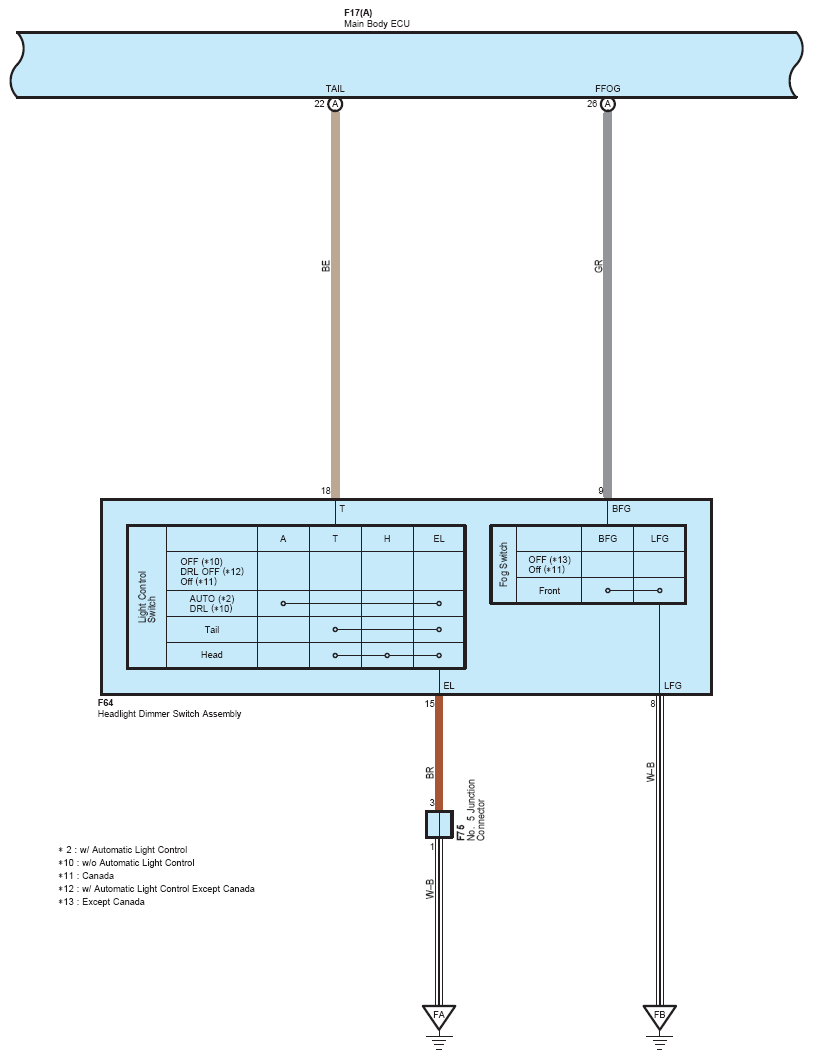

Fig 2: Front Fog Light (2 Of 4)
G12208185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

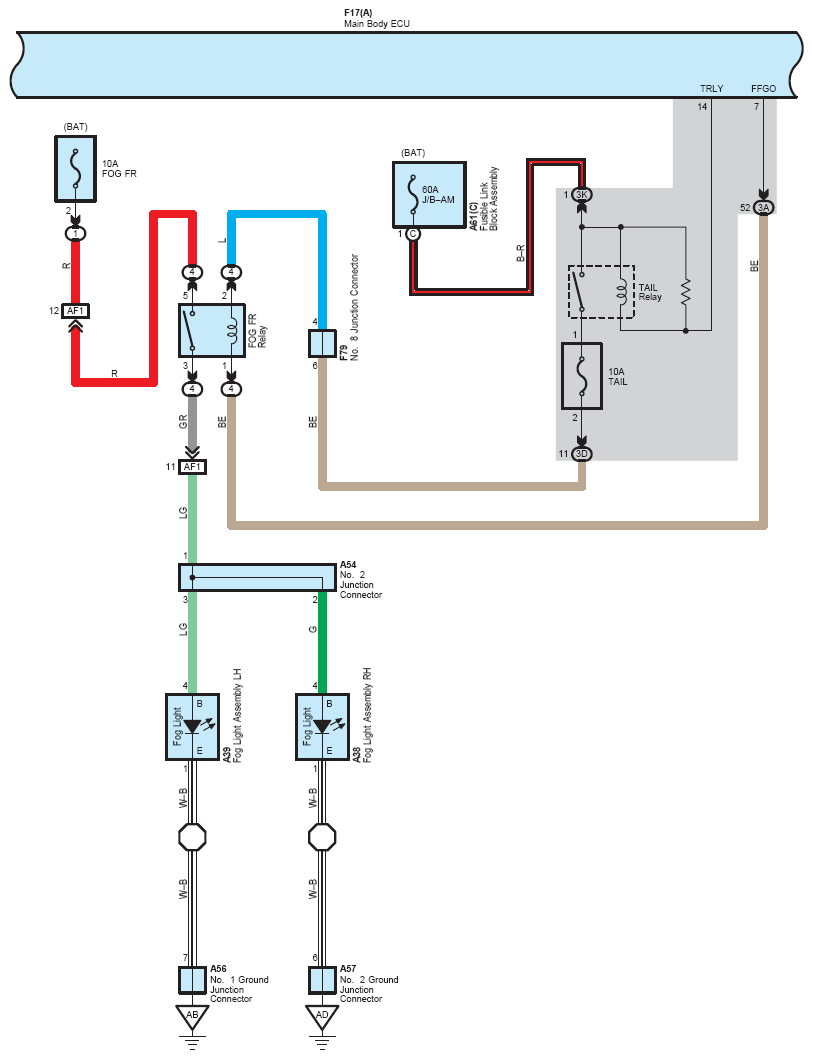

Fig 3: Front Fog Light (3 Of 4)
G12208186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Fog Light (4 Of 4)
G12208187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
