Interior Light: Connectors

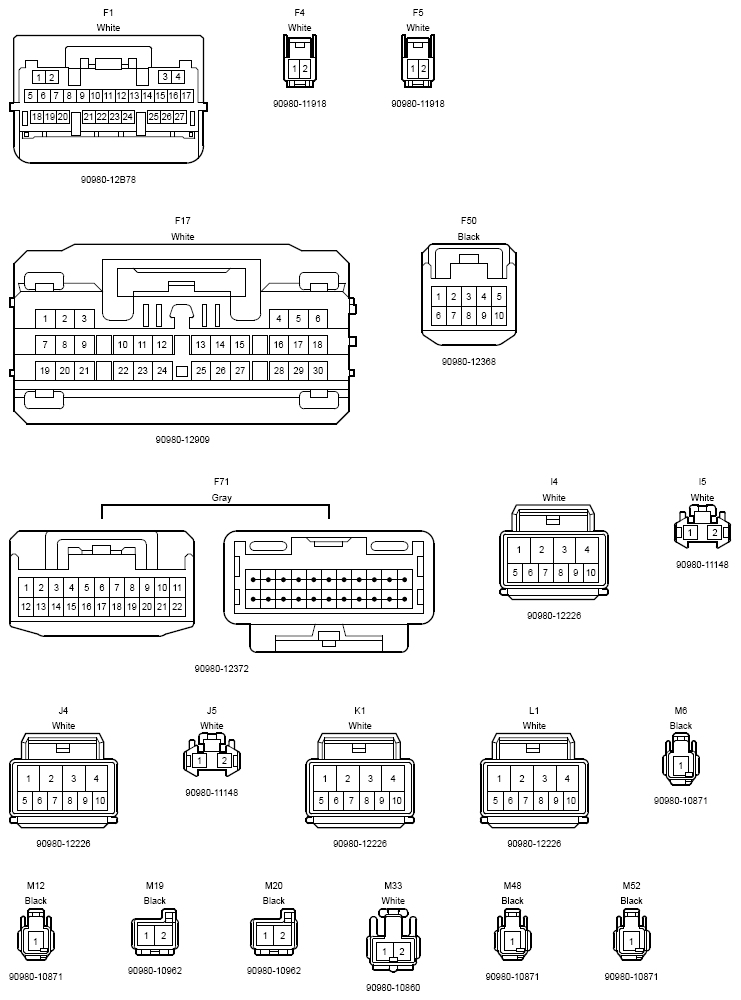

Fig 1: Connectors (1 Of 5)
G12208319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

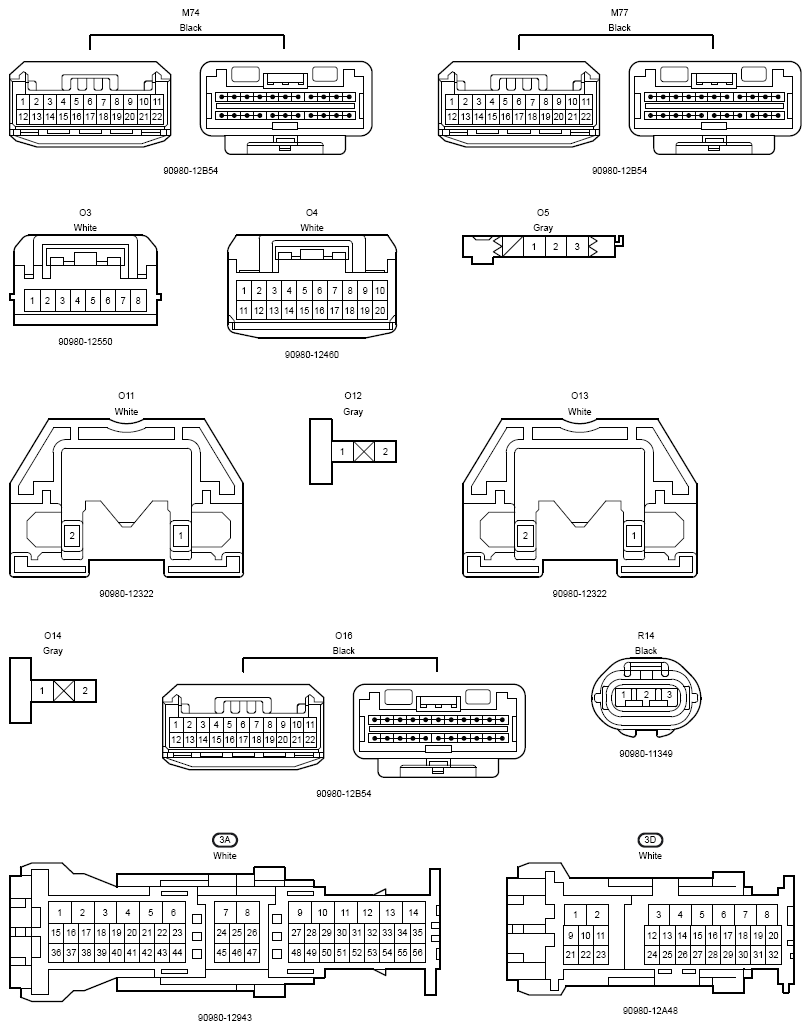

Fig 2: Connectors (2 Of 5)
G12208320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

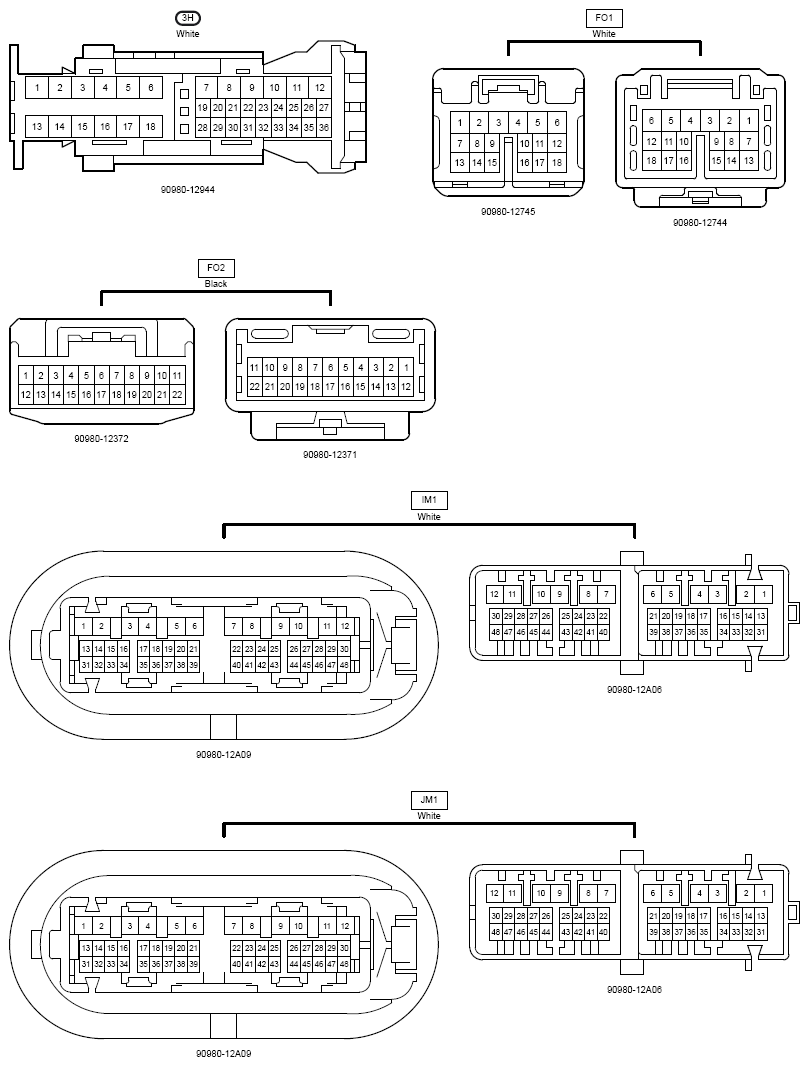

Fig 3: Connectors (3 Of 5)
G12208321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connectors (4 Of 5)
G12208322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

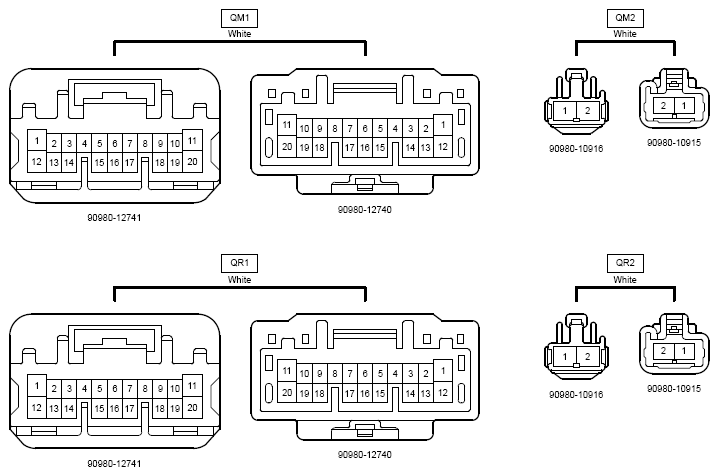

Fig 5: Connectors (5 Of 5)
G12208323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
