System Diagrams

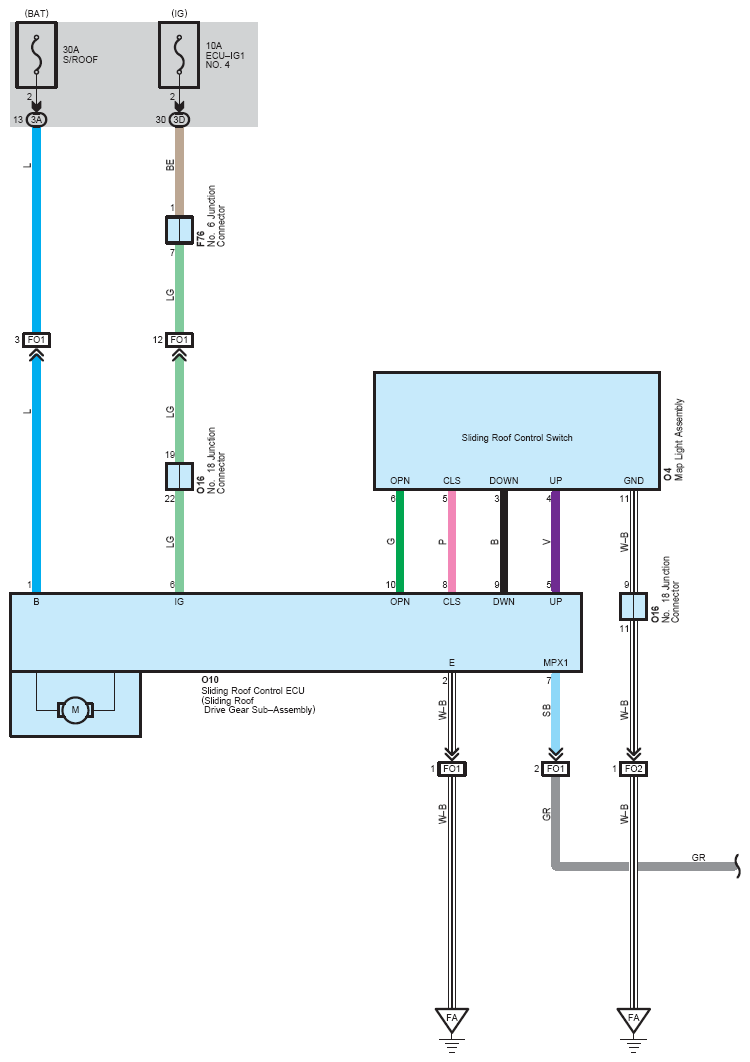

Fig 1: Sliding Roof (1 Of 4)

G12208476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

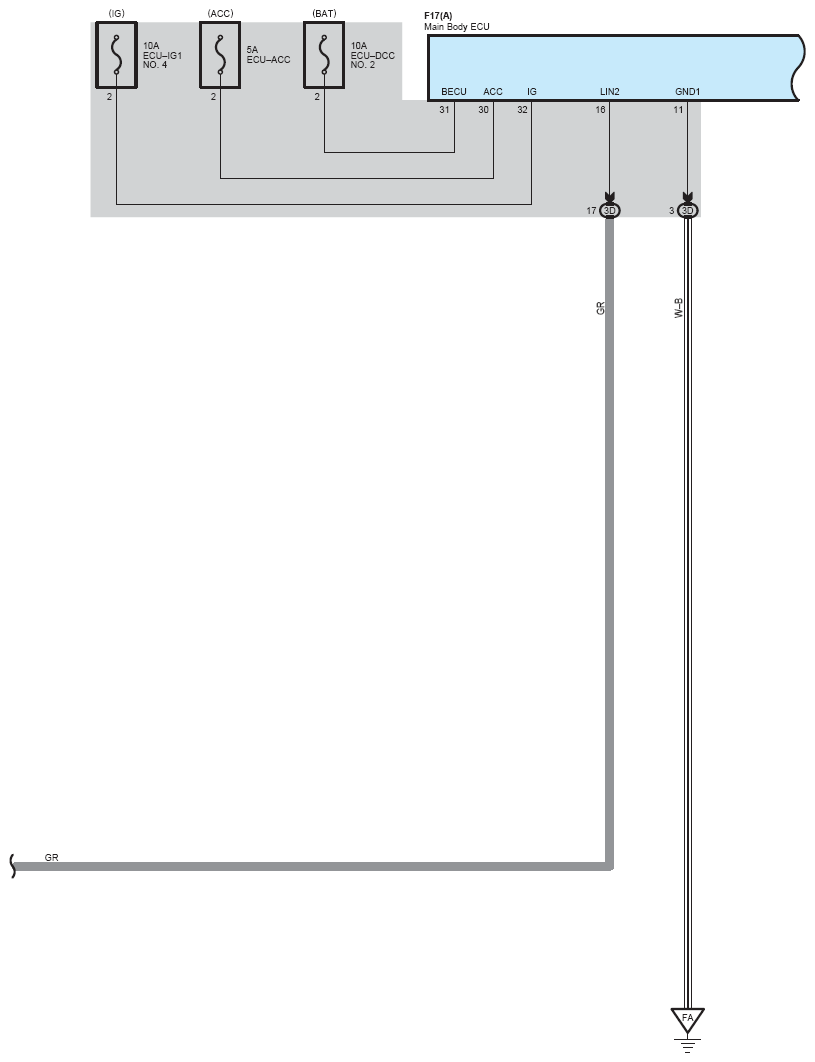

Fig 2: Sliding Roof (2 Of 4)

G12208477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

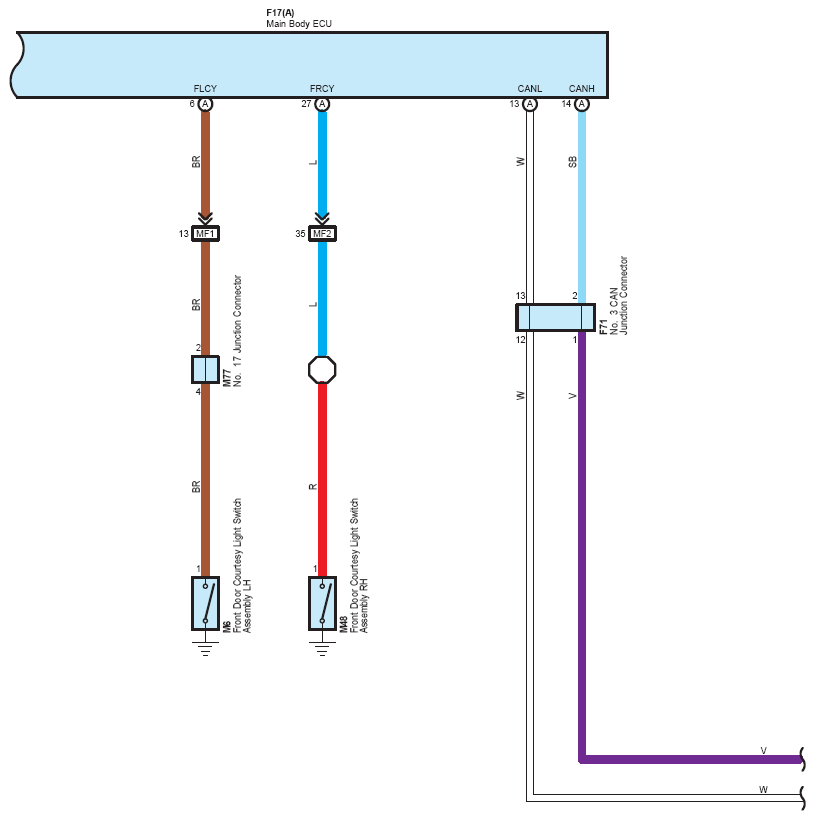

Fig 3: Sliding Roof (3 Of 4)

G12208478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

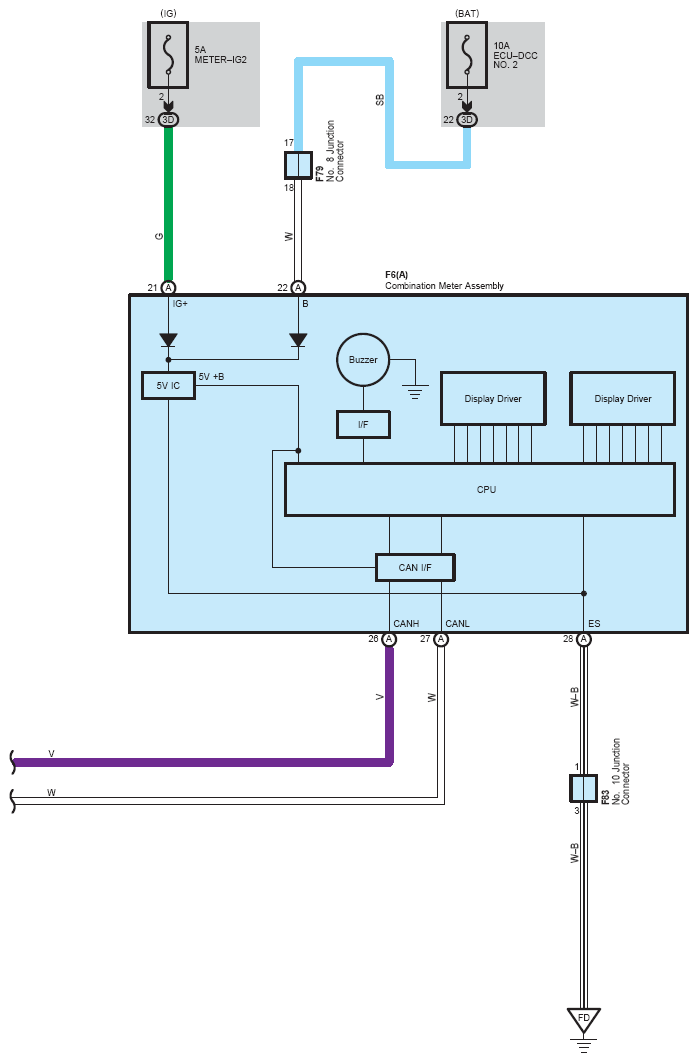

Fig 4: Sliding Roof (4 Of 4)

G12208479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
