System Diagrams

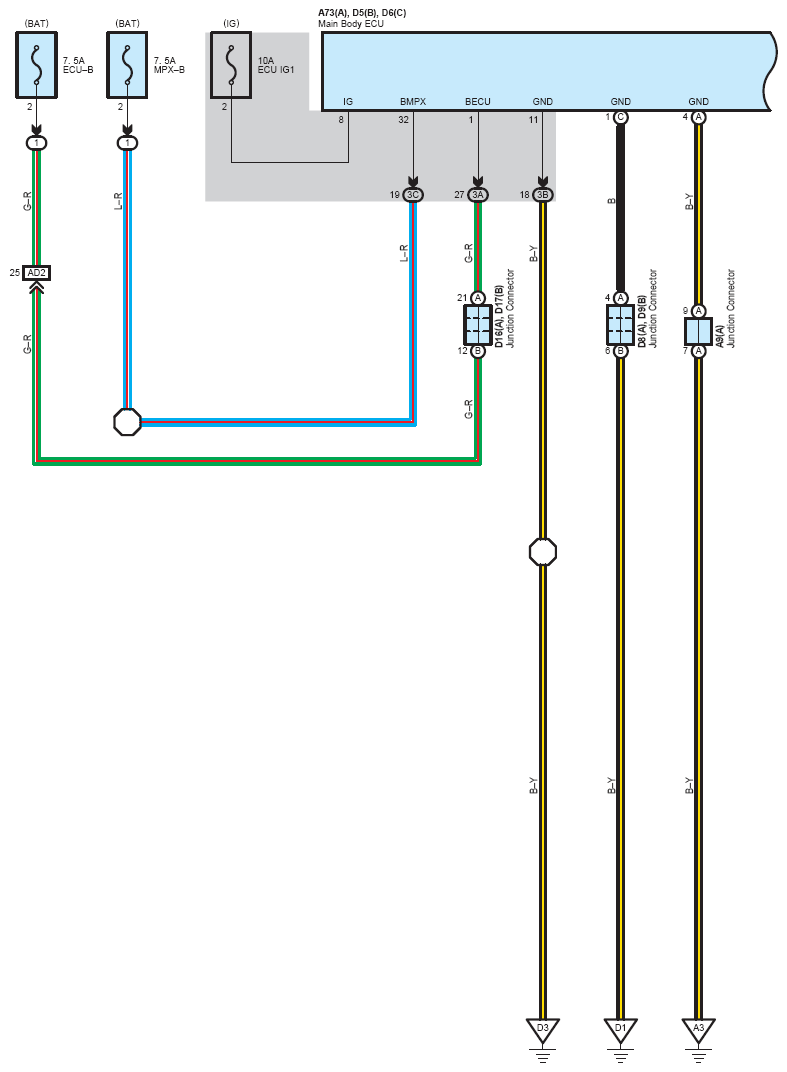

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 6)
G12191831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

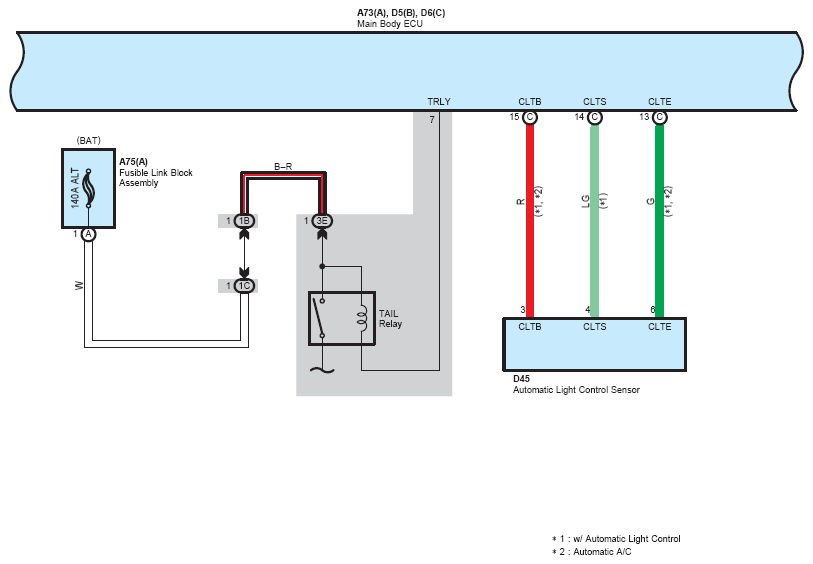

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 6)
G12191832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

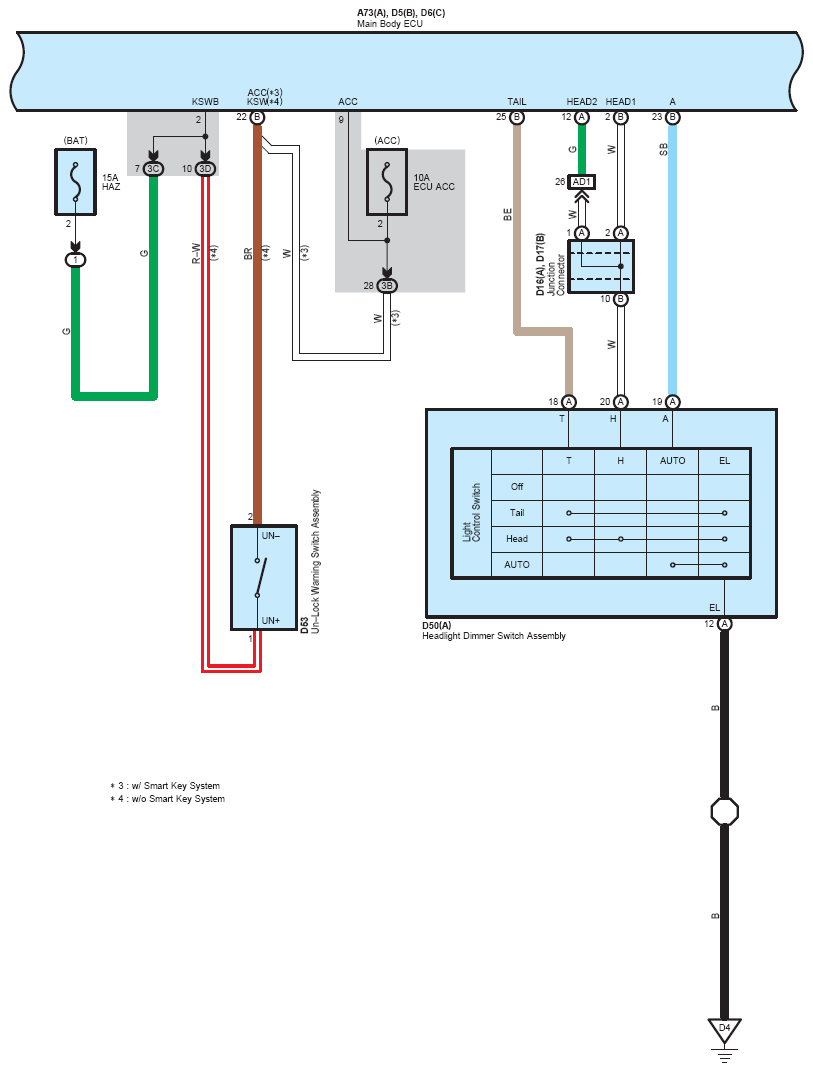

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 6)
G12191833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Automatic Light Control, Light Auto Turn Off System (4 Of 6)
G12191834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

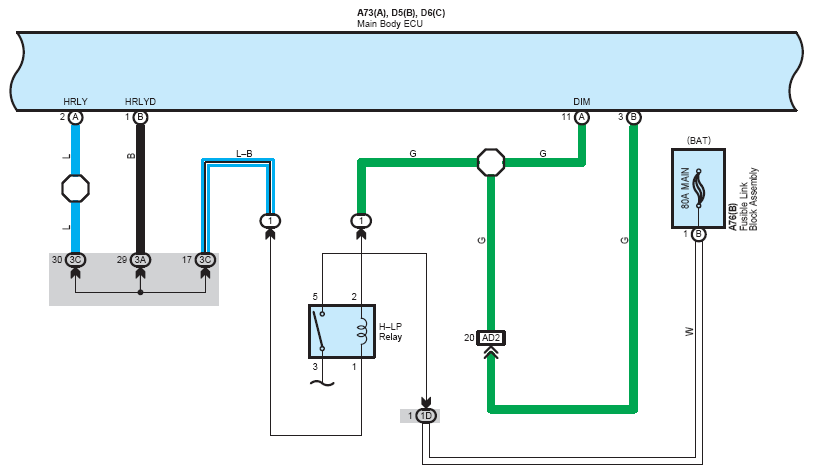

Fig 5: Automatic Light Control, Light Auto Turn Off System (5 Of 6)
G12191835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

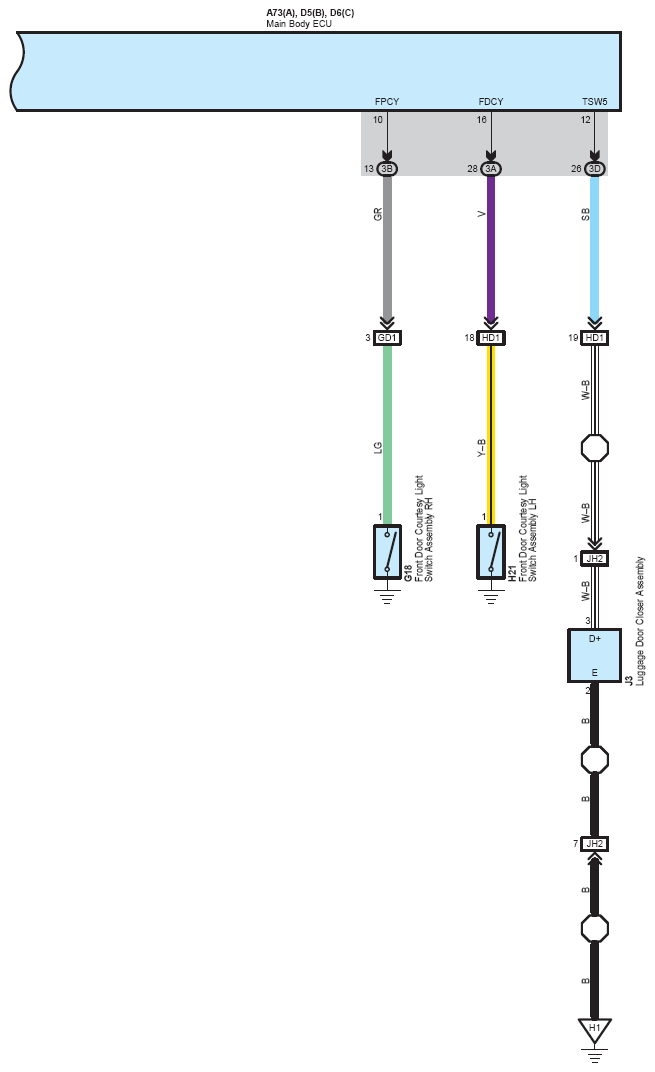

Fig 6: Automatic Light Control, Light Auto Turn Off System (6 Of 6)
G12191836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
