OEM System Circuits: Charging: Connectors

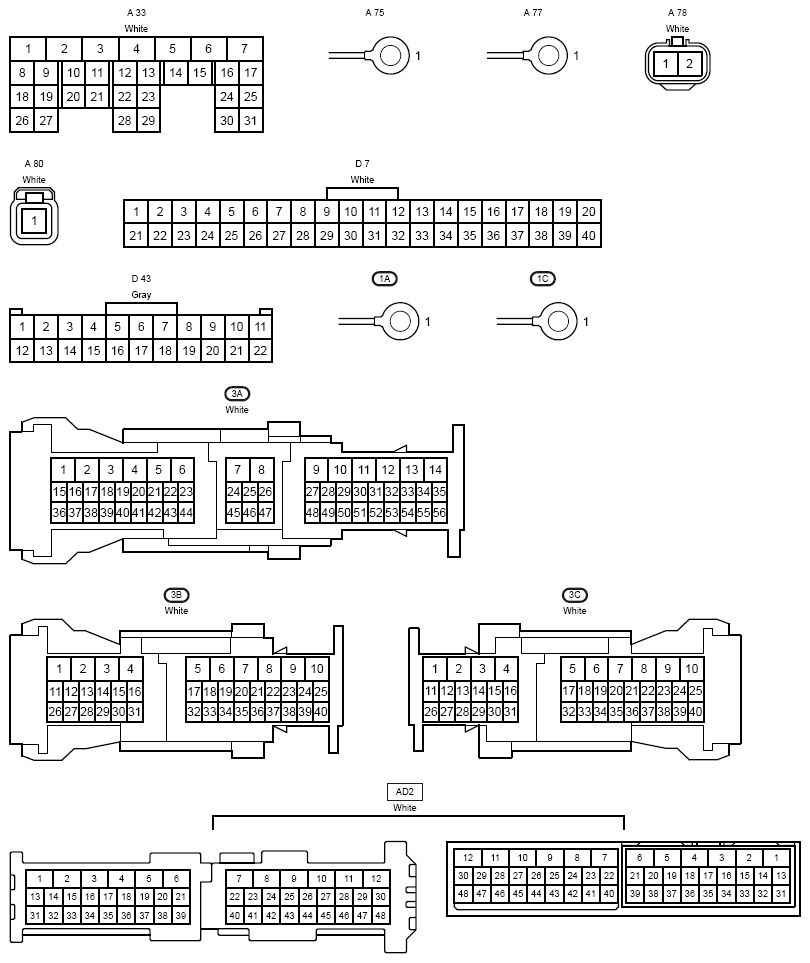

Fig 1: Connectors

G12191876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
