System Diagrams

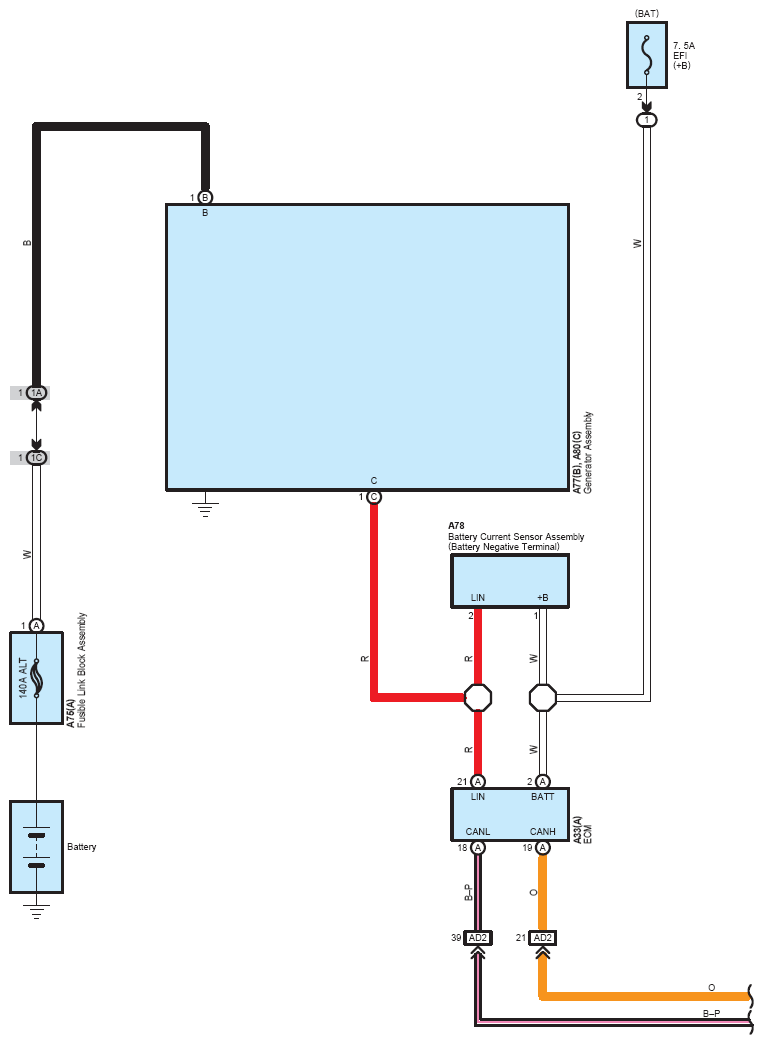

Fig 1: Charging (1 Of 2)
G12191874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

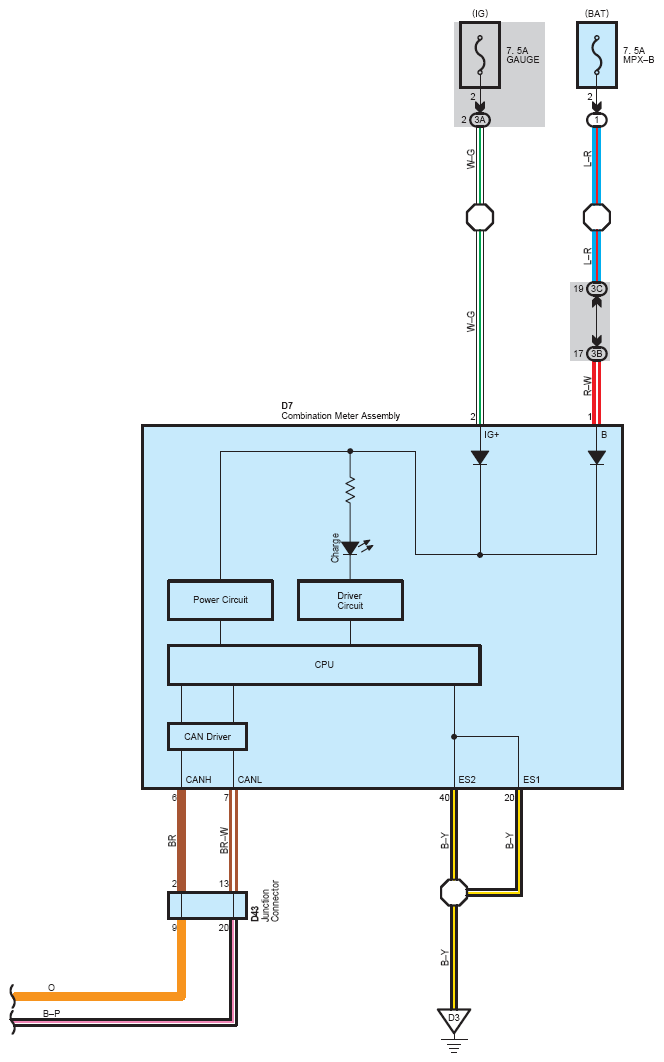

Fig 2: Charging (2 Of 2)
G12191875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
