Door Lock Control: Connectors

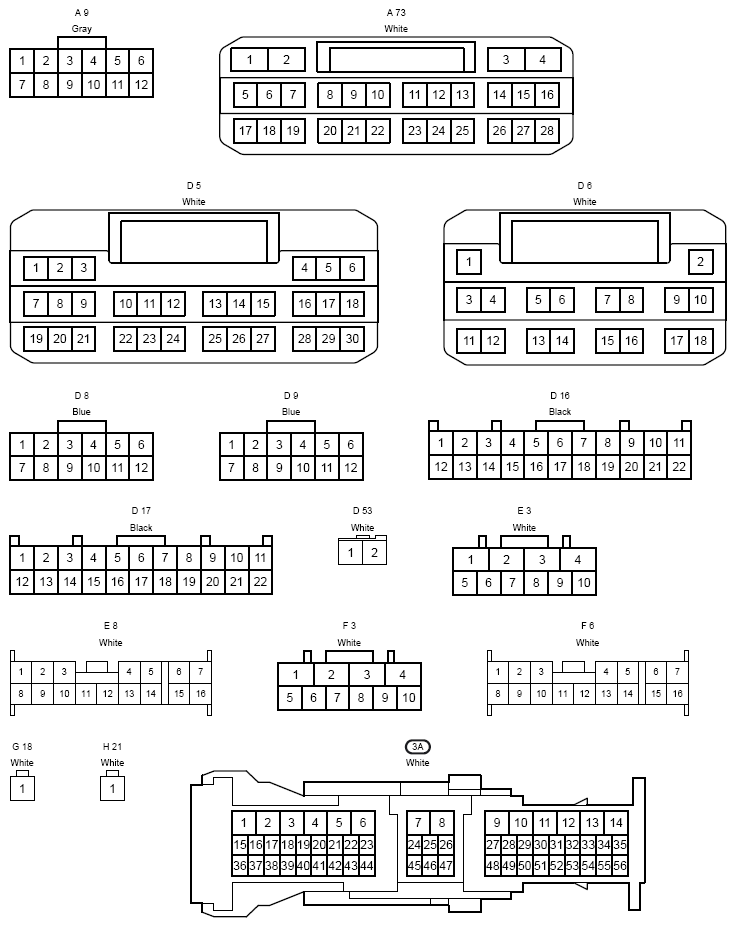

Fig 1: Connectors (1 Of 3)
G12191882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

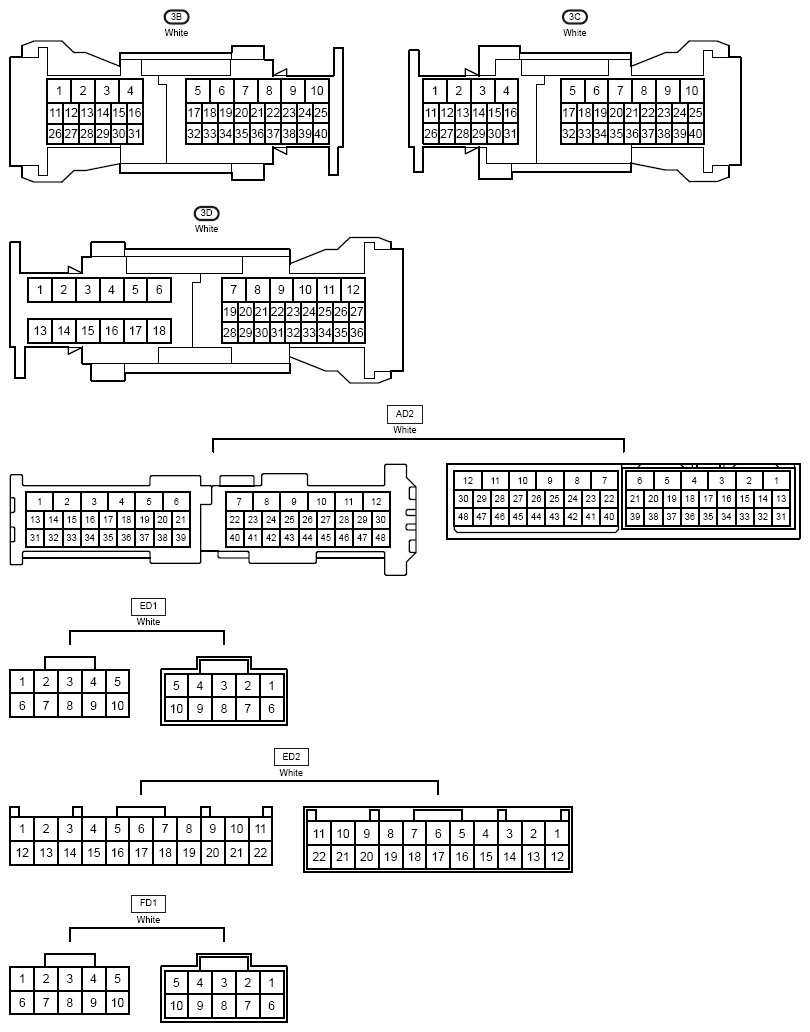

Fig 2: Connectors (2 Of 3)
G12191883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

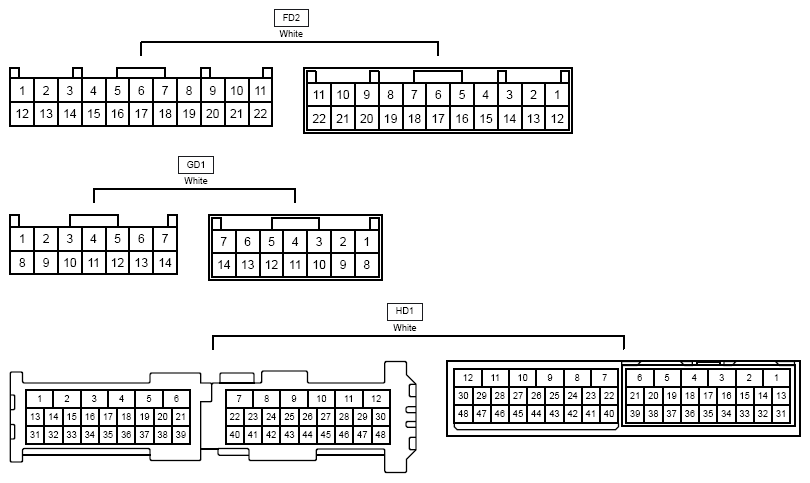

Fig 3: Connectors (3 Of 3)
G12191884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
