System Diagrams

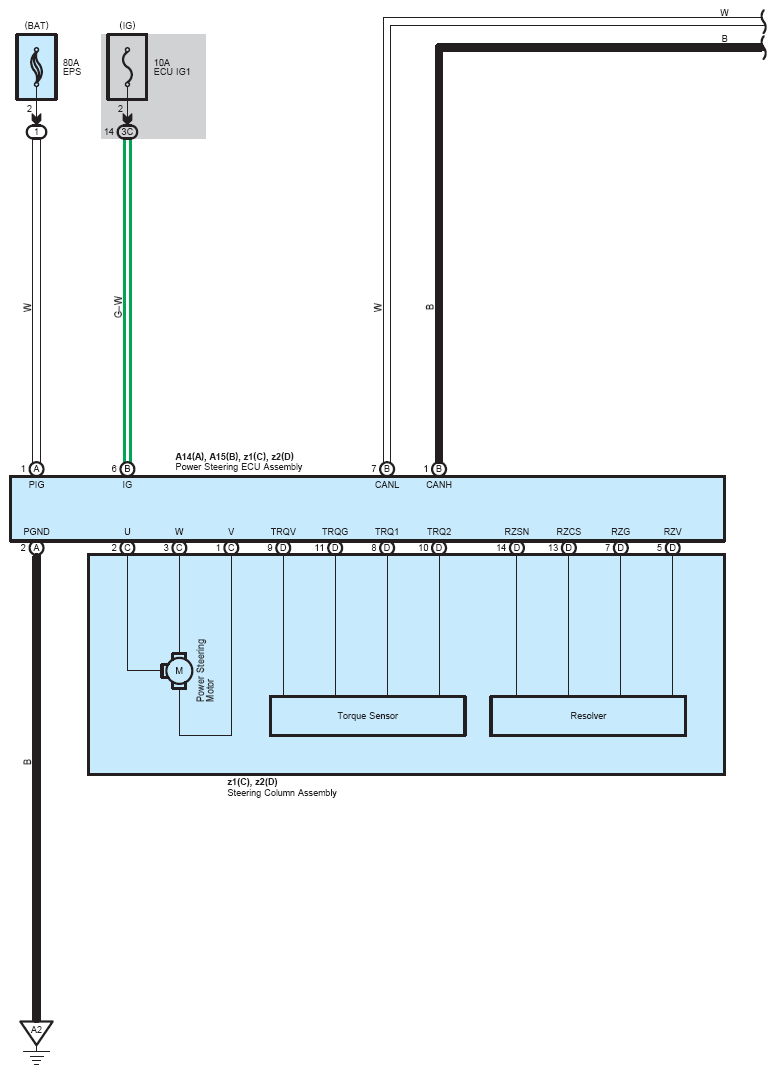

Fig 1: EPS (1 Of 5)
G12191935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

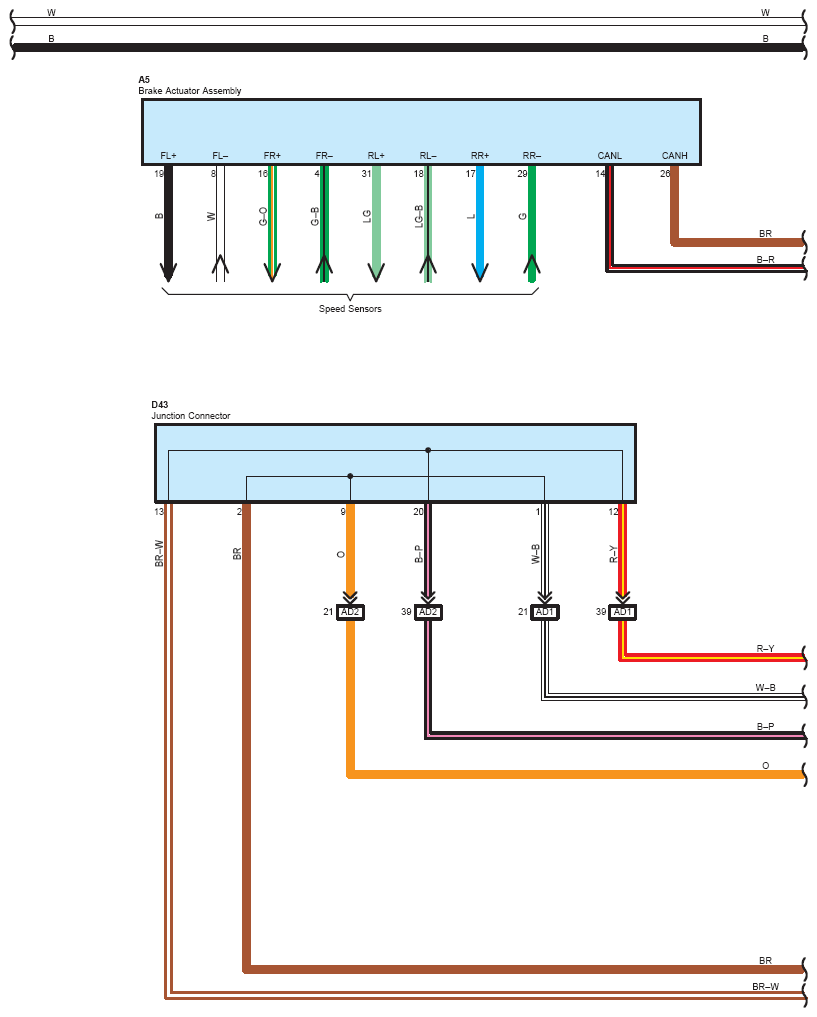

Fig 2: EPS (2 Of 5)
G12191936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

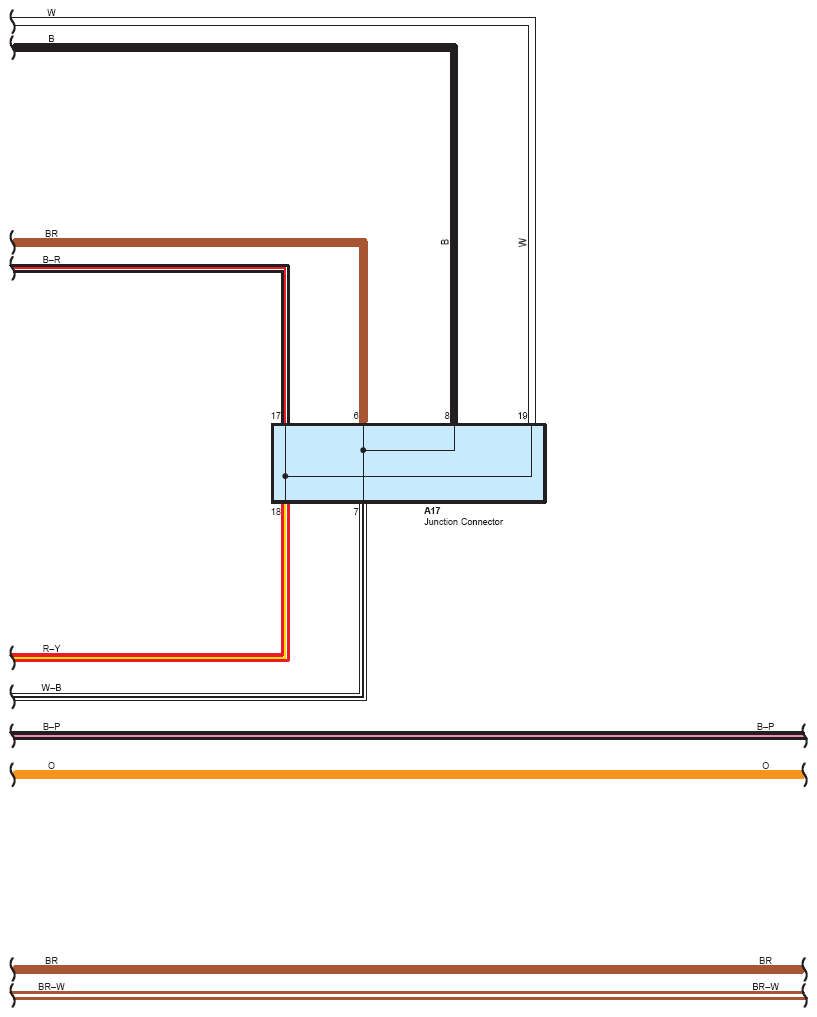

Fig 3: EPS (3 Of 5)
G12191937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

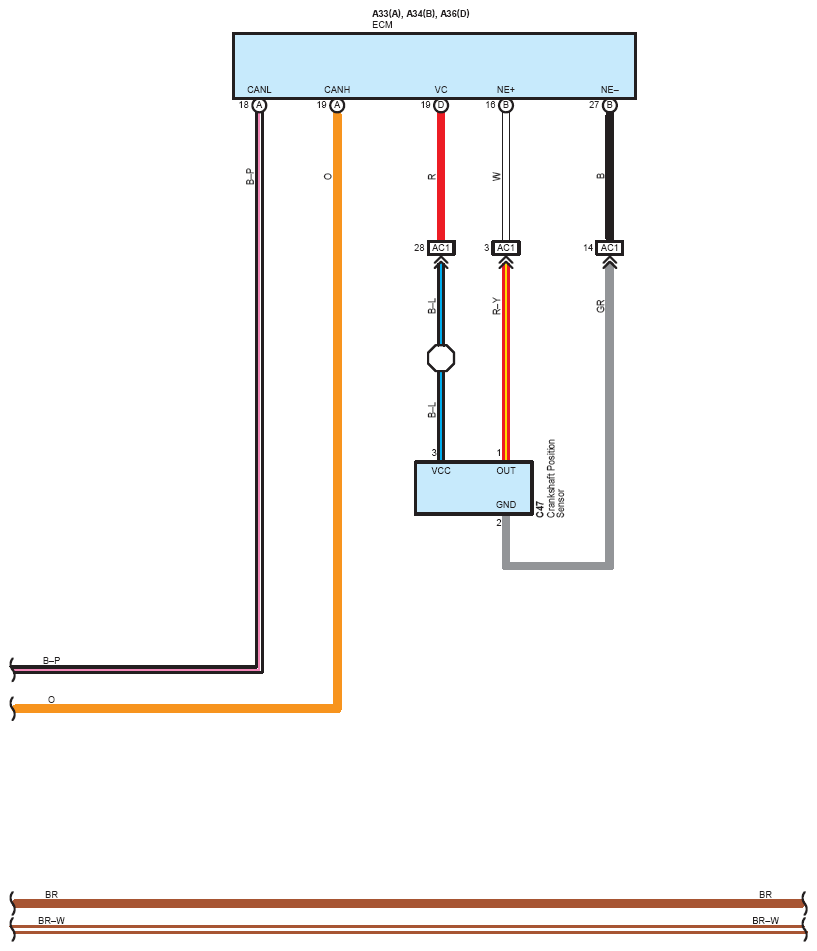

Fig 4: EPS (4 Of 5)
G12191938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

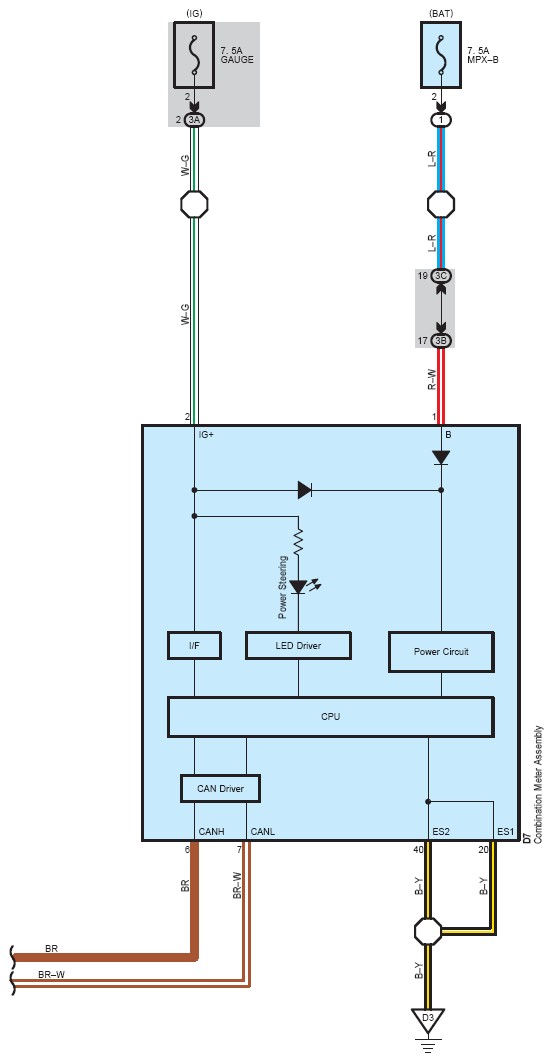

Fig 5: EPS (5 Of 5)
G12191939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
