System Diagrams

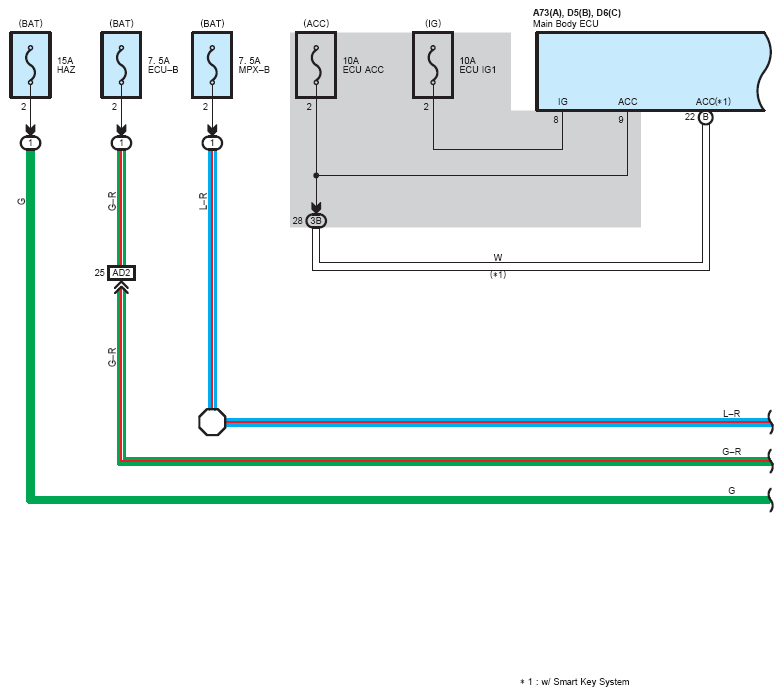

Fig 1: Interior Light (1 Of 5)
G12192020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

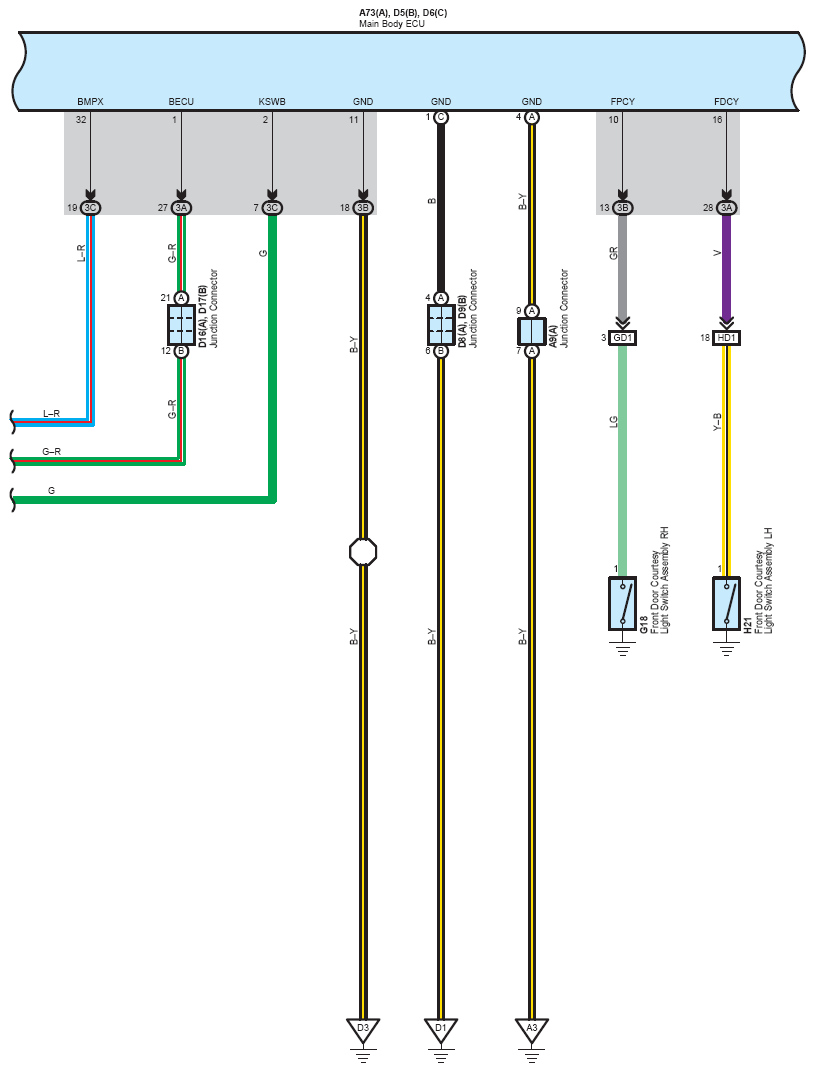

Fig 2: Interior Light (2 Of 5)
G12192021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

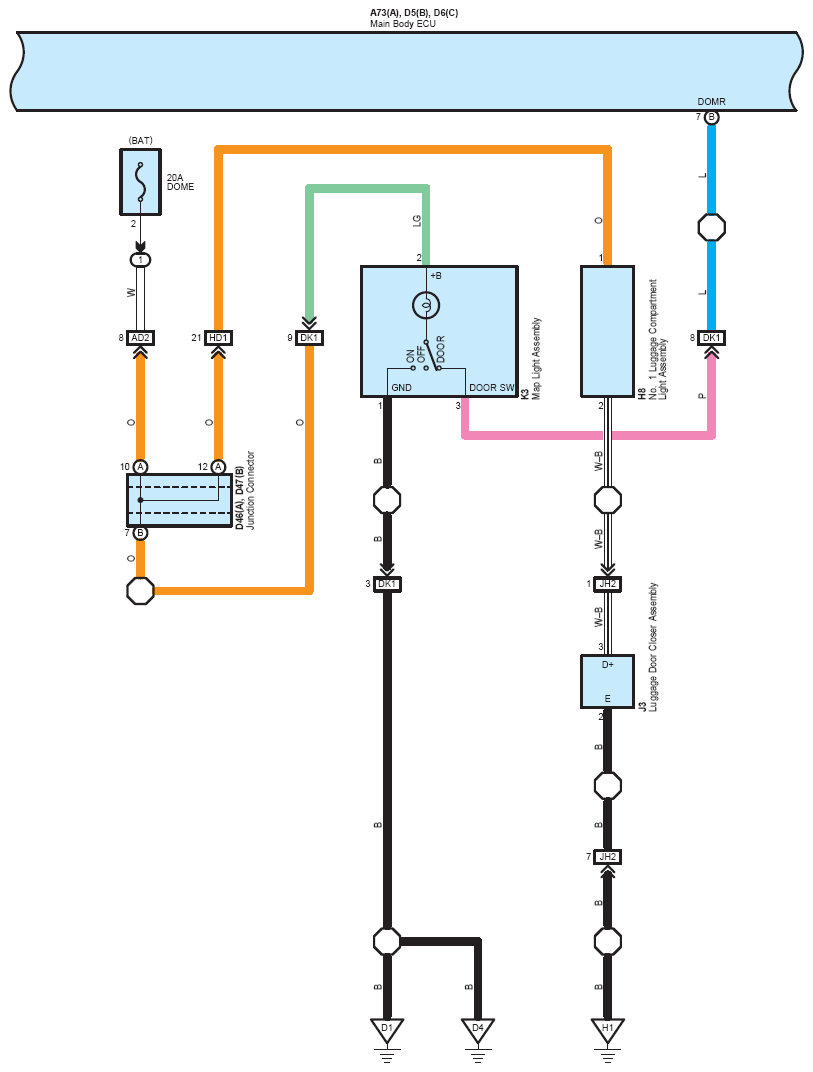

Fig 3: Interior Light (3 Of 5)
G12192022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

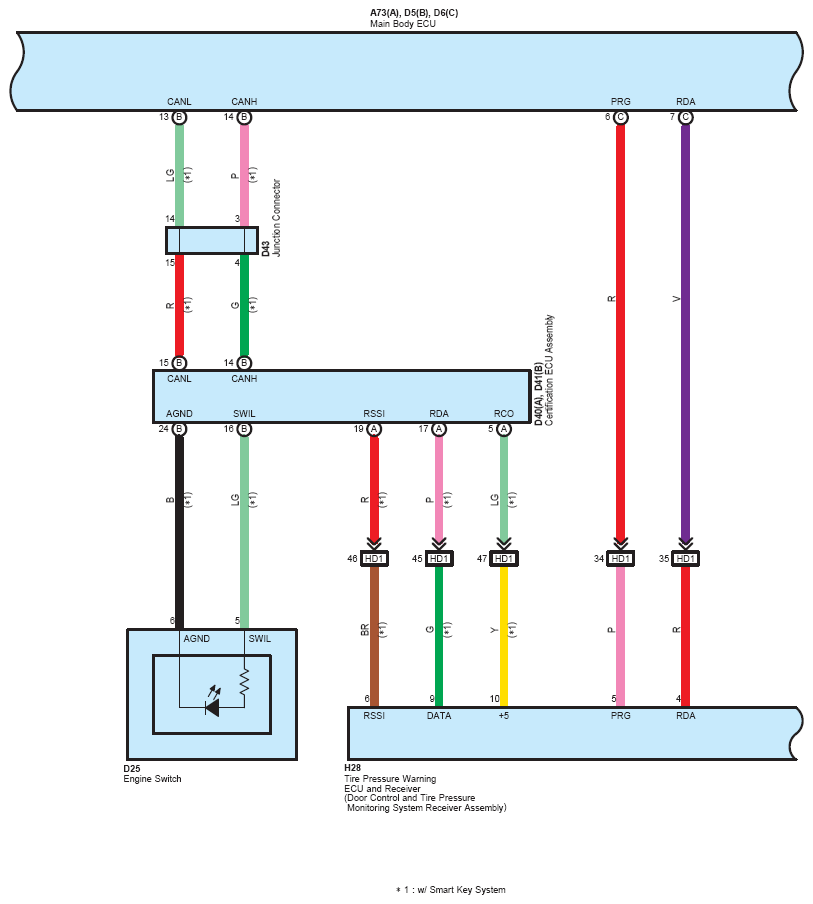

Fig 4: Interior Light (4 Of 5)
G12192023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

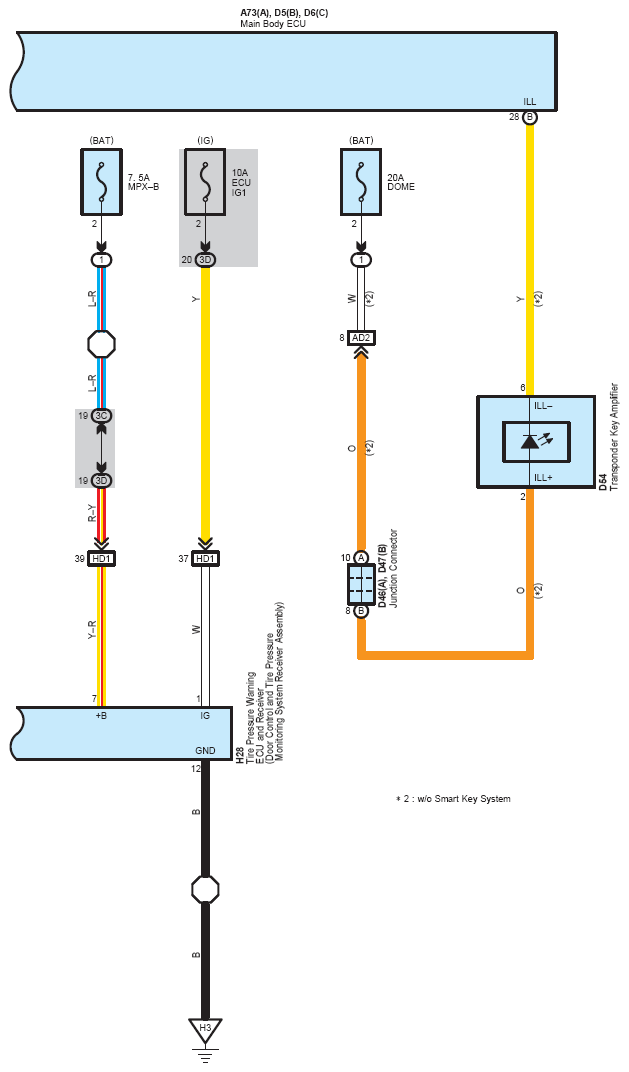

Fig 5: Interior Light (5 Of 5)
G12192024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
