System Diagrams

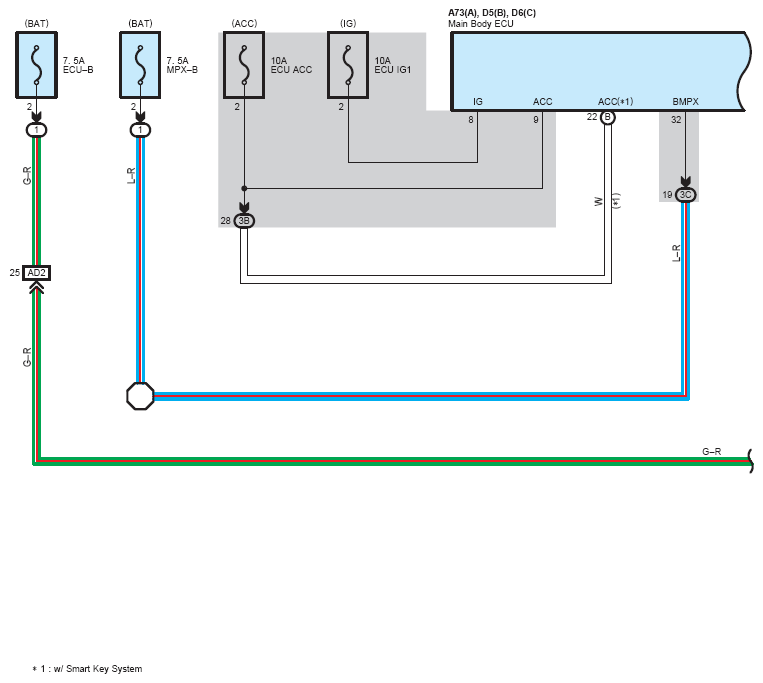

Fig 1: Power Window (1 Of 5)
G12192062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

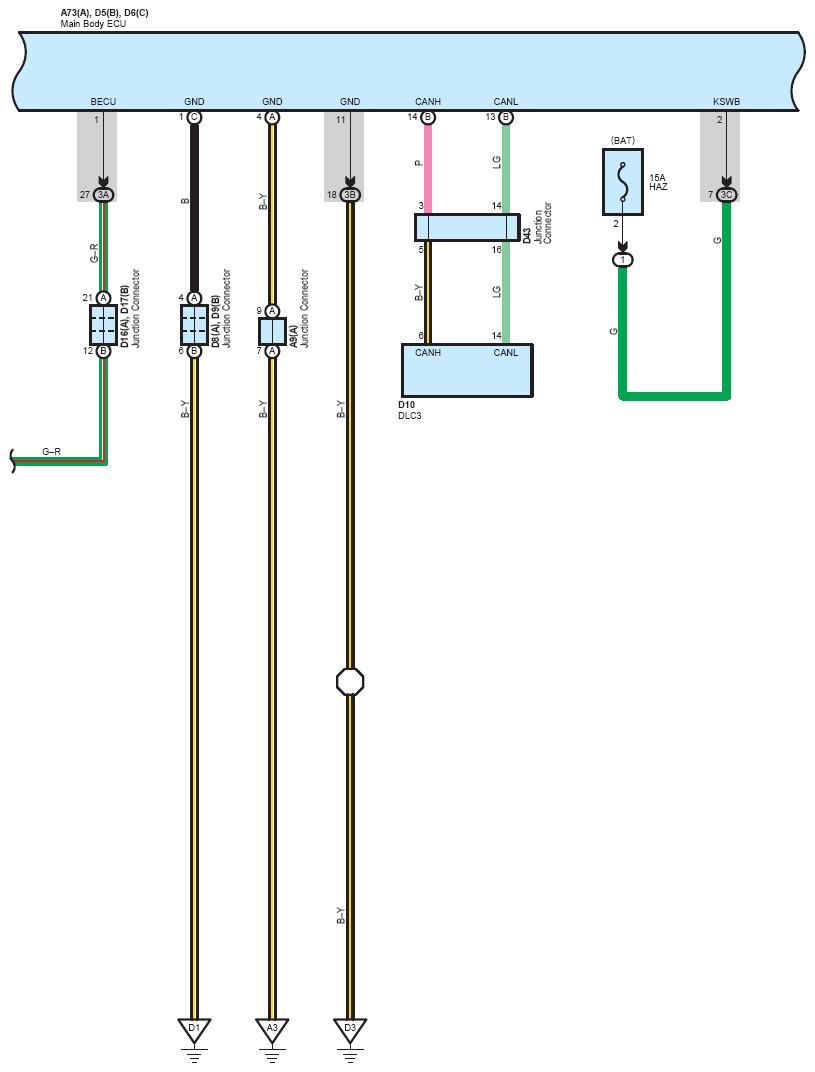

Fig 2: Power Window (2 Of 5)
G12192063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

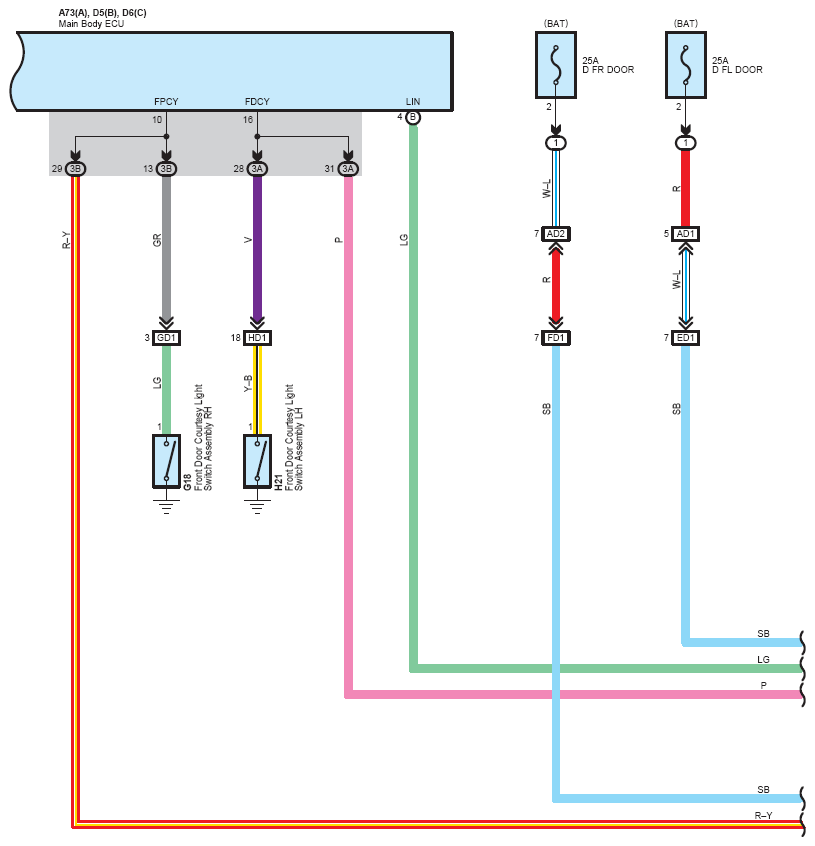

Fig 3: Power Window (3 Of 5)
G12192064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

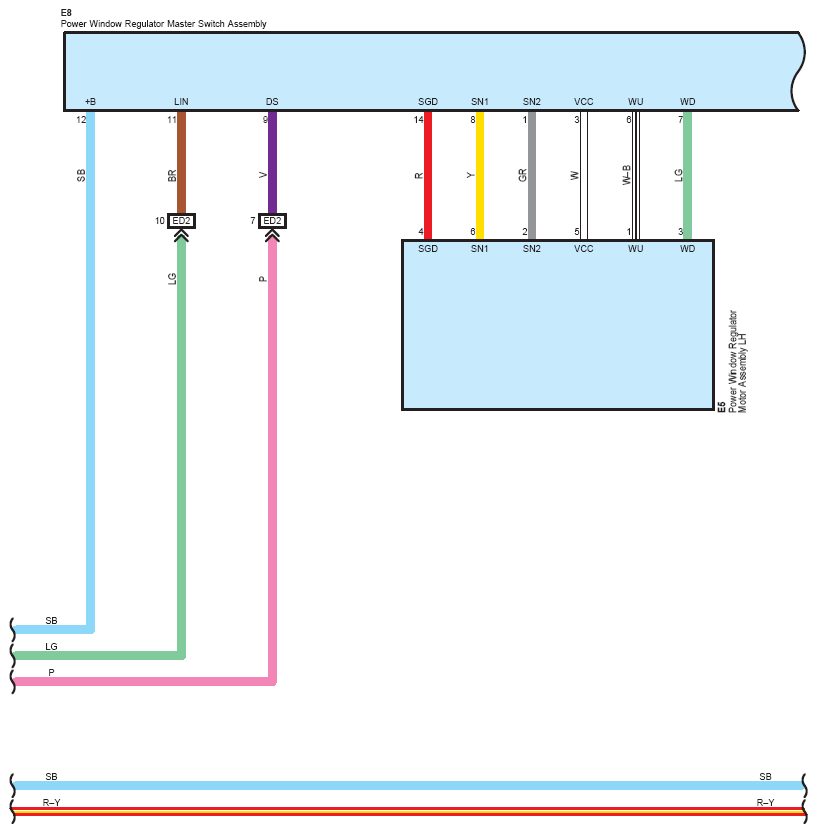

Fig 4: Power Window (4 Of 5)
G12192065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

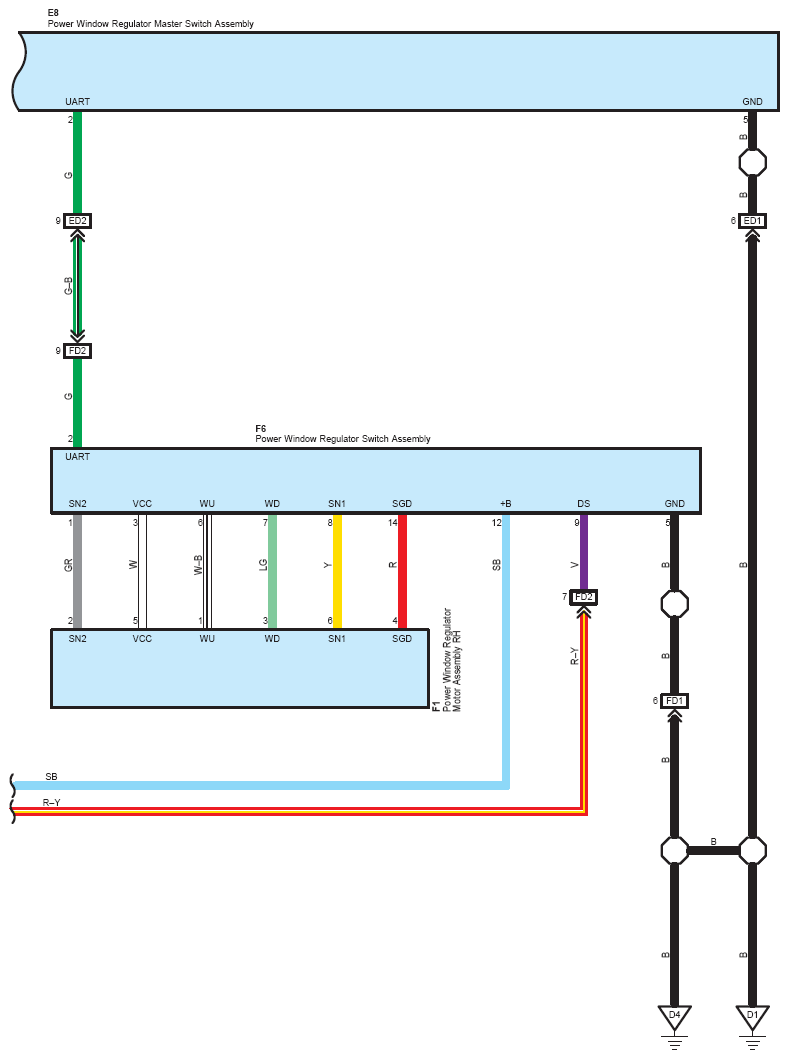

Fig 5: Power Window (5 Of 5)
G12192066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
