Prius Prime Advanced
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Plug-In Charge Control System - Circuit & System Tests
>>
Plug-In Charge Control System
>>
Circuit Tests
>>
Control Pilot Signal Circuit [09/2016 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

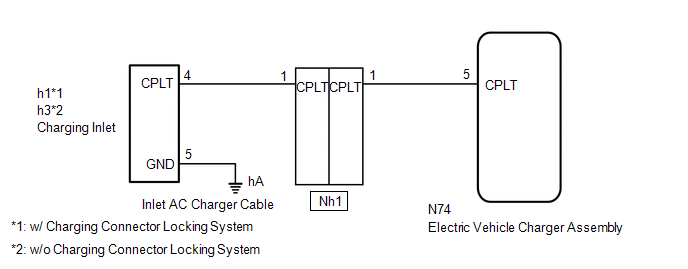

Control Pilot Signal Circuit [09/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
