AC Line Insulation Malfunction [09/2016 - ]: Description

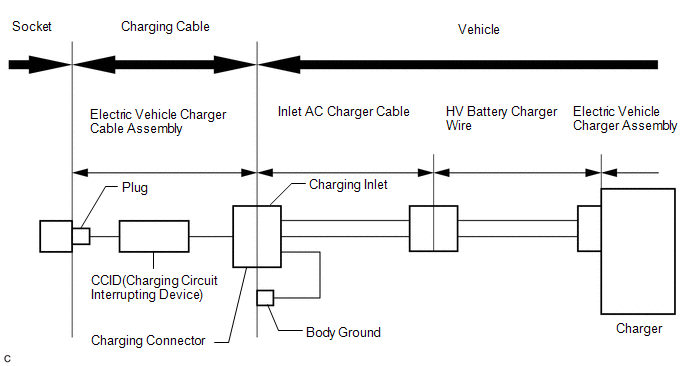

The CCID (Charging Circuit Interrupting Device) built into the electric vehicle charger cable assembly detects insulation malfunctions in the AC line between the CCID and electric vehicle charger assembly.

GTY686467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
