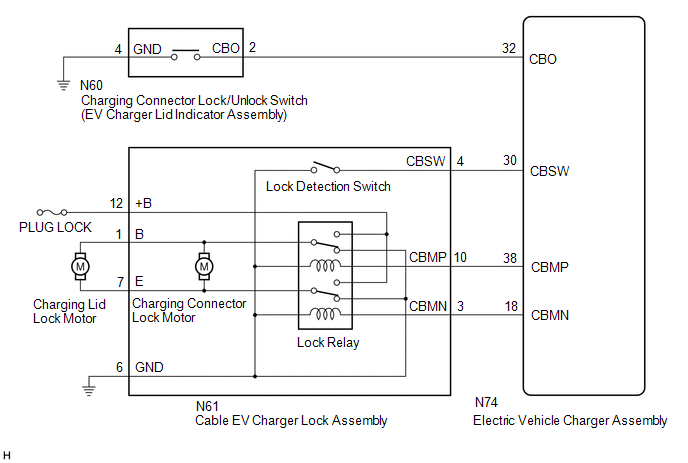

Cannot Lock Charging Connector [09/2016 - 05/2019]: Wiring Diagram
Refer to the wiring diagram for PISW circuit.
Refer to WIRING DIAGRAM
Refer to the wiring diagram for Control Pilot Signal Circuit.
Refer to WIRING DIAGRAM
Refer to the wiring diagram for PISW circuit.
Refer to WIRING DIAGRAM
Refer to the wiring diagram for Control Pilot Signal Circuit.
Refer to WIRING DIAGRAM
