System Diagrams

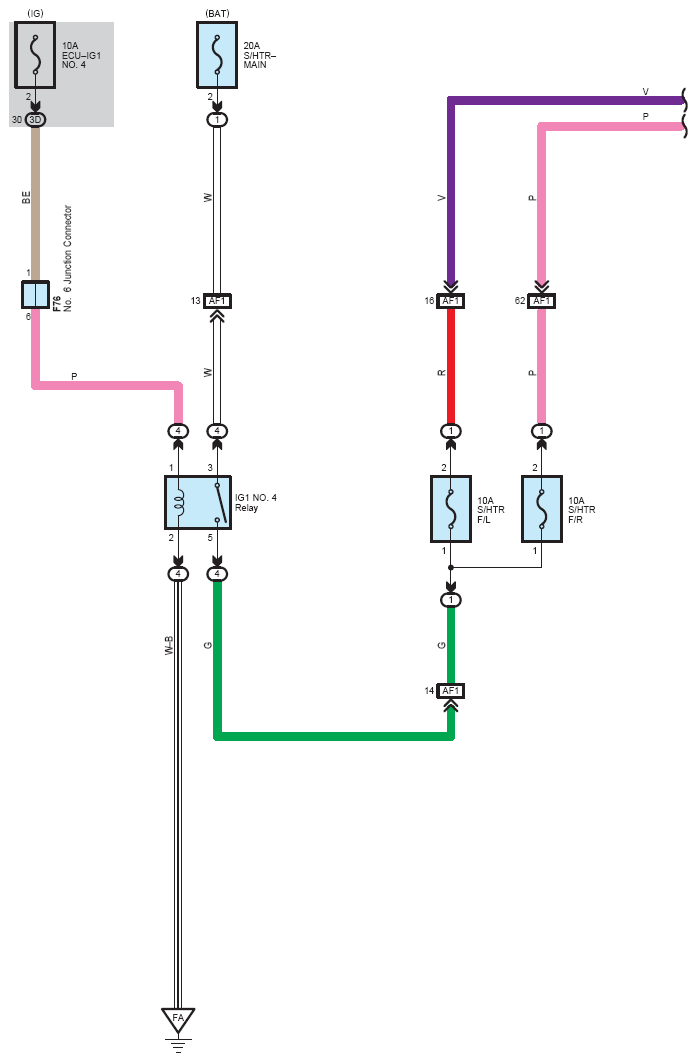

Fig 1: Seat Heater (1 Of 4)
G12208437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

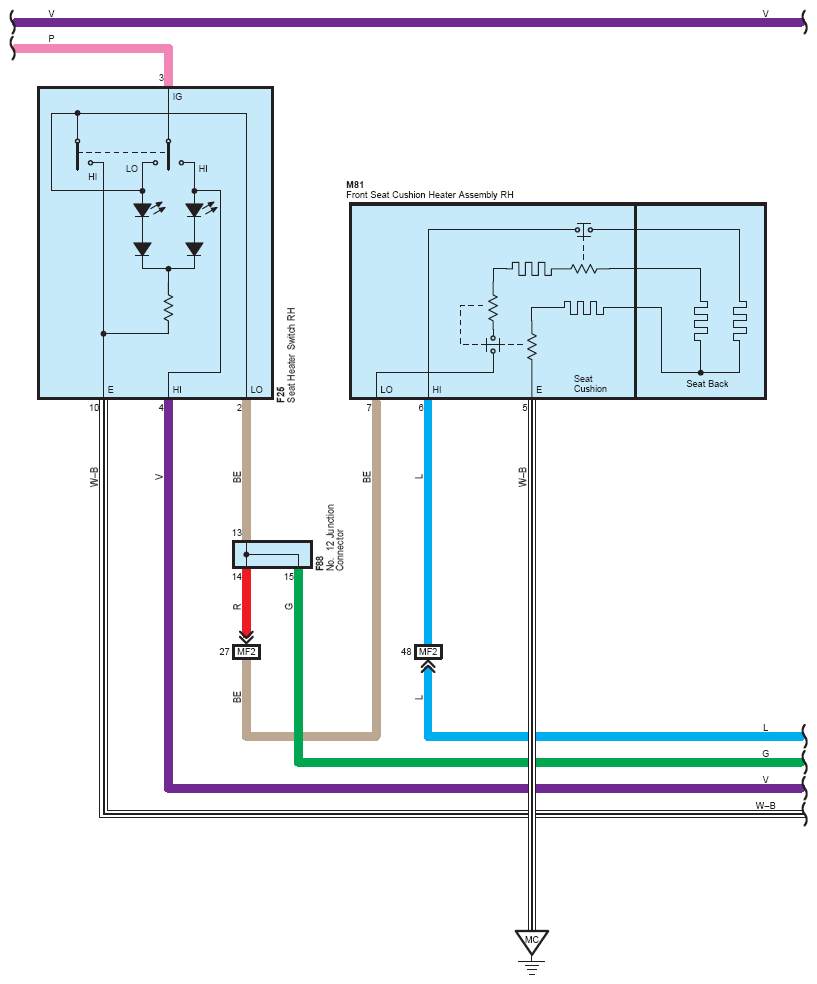

Fig 2: Seat Heater (2 Of 4)
G12208438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

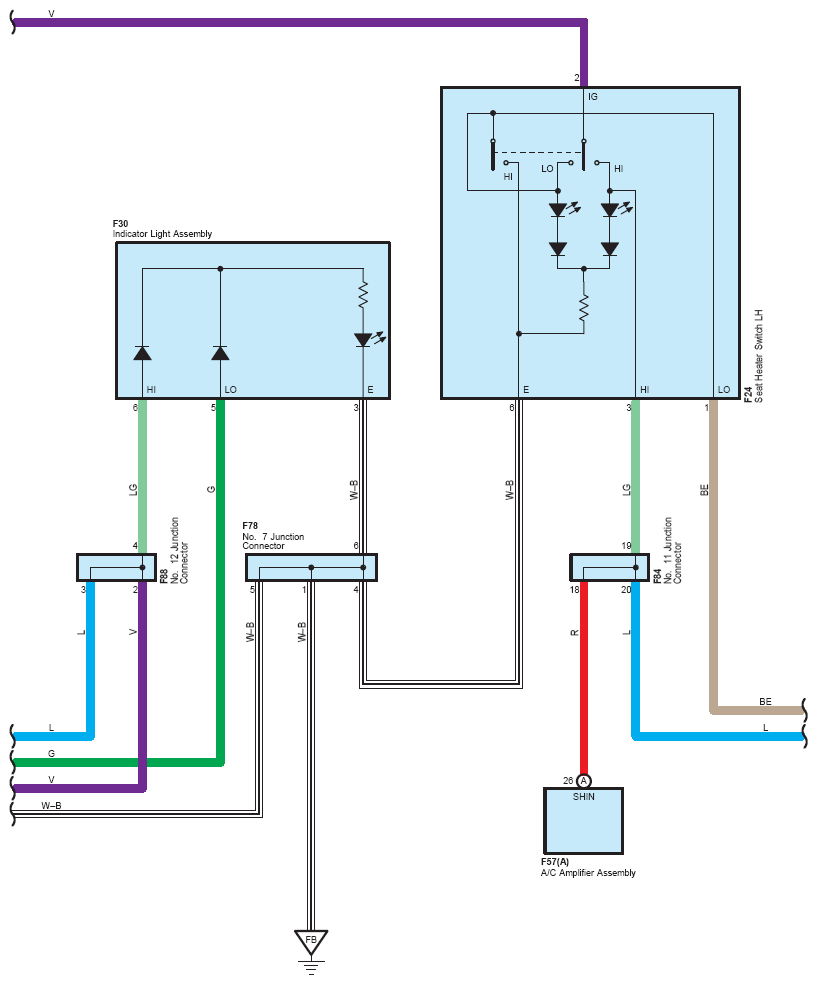

Fig 3: Seat Heater (3 Of 4)
G12208439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

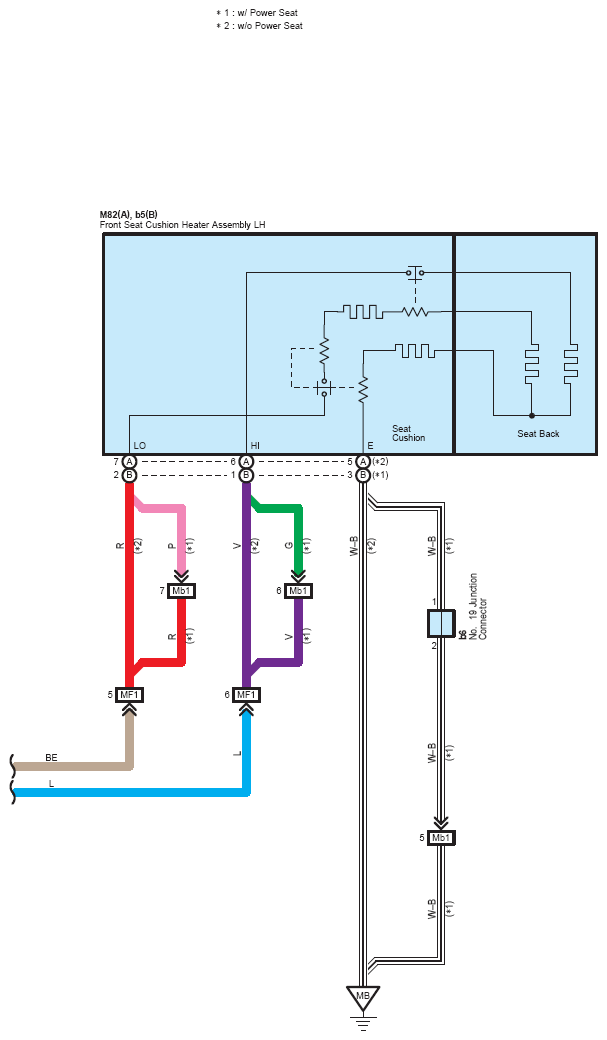

Fig 4: Seat Heater (4 Of 4)
G12208440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
