System Diagrams

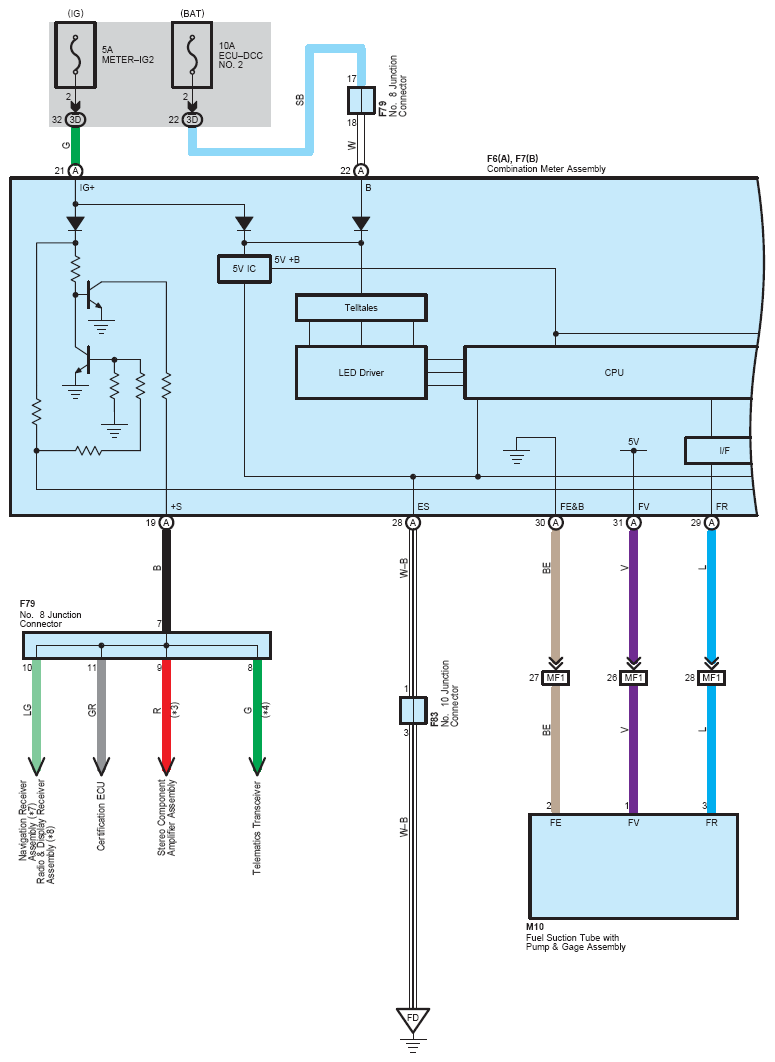

Fig 1: Combination Meter (1 Of 10)
G12208100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

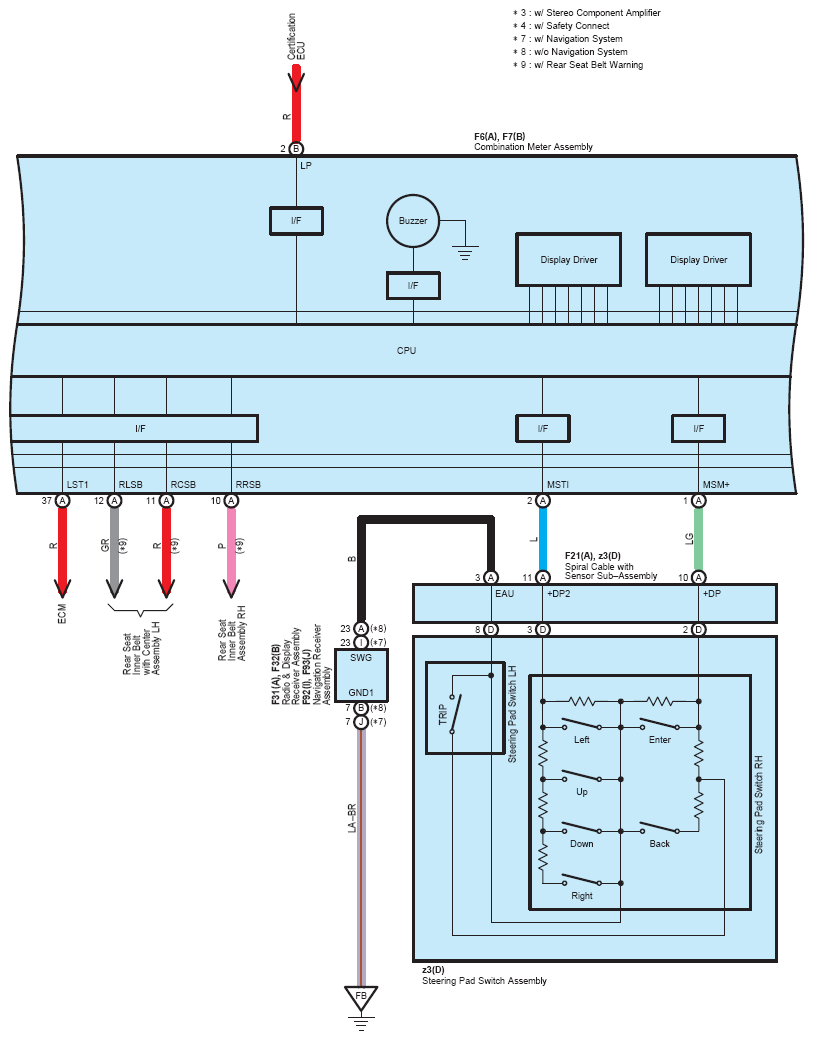

Fig 2: Combination Meter (2 Of 10)
G12208101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

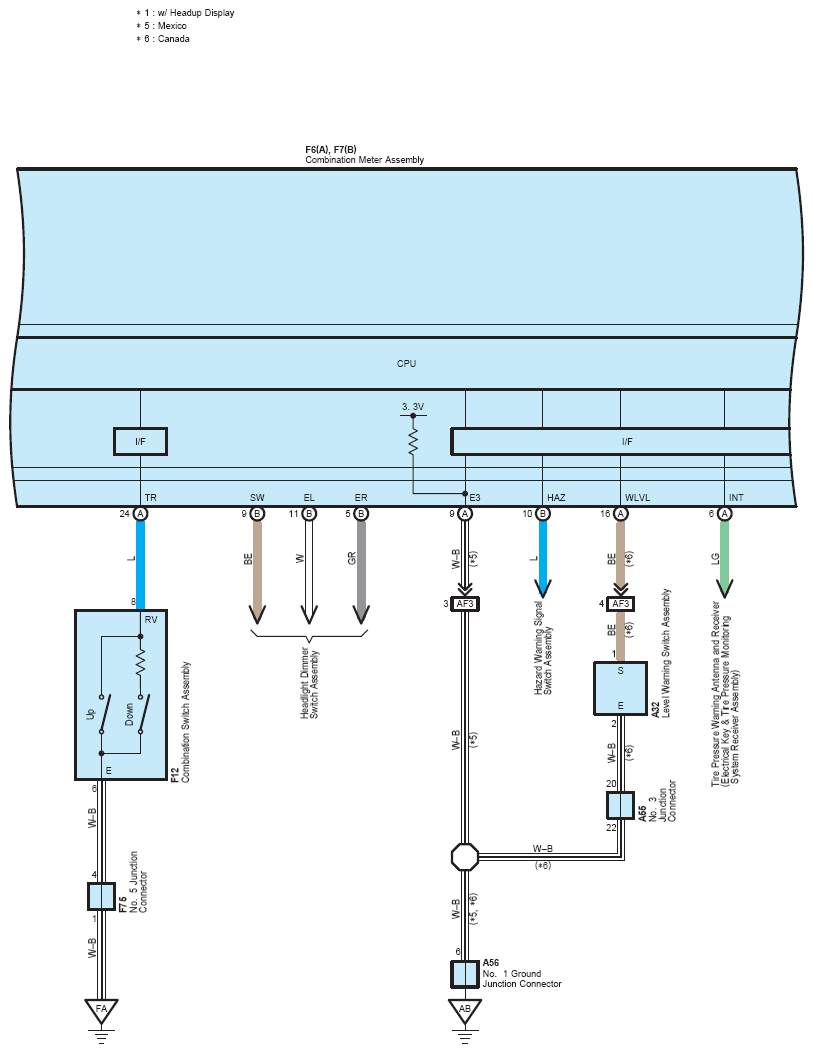

Fig 3: Combination Meter (3 Of 10)
G12208102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

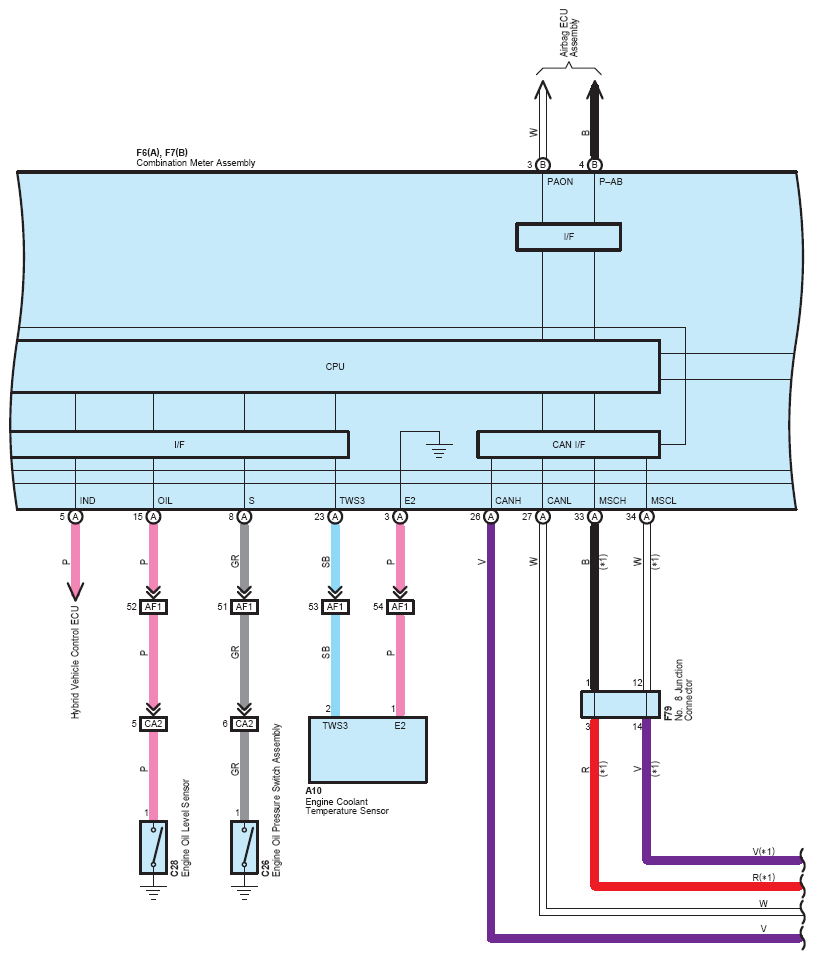

Fig 4: Combination Meter (4 Of 10)
G12208103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

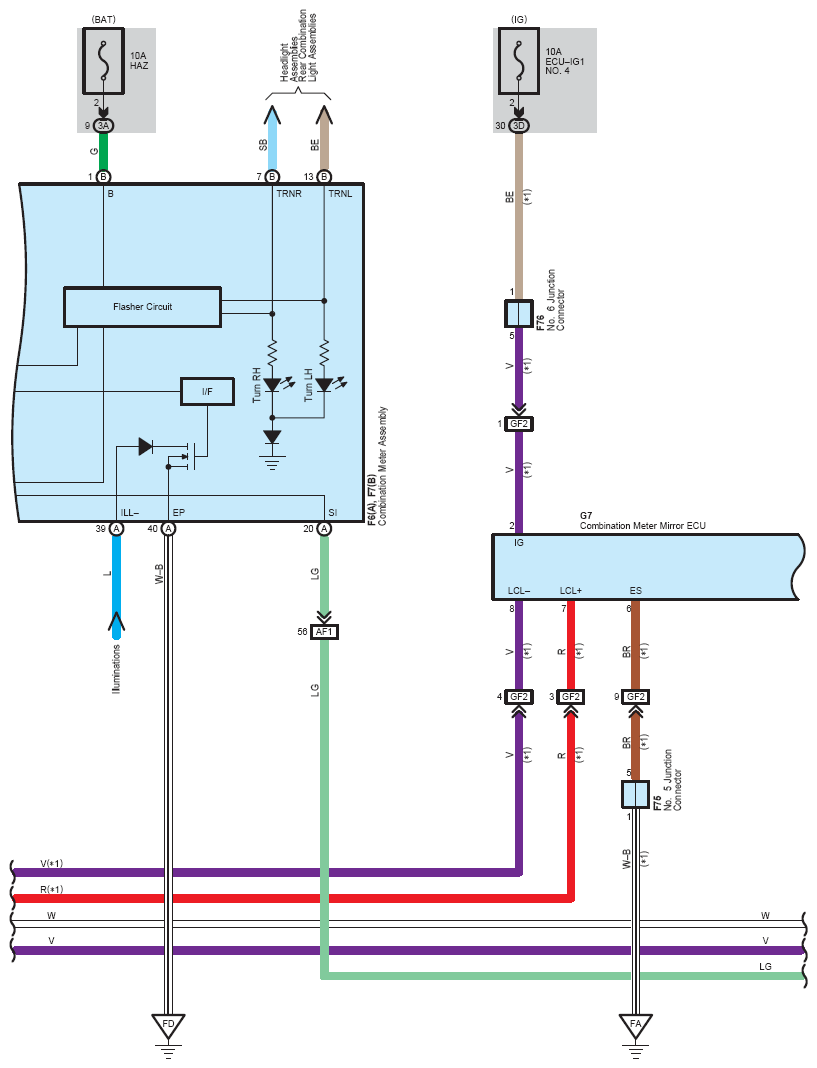

Fig 5: Combination Meter (5 Of 10)
G12208104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

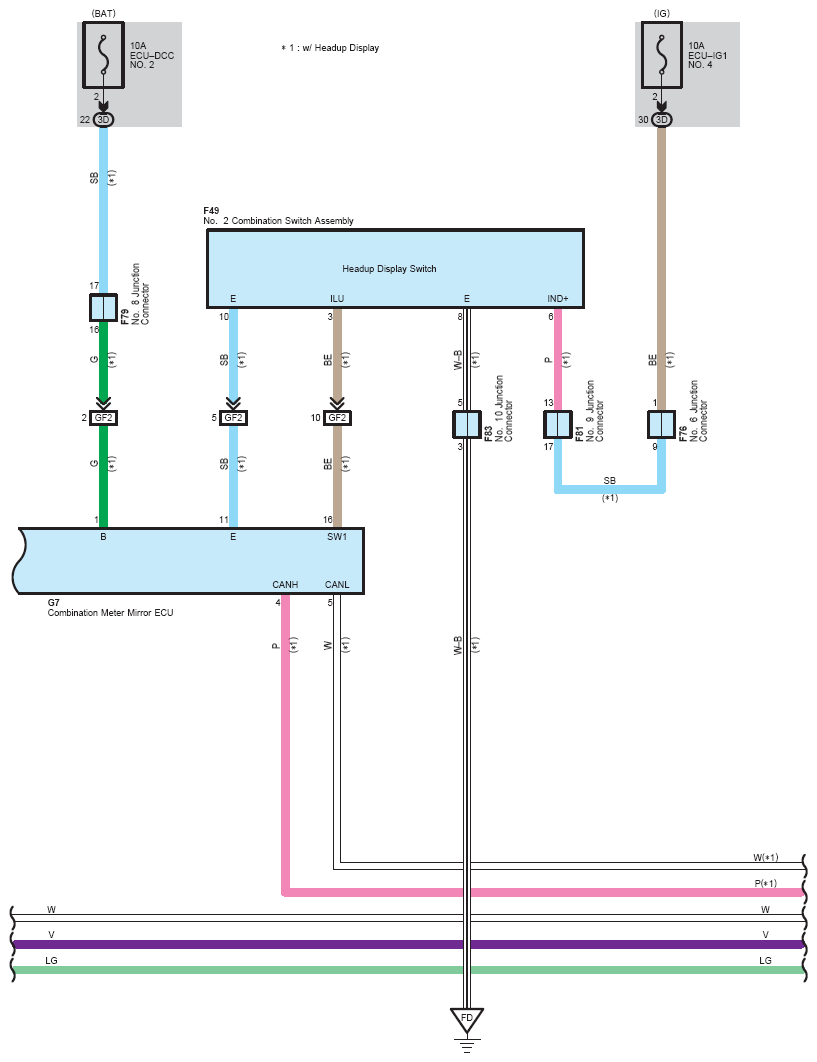

Fig 6: Combination Meter (6 Of 10)
G12208105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

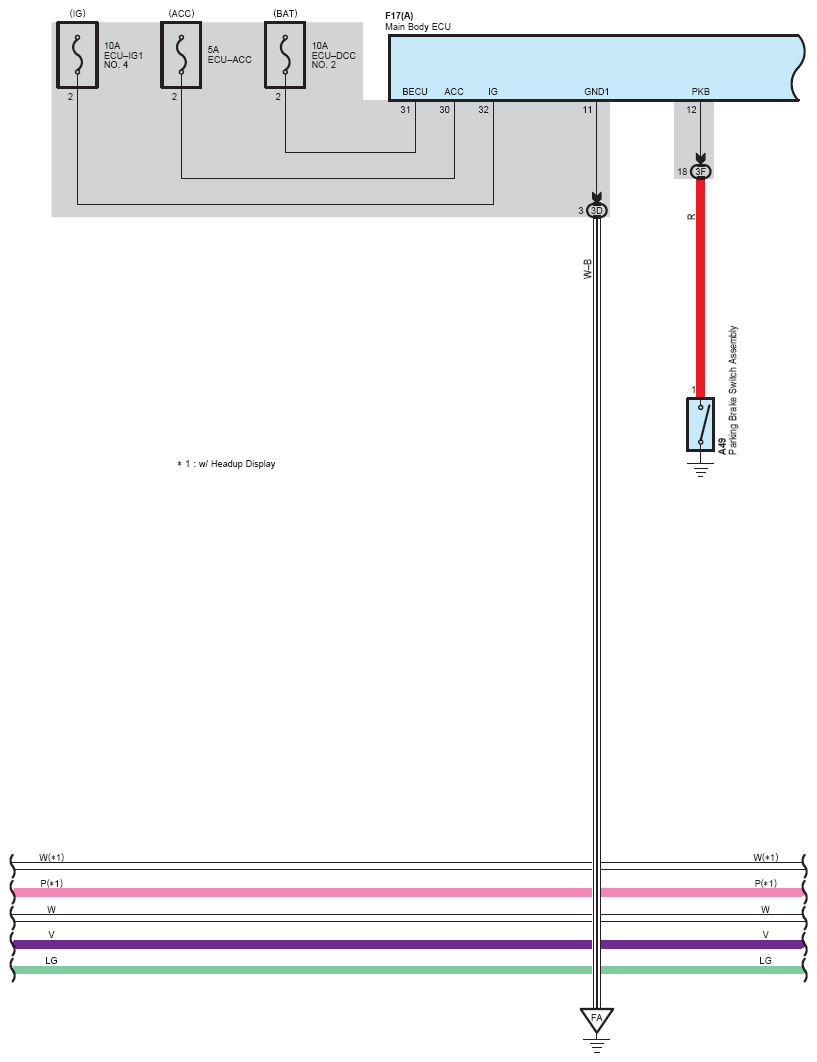

Fig 7: Combination Meter (7 Of 10)
G12208106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

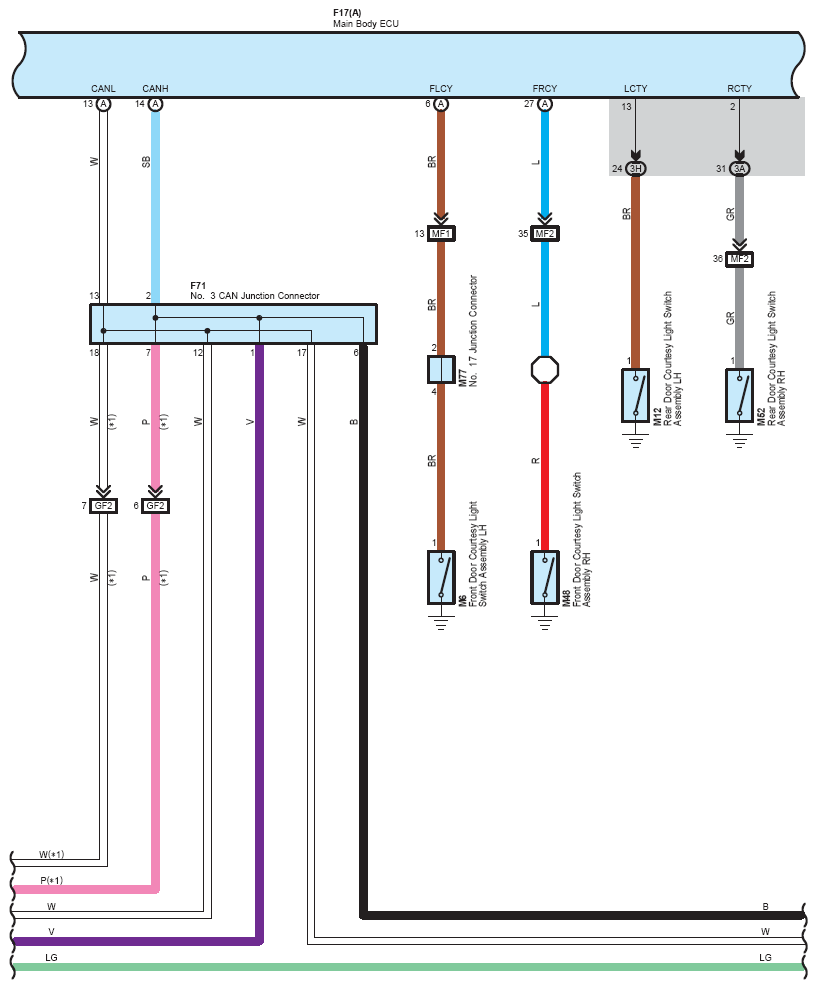

Fig 8: Combination Meter (8 Of 10)
G12208107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

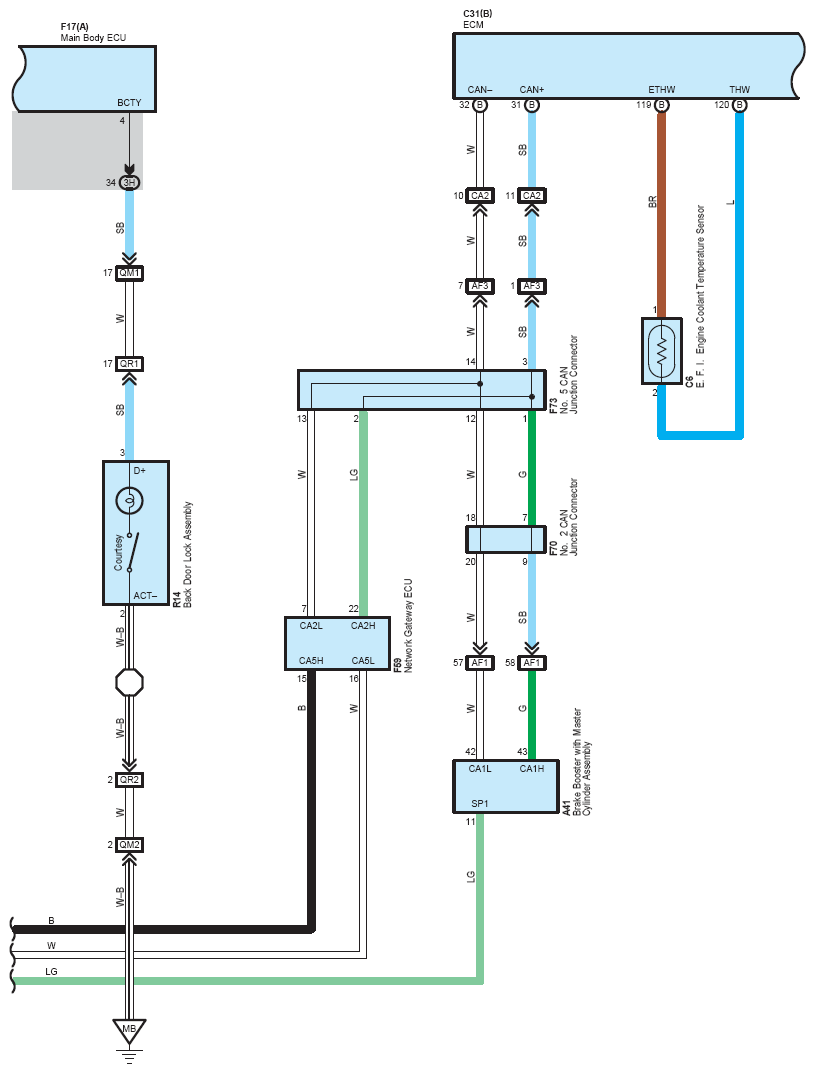

Fig 9: Combination Meter (9 Of 10)
G12208108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

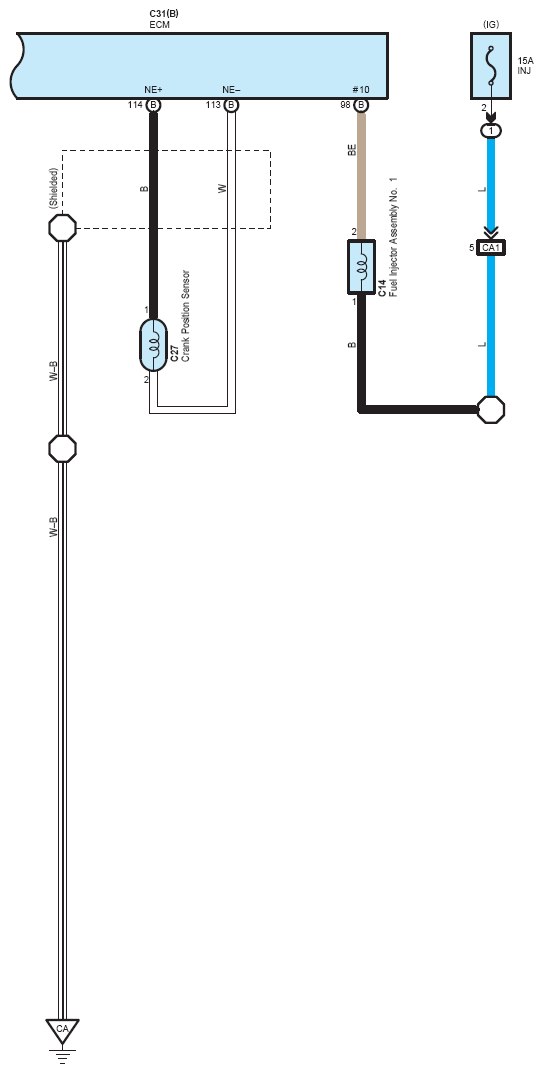

Fig 10: Combination Meter (10 Of 10)
G12208109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
