OEM System Circuits: EPS: Connectors

Fig 1: Connectors (1 Of 3)
G12208181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

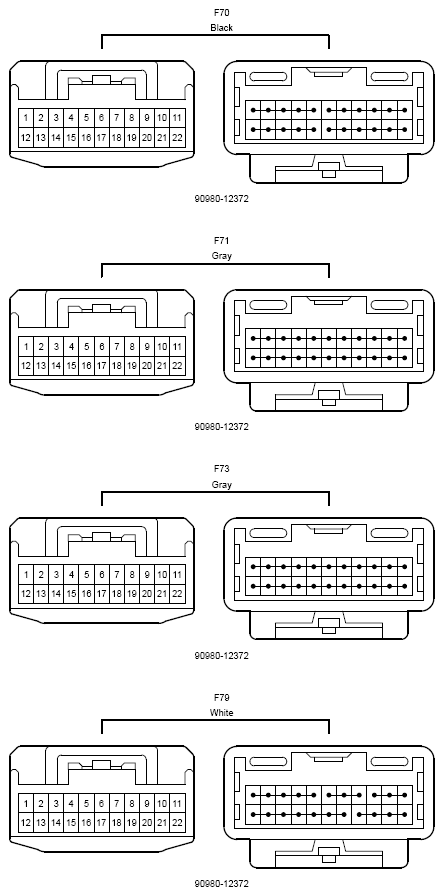

Fig 2: Connectors (2 Of 3)
G12208182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

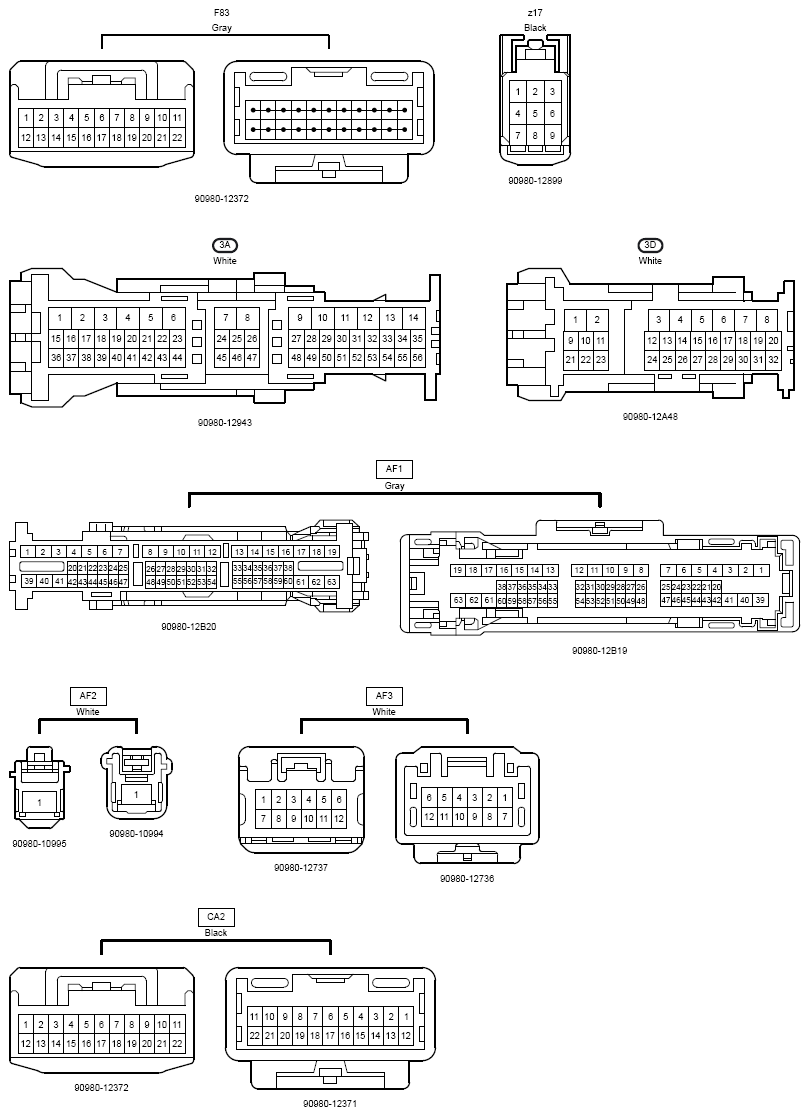

Fig 3: Connectors (3 Of 3)
G12208183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
