System Diagrams

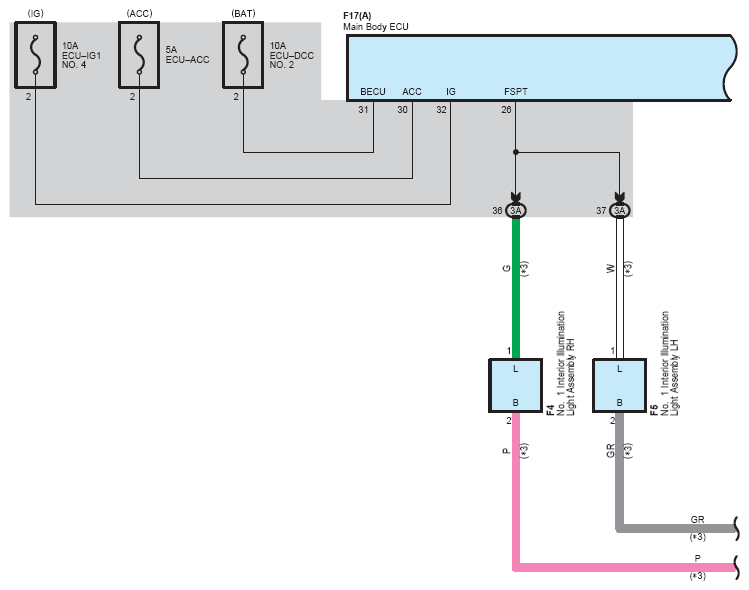

Fig 1: Interior Light (1 Of 6)
G12208313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

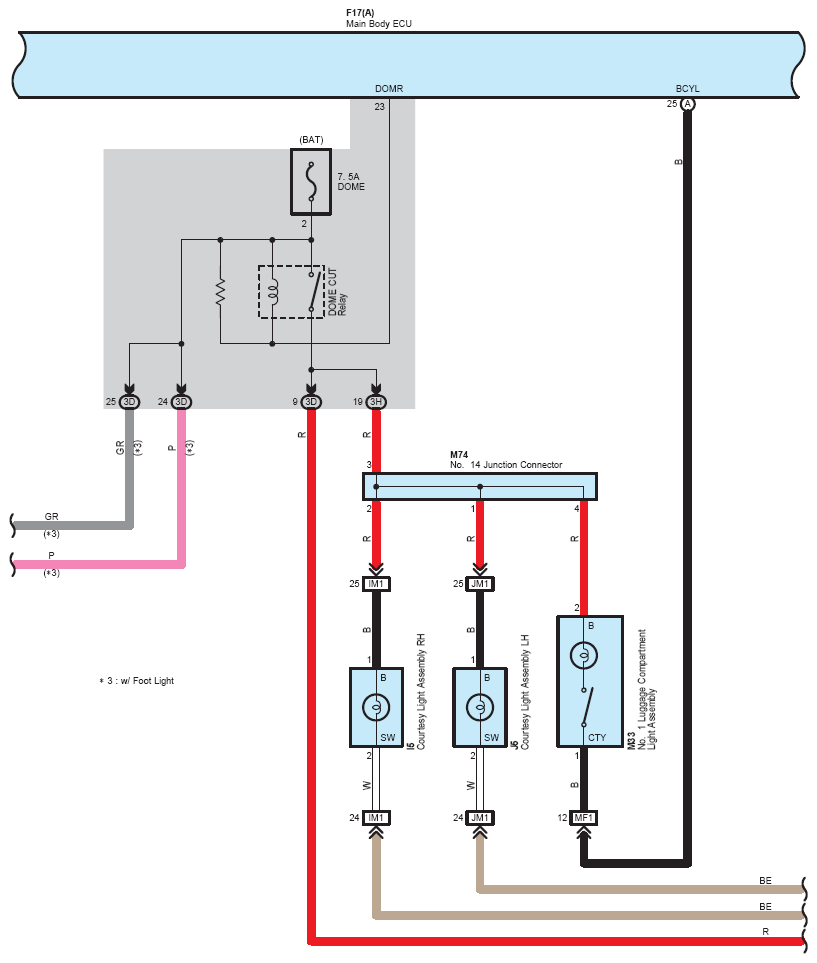

Fig 2: Interior Light (2 Of 6)
G12208314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

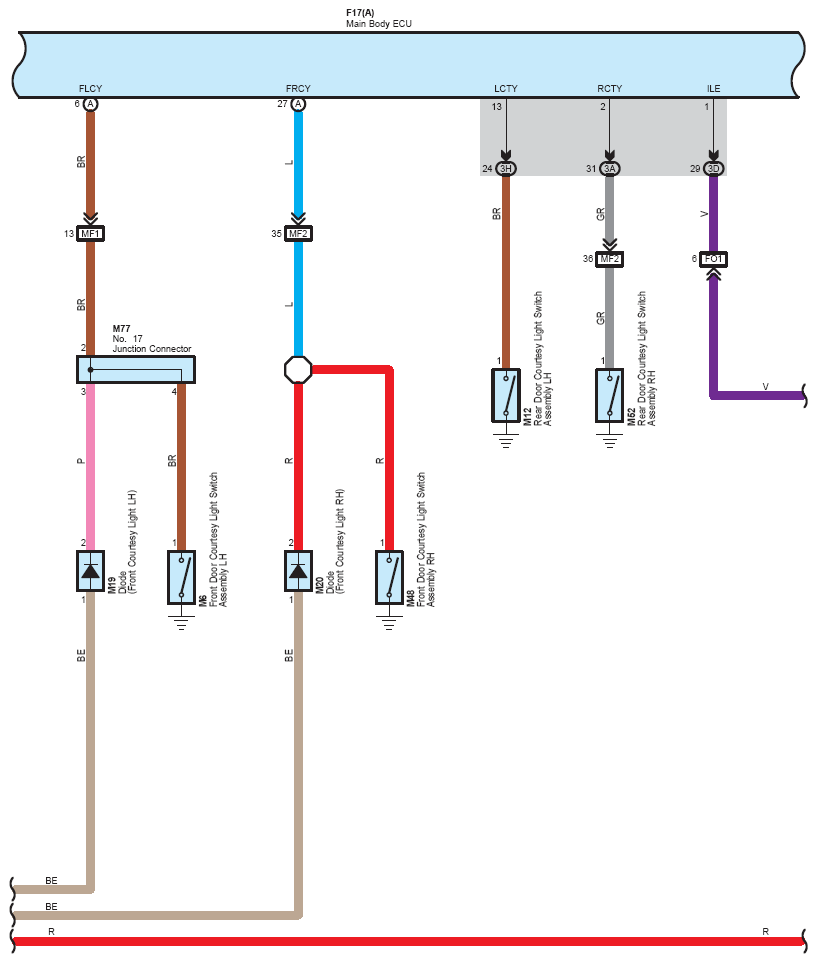

Fig 3: Interior Light (3 Of 6)
G12208315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

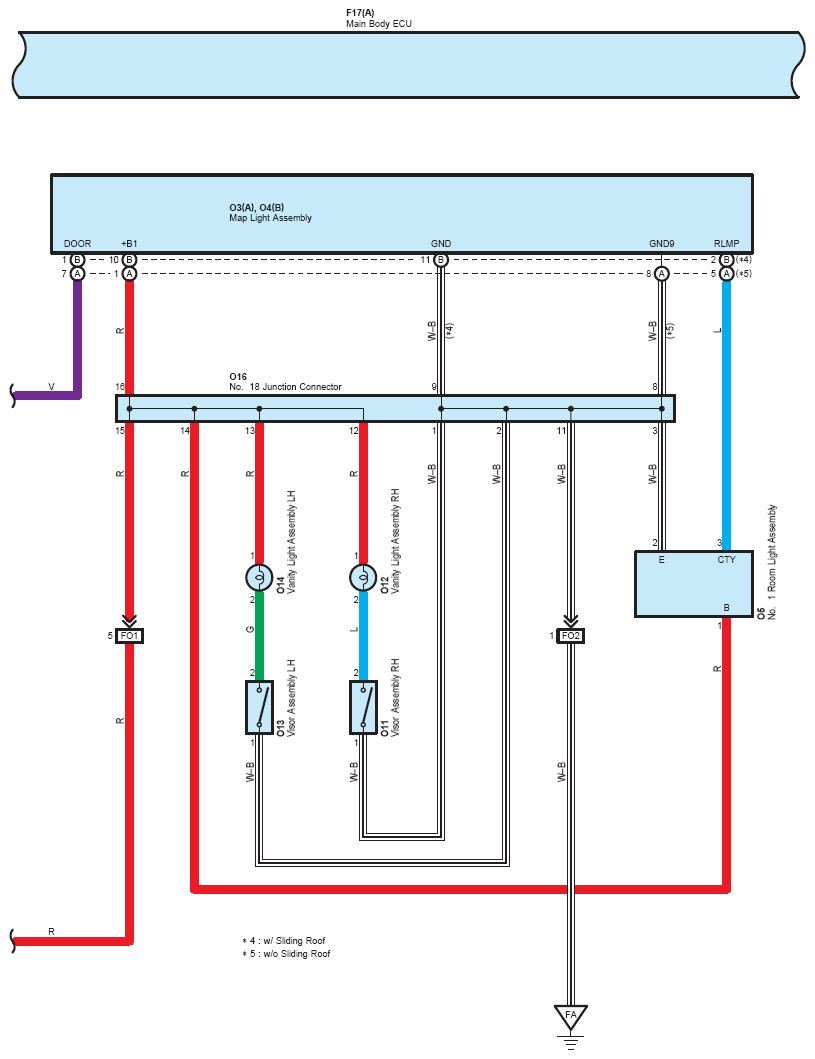

Fig 4: Interior Light (4 Of 6)
G12208316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

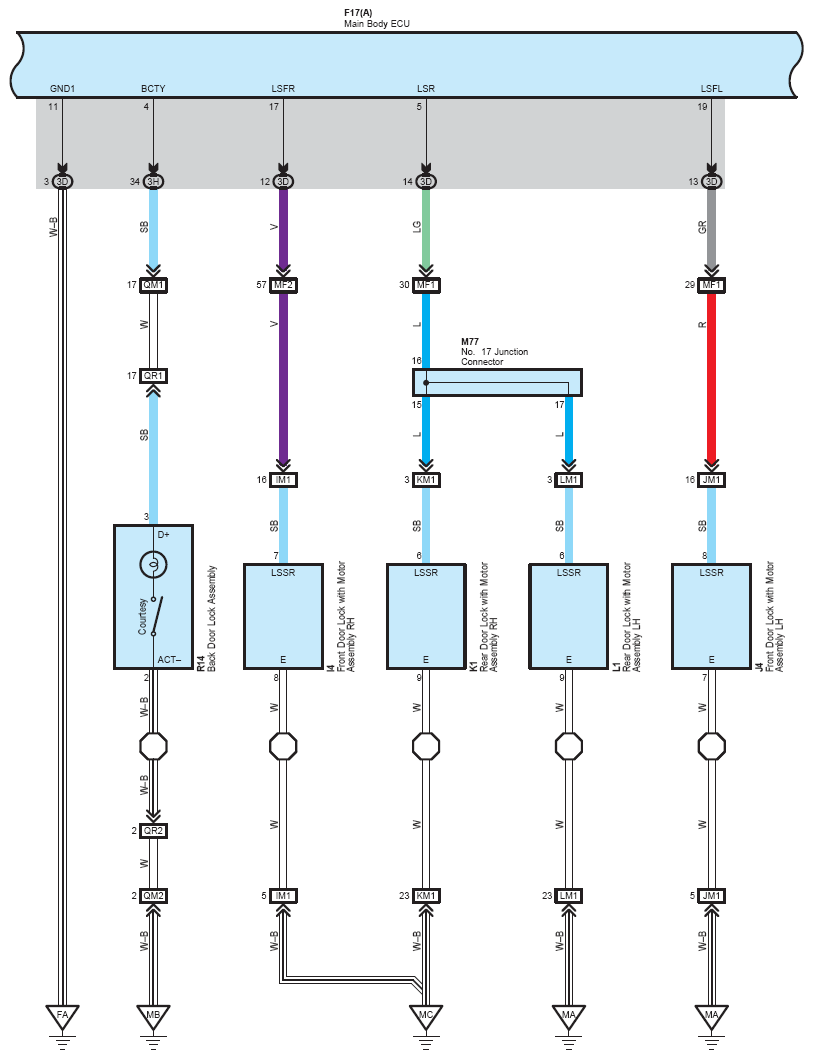

Fig 5: Interior Light (5 Of 6)
G12208317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

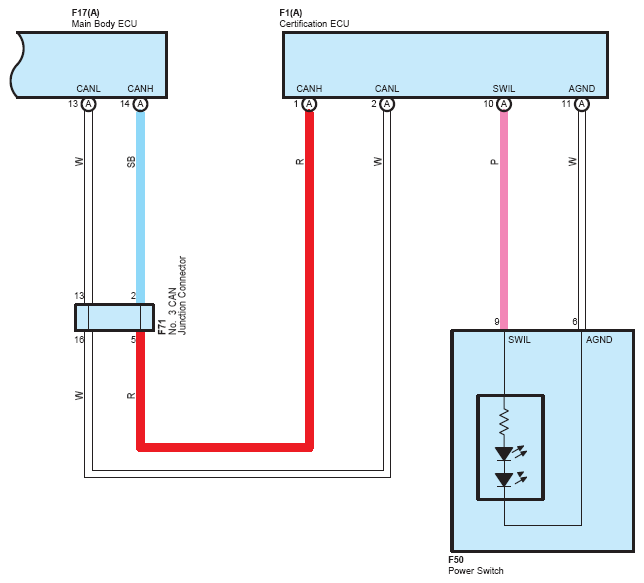

Fig 6: Interior Light (6 Of 6)
G12208318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
