System Diagrams

Fig 1: Power Window (1 Of 7)
G12208397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

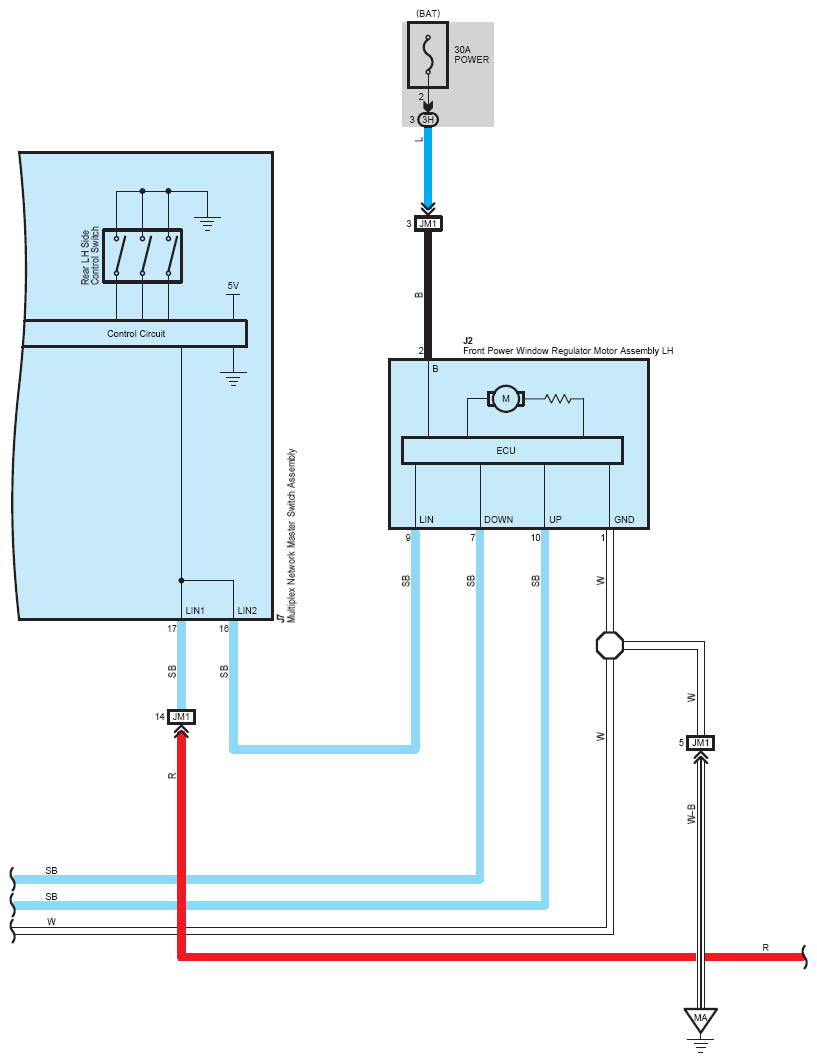

Fig 2: Power Window (2 Of 7)
G12208398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

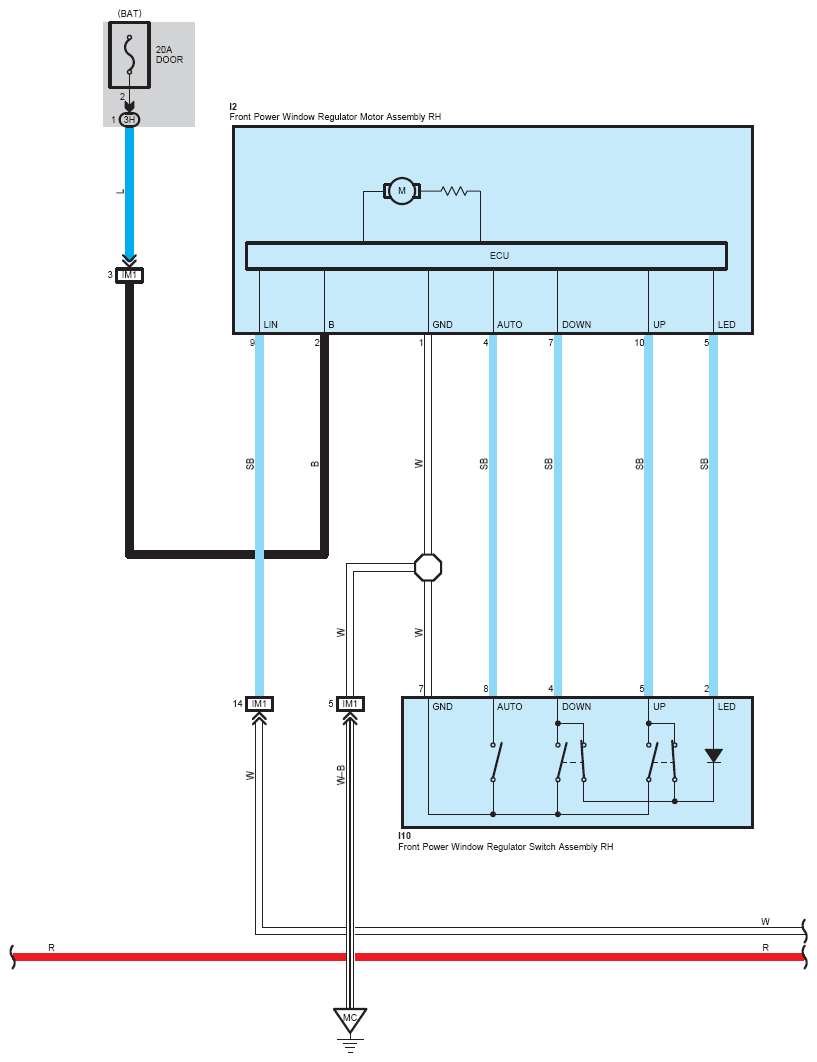

Fig 3: Power Window (3 Of 7)
G12208399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

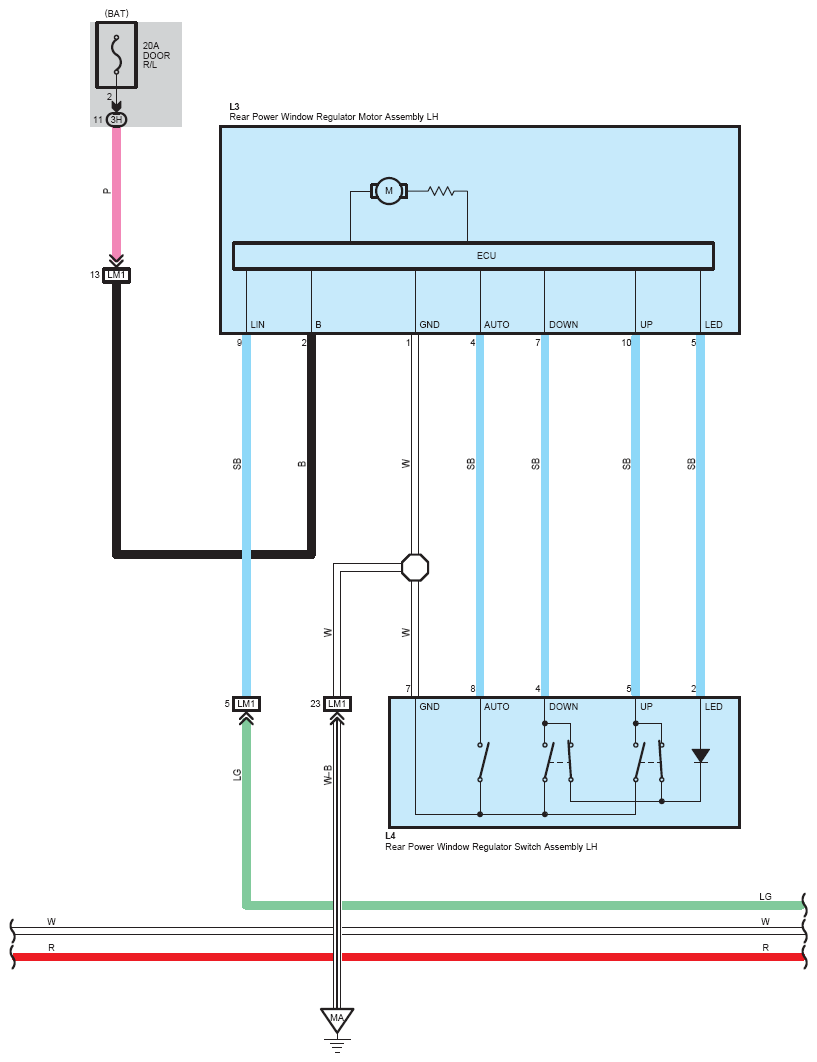

Fig 4: Power Window (4 Of 7)
G12208400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

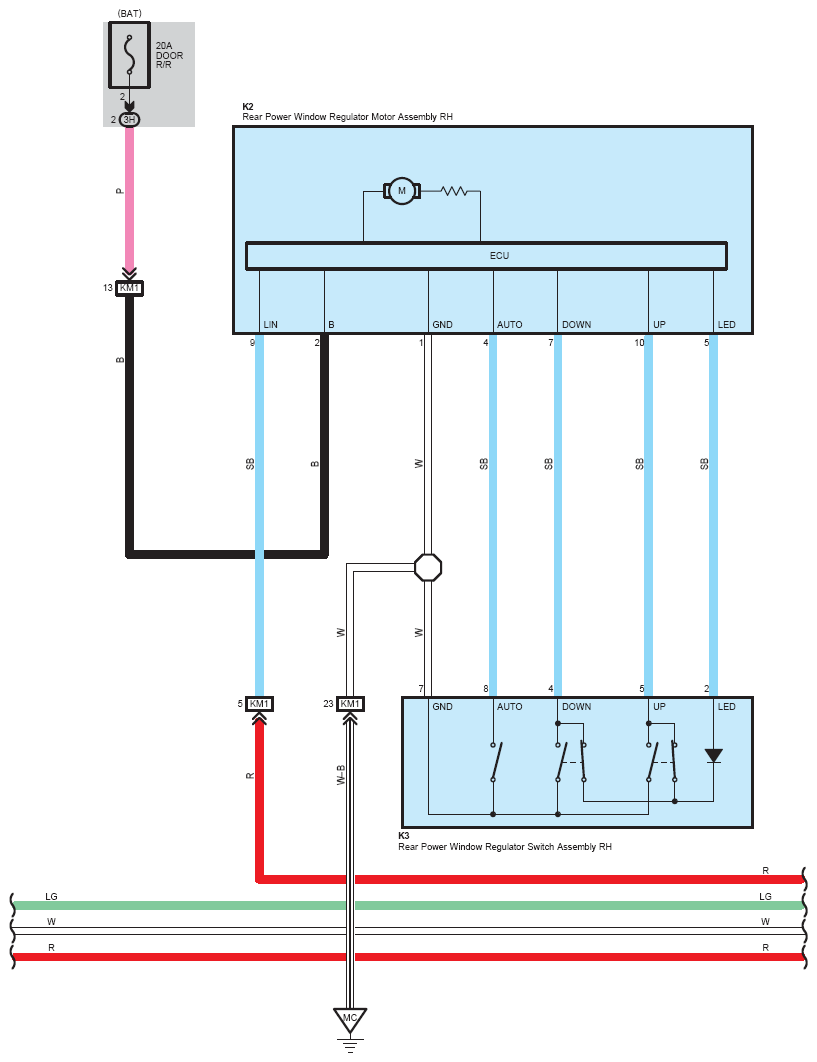

Fig 5: Power Window (5 Of 7)
G12208401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

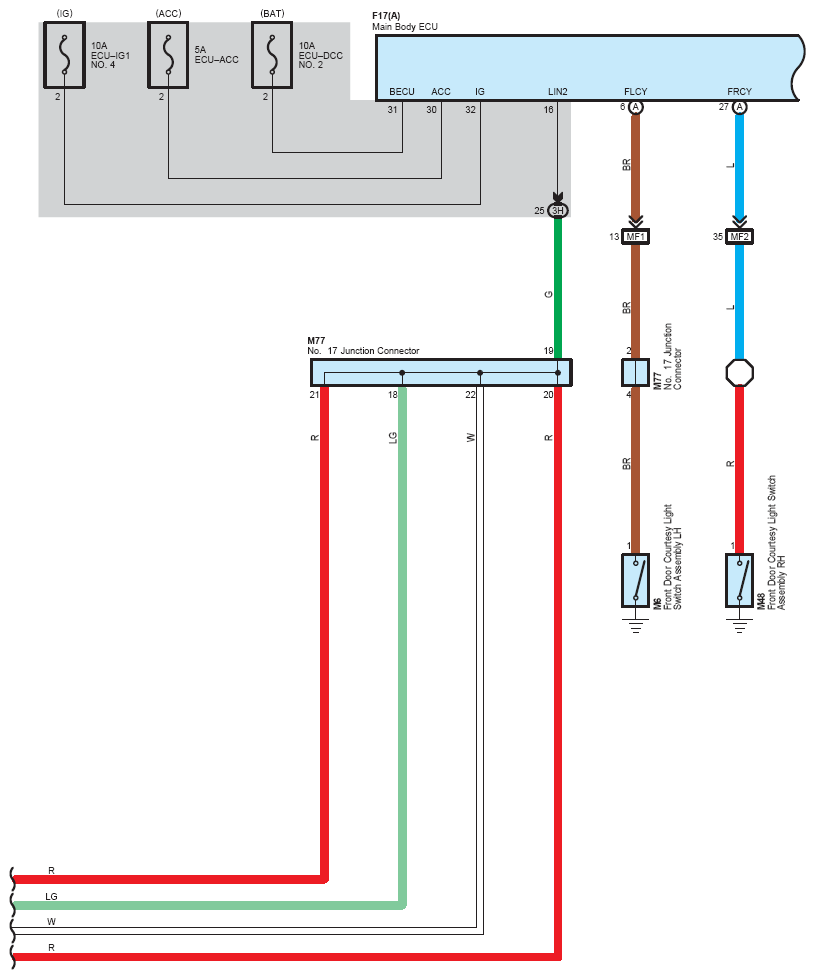

Fig 6: Power Window (6 Of 7)
G12208402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

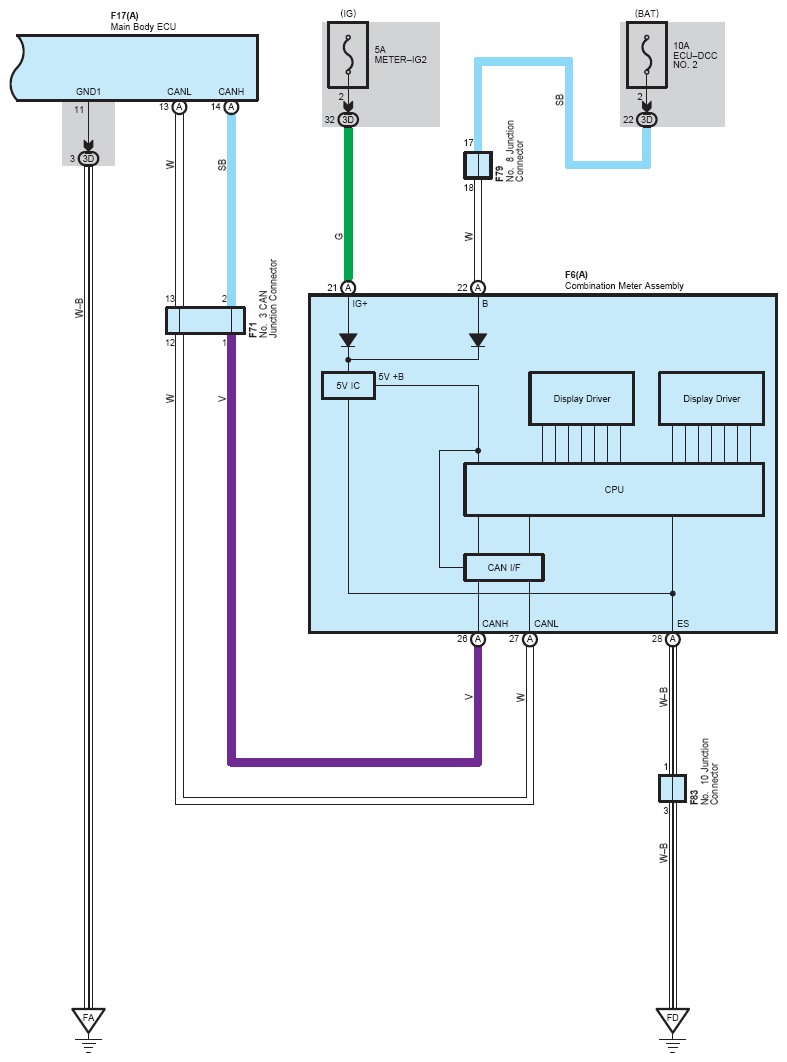

Fig 7: Power Window (7 Of 7)
G12208403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
