Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE OXYGEN SENSOR
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.

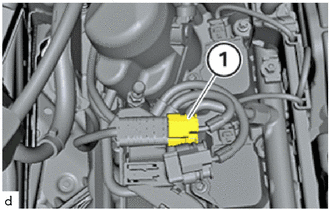

    1. Unlock plug connection (1) and disconnect.
      GTY946340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

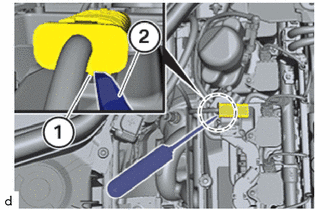

    2. Unlock the lock on the connector (1) with a suitable screwdriver (2).
      GTY945939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove connector (1).

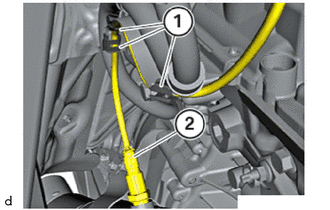

    4. Detach the line of the oxygen sensor (2) from the holder (1).
      GTY946334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

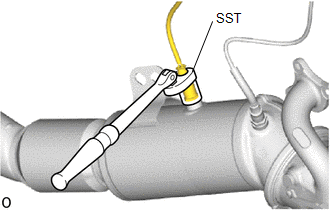

    5. Using SST, remove the oxygen sensor (1).
      GTY908887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00012
