Components [03/2019 - ]

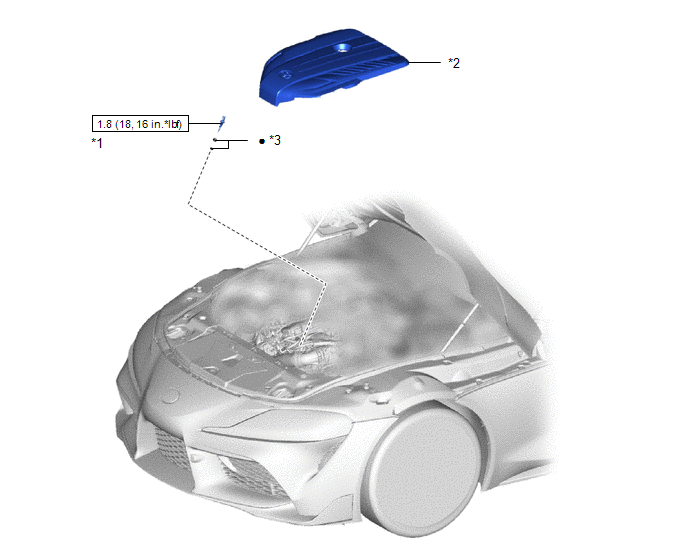

Fig 1: Intake Air Temperature Sensor Replacement Components With Torque Specifications [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INTAKE AIR TEMPERATURE SENSOR
*2
NO. 1 ENGINE COVER SUB-ASSEMBLY
*3
O-RING
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
•
Non-reusable part
