Components [03/2019 - ]

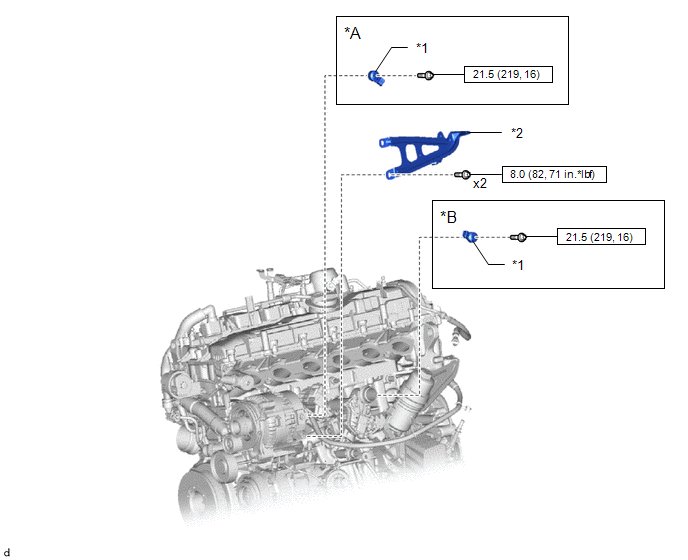

Fig 1: Knock Sensor Replacement Components With Torque Specifications [03/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
for Bank 1
*B
for Bank 2
*1
KNOCK SENSOR
*2
INTAKE MANIFOLD STAY
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
