Removal [08/2015 - ]: Procedure

  1. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 10

  2. REMOVE NO. 1 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 11

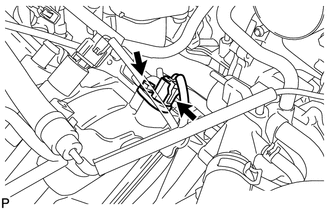

  3. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.
      GTY225785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.

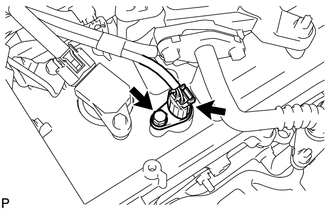

  4. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.
      GTY225784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.

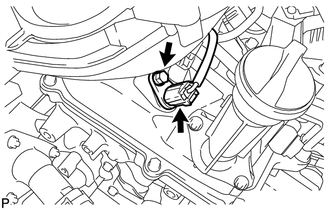

  5. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.
      GTY225783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.

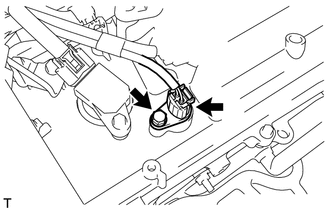

  6. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.
      GTY223398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
