Removal [08/2015 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the lower instrument panel (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2022] , or refer to REMOVAL [08/2022 - ] ).
  2. REMOVE ECM

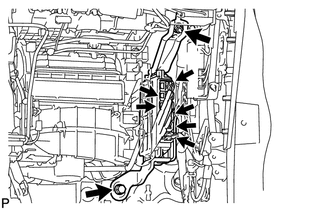

    GTY332894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 6 connectors.
    2. Remove the bolt, nut and ECM.
  3. REMOVE ECM BRACKET

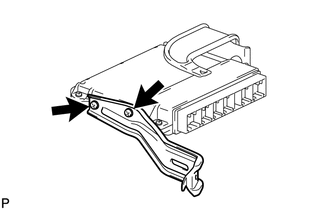

    GTY326387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and ECM bracket.
  4. REMOVE NO. 2 ECM BRACKET

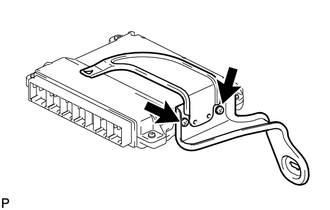

    GTY332892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws and No. 2 ECM bracket.
