Inspection [08/2015 - ]: Procedure

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

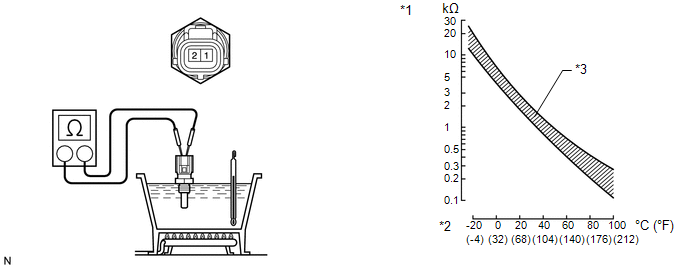

TEXT IN ILLUSTRATION

*1	Resistance	*2	Temperature
*3	Acceptable	-	-

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 2	Approx. 20°C (68°F)	2.32 to 2.59 kΩ
1 - 2	Approx. 80°C (176°F)	0.310 to 0.326 kΩ

If the result is not as specified, replace the sensor.

NOTE:

When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.
