Installation [08/2015 - ]: Procedure

1. Install the 6 spark plugs.

   Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

1. Install the 6 ignition coil assemblies with the 6 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Connect the 6 ignition coil connectors.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

1. Install the air cleaner cap and hose.

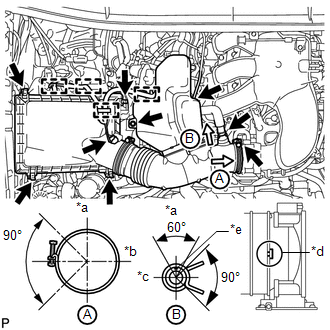

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Top
   *b	Front
   *c	RH
   *d	Align cutout portion of hose with protrusion of throttle
   *e	Paint Mark

   1. Install the air cleaner cap and hose with the bolt and fasten the 4 hook clamps.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

   2. Tighten the clamp.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

   3. Attach the 4 clamps and connect the ventilation hose, vacuum hose and mass air flow meter connector.

      HINT:

      The direction of the hose clamp is indicated in the illustration.

Refer to PROCEDURE - Step 14
